Why Choose the WAGO 750-491 Analogue Input Module?

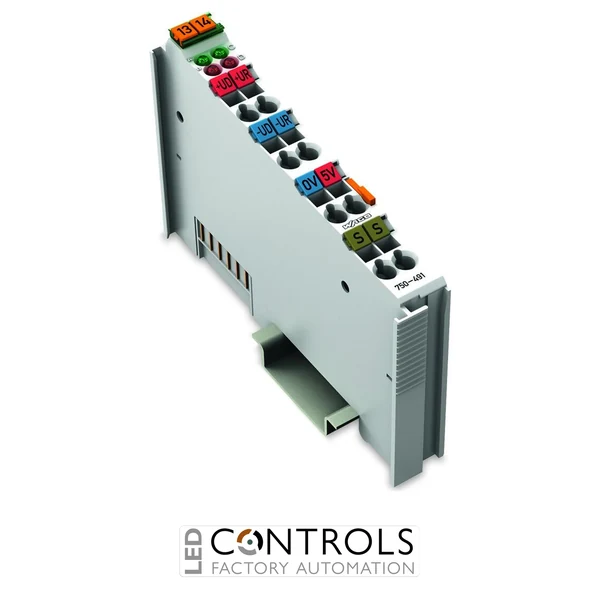

The WAGO 750-491 is a high-precision 2-channel analogue input module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to measure ±10 V analogue voltage signals from sensors, controllers and industrial instrumentation.
Each input channel captures voltage signals with high resolution, allowing automation systems to monitor process variables such as position, speed feedback, control voltages and other analogue measurements. The module converts these signals into digital data that can be processed by the automation controller.
Designed for distributed automation systems, the module integrates directly with WAGO fieldbus couplers and programmable controllers. Its compact DIN-rail housing and CAGE CLAMP® spring terminal technology provide reliable connections and quick installation within industrial control panels.
Key Advantages
- Reliable 2-channel analogue voltage input for automation systems.
- Supports ±10 V measurement signals.
- High-resolution analogue-to-digital conversion for precise monitoring.
- Seamless integration with WAGO 750 Series distributed I/O systems.
- Compact modular design for scalable automation architectures.
- Quick wiring using CAGE CLAMP® spring terminals.
Key Features
- 2 analogue input channels.
- Input signal type: voltage.
- Input range: ±10 V.
- Resolution: 12-bit analogue-to-digital conversion.
- High measurement accuracy for industrial monitoring.
- DIN-rail mounting for WAGO modular I/O systems.
- Compatible with WAGO fieldbus couplers and controllers.
Industrial Analogue Voltage Measurement
Analogue voltage signals such as ±10 V are widely used in industrial automation systems to represent continuous process variables and feedback signals. Sensors, controllers and motion systems often generate voltage signals that must be accurately measured by PLCs for monitoring and control.
The WAGO 750-491 module converts analogue voltage inputs into digital data for the automation controller. Combined with other modules in the WAGO 750 Series distributed I/O platform, it enables scalable control architectures across manufacturing, process automation and machine control systems.
Typical Applications
- Industrial automation and machine monitoring.
- Servo and motion control feedback signals.
- Analogue sensor and instrumentation monitoring.
- Process control measurement systems.
- Distributed PLC and remote I/O architectures.
