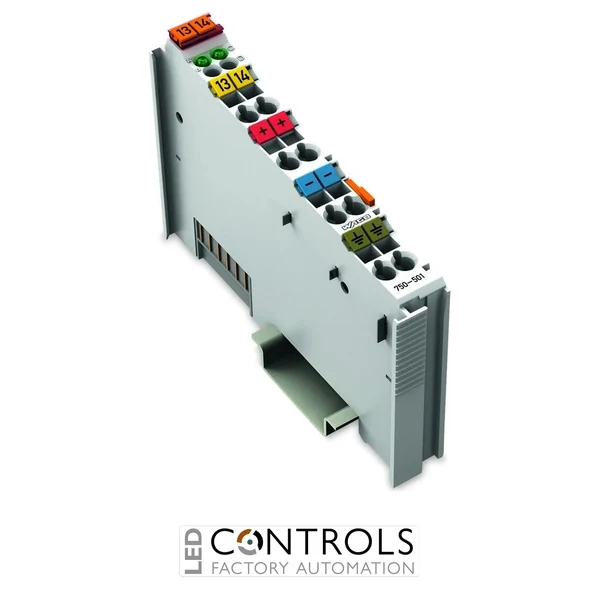

WAGO 750-501 digital output module with two 24 V DC outputs rated at 0.5 A for the WAGO 750 distributed I/O system.
£40.98
The WAGO 750-501 is a compact 2-channel digital output module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to transmit switching signals to field devices such as actuators, relays, lamps and solenoids in industrial automation systems.
Each output channel provides 24 V DC high-side switching with a maximum current of 0.5 A per channel. This allows reliable control of inductive, resistive and signalling loads commonly used in machine automation and process control applications. :contentReference
The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers to form flexible distributed automation architectures. Its compact housing and CAGE CLAMP® spring terminal connections ensure fast wiring and secure electrical connections within industrial control cabinets. :contentReference
Digital output modules are used in industrial automation systems to transmit switching commands from PLCs to field devices. These outputs control equipment such as indicator lights, relays, contactors, valves and actuators used throughout manufacturing and process installations.
The WAGO 750-501 converts digital control signals from the automation controller into switching signals that operate external devices. When combined with other modules in the WAGO 750 Series distributed I/O platform, it enables scalable and reliable machine automation architectures.
| Current | 0.5 A |
|---|---|
| IP Rating | IP20 |
| Series | WAGO I/O System 750 |
| Module type | Digital output module |
| Number of outputs | 2 digital channels |
| Output voltage | 24 V DC |
| Maximum output current | 0.5 A per channel |
| Switching frequency | up to 5 kHz |
| Isolation | 500 V system/field isolation |
| Supply voltage | 5 V DC via internal I/O bus |
| Connection technology | CAGE CLAMP® spring terminals |
| Mounting | 35 mm DIN rail |
| Module width | approx. 12 mm |
| Operating temperature | 0 °C to +55 °C |
| Ingress protection | IP20 |
| HS Code | 85371098 |
| Country of Manufacture | Germany |
The module provides two digital outputs that allow PLCs and automation controllers to switch external devices such as relays, lamps or actuators.
The outputs operate at 24 V DC, which is the standard control voltage used in industrial automation systems.
Each channel can switch loads up to approximately 0.5 A.
Yes. The outputs include electronic short-circuit protection to protect the module and connected devices.
The module is designed for the WAGO I/O System 750 and integrates with WAGO fieldbus couplers and programmable controllers.
WAGO 750 Series I/O modules are trusted worldwide by automation engineers and machine builders for creating reliable distributed control systems across manufacturing, energy and process automation environments.
