Why Choose the WAGO 750-508/000-800 Digital Output Module?

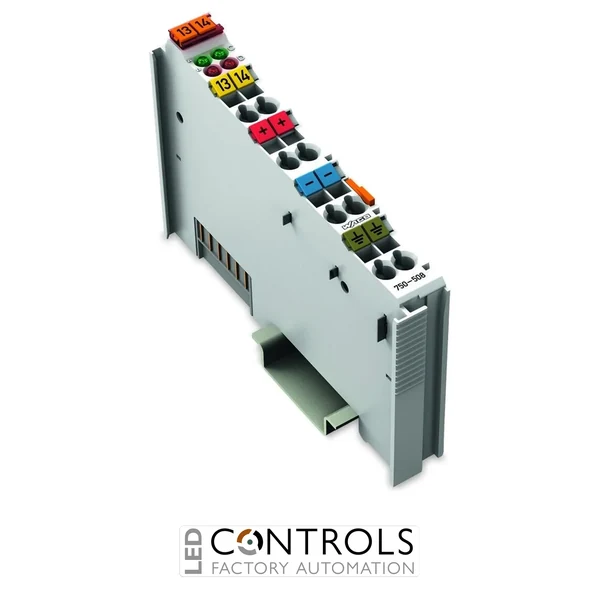

The WAGO 750-508/000-800 is a robust 2-channel digital output module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to transmit switching signals to field devices such as relays, solenoid valves, contactors and signalling lamps in distributed automation systems.
Each output channel provides 24 V DC high-side switching with a maximum switching current of 2 A per channel. The module includes integrated diagnostics capable of detecting overload, short circuit and wire break conditions, improving system reliability and enabling easier fault detection in industrial control systems. :contentReference
The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of the modular WAGO 750 distributed I/O platform. Its compact DIN rail design and CAGE CLAMP® spring terminal connections allow fast installation and secure wiring inside industrial control cabinets. :contentReference
Key Advantages
- 2 digital output channels for industrial control applications.
- 24 V DC outputs rated up to 2 A per channel.
- Integrated diagnostics detect overload, short circuit and wire break faults.
- High-side switching outputs suitable for industrial automation loads.
- Seamless integration with WAGO 750 Series distributed I/O systems.
- Fast installation using CAGE CLAMP® spring terminals.
Key Features
- 2 digital output channels.
- Output type: 24 V DC high-side switching.
- Maximum output current: 2 A per channel.
- Integrated diagnostics for fault monitoring.
- Short-circuit and overload protection.
- Status LEDs for output and error indication.
- Compatible with WAGO fieldbus couplers and programmable controllers.
Industrial Digital Output Control
Digital output modules provide the interface between PLC logic and field devices. They convert control signals from the automation controller into switching outputs that operate relays, valves, lamps and other actuators used throughout industrial automation systems.
The WAGO 750-508/000-800 provides reliable switching control with integrated diagnostics, enabling engineers to quickly detect wiring faults and device failures. When combined with other modules in the WAGO 750 Series distributed I/O platform, it supports scalable machine automation architectures and distributed control systems. :contentReference
Typical Applications
- PLC control of relays and contactors.
- Solenoid valve and actuator switching.
- Machine automation and production equipment.
- Industrial signalling and indicator devices.
- Distributed PLC and remote I/O architectures.
