Why Choose the WAGO 750-508/040-000 Digital Output Module?

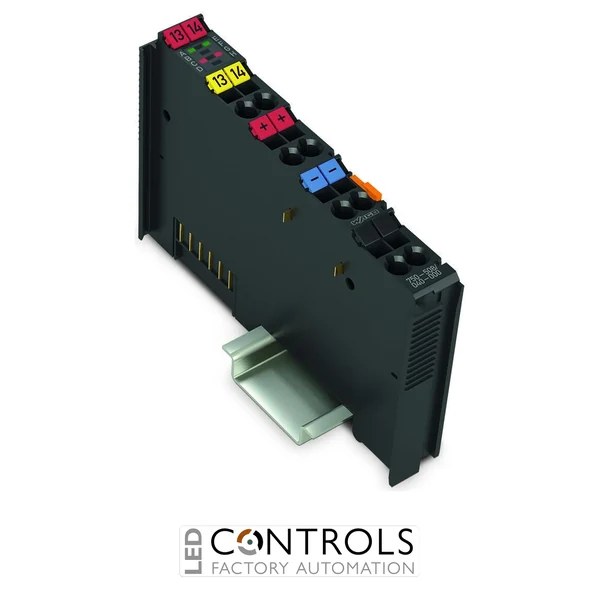

The WAGO 750-508/040-000 is a rugged 2-channel digital output module designed for the WAGO I/O System 750 XTR. It enables PLCs and industrial controllers to transmit switching commands to field devices such as relays, contactors, solenoid valves and signalling lamps within distributed automation systems.
Each output channel provides 24 V DC high-side switching with a maximum switching current of 2 A per channel. The module is equipped with integrated diagnostics that detect overload, short circuit and wire-break conditions, helping maintenance engineers quickly identify wiring faults or actuator failures. :contentReference
Part of the WAGO 750 XTR Series, this module is designed for extreme industrial environments with an extended operating temperature range and high resistance to vibration, humidity and electrical interference. It integrates seamlessly with WAGO fieldbus couplers and programmable controllers to build scalable distributed control architectures. :contentReference
Key Advantages
- 2 digital output channels for actuator and device control.
- 24 V DC outputs rated up to 2 A per channel.
- Integrated diagnostics detect overload, short circuit and wire-break faults.
- High-side switching outputs suitable for industrial loads.
- Designed for harsh environments with WAGO 750 XTR extreme protection.
- Fast installation using CAGE CLAMP® spring terminals.
Key Features
- 2 digital output channels.
- Output type: 24 V DC high-side switching.
- Maximum output current: 2 A per channel.
- Diagnostics: overload, short circuit and wire-break detection.
- Status LEDs for output and error indication.
- Supports 2-wire and 3-wire actuator connections.
- Compatible with WAGO fieldbus couplers and programmable controllers.
Industrial Digital Output Control
Digital output modules form the interface between PLC logic and physical field devices. They convert controller signals into switching outputs that operate relays, lamps, contactors and other actuators used throughout industrial automation systems.
The WAGO 750-508/040-000 combines reliable switching capability with advanced diagnostics and extended environmental protection. When integrated into the WAGO 750 Series distributed I/O platform, it enables engineers to build scalable and highly reliable control systems for demanding industrial environments. :contentReference
Typical Applications
- PLC control of relays and contactors.
- Solenoid valve and actuator switching.
- Machine automation and production equipment.
- Industrial signalling and indicator devices.
- Harsh industrial environments and outdoor installations.
