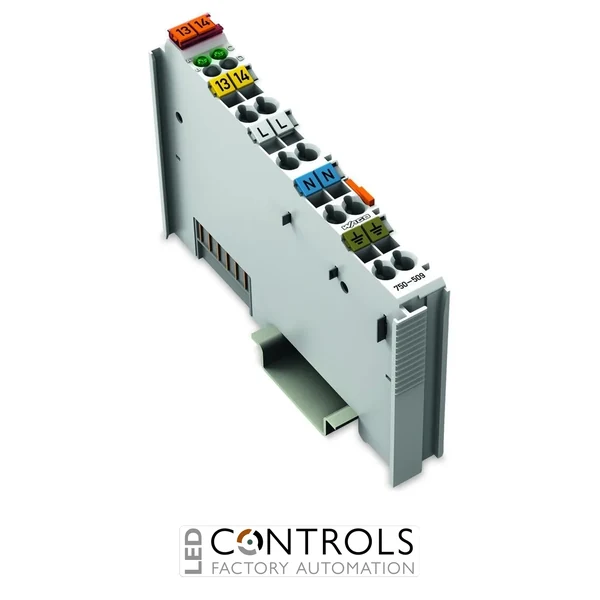

WAGO 750-509 digital output module with two solid-state outputs capable of switching 0–250 V AC/DC loads up to 0.3 A for the WAGO 750 distributed I/O system.
£83.44
The WAGO 750-509 is a dependable 2-channel digital output module designed for the WAGO I/O System 750. It enables PLCs and automation controllers to switch high-voltage field devices such as relays, contactors, lamps and actuators within industrial automation systems.
Unlike standard 24 V control outputs, this module is designed for AC/DC loads up to 230 V. Each channel uses a solid-state output relay capable of switching loads up to 0.3 A, making it suitable for controlling mains-powered devices or higher-voltage signalling circuits. :contentReference
The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of the flexible WAGO 750 distributed I/O architecture. Its compact DIN rail housing and CAGE CLAMP® spring terminal technology allow fast installation and secure wiring within industrial control cabinets.
Industrial automation systems often require switching of mains-powered devices or higher-voltage control circuits. Modules such as the WAGO 750-509 allow PLCs to control these loads safely by isolating the controller electronics from the field voltage.
By using solid-state switching technology, the module provides reliable and fast switching without mechanical contacts, improving durability and reducing maintenance requirements. Integrated status LEDs allow engineers to quickly verify switching states during operation. :contentReference
| Current | 0.3 A |
|---|---|
| Voltage | 230 V |
| IP Rating | IP20 |
| Series | WAGO I/O System 750 |
| Module type | Digital output module |
| Number of outputs | 2 digital channels |
| Output voltage | 0…250 V AC/DC |
| Output current | 0.3 A per channel |
| Output design | Solid-state load relay |
| Isolation | Field to system isolation up to approx. 1500 VAC |
| System supply voltage | 5 V DC via internal I/O bus |
| Connection technology | CAGE CLAMP® spring terminals |
| Mounting | 35 mm DIN rail |
| Module width | approx. 12 mm |
| Operating temperature | 0 °C to +55 °C |
| Ingress protection | IP20 |
| HS Code | 85371098 |
| Country of Manufacture | Germany |
The module provides two digital outputs that allow PLCs and automation controllers to switch high-voltage devices such as lamps, relays or actuators.
The outputs can switch loads between 0 and 250 V AC or DC.
Each output channel can switch loads up to approximately 0.3 A.
The module uses solid-state relay outputs, providing reliable switching without mechanical contacts.
The module is designed for the WAGO I/O System 750 and works with WAGO fieldbus couplers and programmable controllers.
WAGO 750 Series I/O modules are widely used by automation engineers and system integrators to build reliable distributed control systems across manufacturing, infrastructure and process automation environments.
