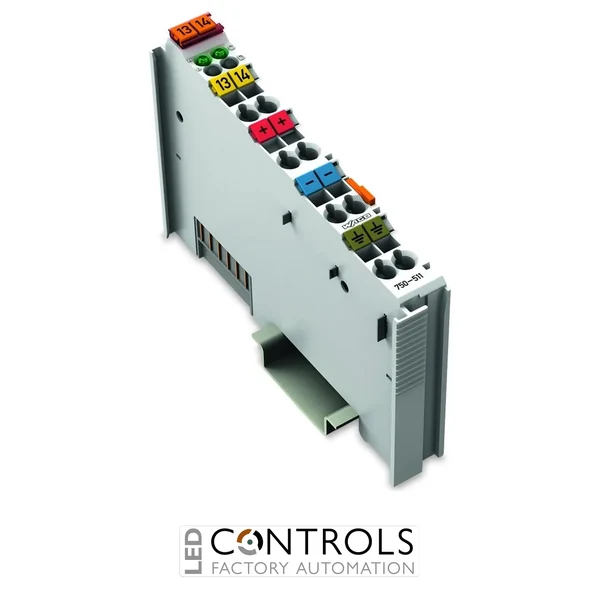

WAGO 750-511 pulse width output module with two PWM outputs, 24 V DC supply and 0.1 A per channel for the WAGO 750 distributed I/O system.
£205.09
The WAGO 750-511 is a specialised 2-channel pulse width output (PWM) module designed for the WAGO I/O System 750. It converts digital control values from a PLC or controller into pulse width modulated 24 V DC output signals, enabling precise control of actuators, motors, valves and lighting systems in industrial automation environments.
Each channel provides PWM output with a configurable duty cycle, allowing accurate modulation of devices such as DC motor speed controllers, proportional valves and dimmable lighting systems. The module supports a pulse frequency of approximately 250 Hz with a duty cycle range from 0 to 100 %. :contentReference
The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers within the WAGO 750 modular I/O architecture. Its compact DIN-rail housing and CAGE CLAMP® spring terminal technology allow fast installation and reliable wiring within industrial control cabinets.
Pulse width modulation (PWM) is widely used in industrial automation to control analogue-like behaviour using digital outputs. By adjusting the duty cycle of the signal, controllers can regulate speed, position or intensity in actuators and electronic devices.
The WAGO 750-511 allows PLC systems to generate PWM signals directly from the distributed I/O system. This enables precise control of devices such as DC motors, proportional valves, heating elements and dimmable lighting systems without requiring separate analogue control hardware. :contentReference
| Current | 0.1 A |
|---|---|
| IP Rating | IP20 |
| Series | WAGO I/O System 750 |
| Module type | Pulse width output module (PWM) |
| Number of outputs | 2 channels |
| Output voltage | 24 V DC |
| Output current | 0.1 A per channel |
| Pulse frequency | approx. 250 Hz |
| Duty cycle | 0 – 100 % |
| Resolution | 10-bit PWM |
| Data width | 2 × 16-bit output values |
| Isolation | 500 V system/field isolation |
| System supply voltage | 5 V DC via internal I/O bus |
| Field supply voltage | 24 V DC (−15% to +20%) |
| Connection technology | CAGE CLAMP® spring terminals |
| Mounting | 35 mm DIN rail |
| Module width | approx. 12 mm |
| Operating temperature | 0 °C to +55 °C |
| Ingress protection | IP20 |
| HS Code | 85371098 |
| Country of Manufacture | Germany |
The module converts digital control values from a PLC into pulse width modulated signals that can control motors, valves or other devices requiring PWM control.
The module provides two independent PWM output channels.
The outputs operate at 24 V DC.
Each channel can supply up to approximately 0.1 A.
The module is designed for the WAGO I/O System 750 and works with WAGO fieldbus couplers and programmable controllers.
WAGO 750 Series I/O modules are widely used by automation engineers and system integrators to build reliable distributed control systems across manufacturing, infrastructure and process automation industries.
