Why Choose the WAGO 750-535 Digital Output Module?

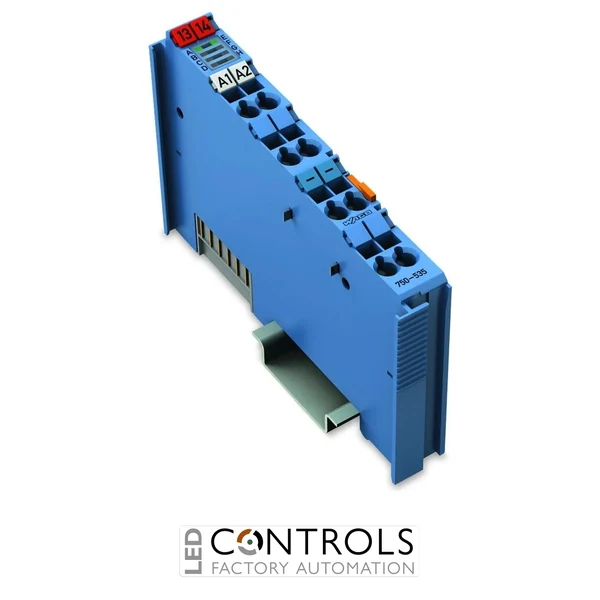

The WAGO 750-535 is a robust 8-channel digital output module designed for integration with the WAGO I/O System 750 and 753 distributed automation platform. It allows PLCs and fieldbus controllers to reliably switch industrial devices such as relays, solenoids, contactors and signalling equipment within modern automation systems.
Each output channel delivers 24 V DC switching with up to 0.5 A output current, making the module suitable for controlling a wide range of standard industrial loads. With its compact 12 mm housing, the module supports high I/O density while maintaining efficient cabinet layout and reliable thermal performance.
The module uses WAGO’s proven CAGE CLAMP® spring pressure connection technology, enabling fast wiring, secure conductor retention and vibration-resistant connections. This technology ensures long-term reliability in demanding industrial environments and simplifies installation for machine builders and automation engineers.
Key Advantages
- 8 digital output channels for industrial control applications.
- 24 V DC switching outputs for standard automation loads.
- 0.5 A output current per channel for PLC-controlled devices.
- Compact 12 mm module width for high-density I/O installations.
- CAGE CLAMP® spring pressure terminals for fast and secure wiring.
- Fully compatible with the WAGO I/O System 750 and 753.
Key Features
- 8-channel digital output module.
- 24 V DC output voltage.
- 0.5 A maximum output current per channel.
- High-side switching outputs.
- Integrated short-circuit protection.
- Compact 12 mm DIN rail module.
- CAGE CLAMP® spring terminals.
- Designed for the WAGO distributed I/O system architecture.
Reliable Distributed Automation with WAGO I/O
The WAGO I/O System 750/753 is a modular distributed automation platform widely used in machine control, process automation and factory systems. Its flexible architecture allows digital, analogue and communication modules to be combined to build scalable automation solutions.
Digital output modules such as the 750-535 are responsible for switching signals from PLC controllers to field devices. Their compact design, dependable switching performance and reliable connection technology make them ideal for industrial automation environments.
Typical Applications
- Industrial automation control panels.
- PLC-based machine control systems.
- Distributed I/O architectures.
- Driving relays, solenoids and contactors.
- Production lines and manufacturing equipment.
- Packaging, robotics and material handling systems.
