Why Choose the WAGO 750-550 Relay Output Module?

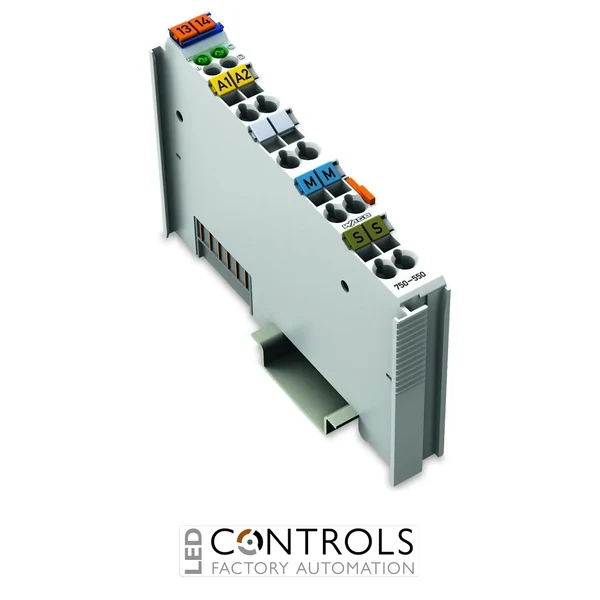

The WAGO 750-550 is a versatile 2-channel relay output module designed for integration with the WAGO I/O System 750 and 753 distributed automation platform. It enables PLCs and fieldbus controllers to switch electrical loads using mechanical relay contacts, making it suitable for controlling AC and DC devices across industrial automation systems.
Each channel features a potential-free relay contact capable of switching a wide range of loads, including higher voltage AC circuits and DC control devices. This flexibility allows the module to interface between low-voltage PLC signals and external equipment such as motors, solenoid valves, alarm systems and signalling devices.
With its compact 12 mm module width, the 750-550 allows efficient use of cabinet space while maintaining the reliability expected from the WAGO I/O platform. The module incorporates WAGO’s proven CAGE CLAMP® spring pressure connection technology, ensuring fast installation, vibration resistance and maintenance-free wiring in industrial environments.
Key Advantages
- 2 relay output channels for switching AC or DC loads.
- Potential-free relay contacts for flexible automation applications.
- Suitable for interfacing PLC signals with higher voltage circuits.
- Compact 12 mm module width for high-density I/O systems.
- CAGE CLAMP® spring pressure terminals for secure wiring.
- Fully compatible with the WAGO I/O System 750 and 753.
Key Features
- 2-channel relay output module.
- Potential-free switching contacts.
- Suitable for AC and DC loads.
- Mechanical relay outputs for electrical isolation.
- Compact 12 mm DIN rail module.
- CAGE CLAMP® spring connection technology.
- Integrated within the WAGO distributed I/O architecture.
- Designed for industrial control and automation systems.
Reliable Distributed Automation with WAGO I/O
The WAGO I/O System 750/753 is widely used in machine control, process automation and building automation systems. Its modular architecture allows digital, analogue and communication modules to be combined to create scalable and flexible control platforms.
Relay output modules such as the 750-550 are ideal for applications where electrical isolation or switching of higher voltage loads is required. By using mechanical relay contacts, the module provides a flexible interface between low-voltage PLC control signals and external field devices.
Typical Applications
- Industrial automation control systems.
- PLC-controlled relay switching.
- Switching AC loads and higher voltage circuits.
- Machine control and process automation.
- Alarm systems and signalling devices.
- Building automation and facility control systems.
