Why Choose the WAGO 750-560 Relay Output Module?

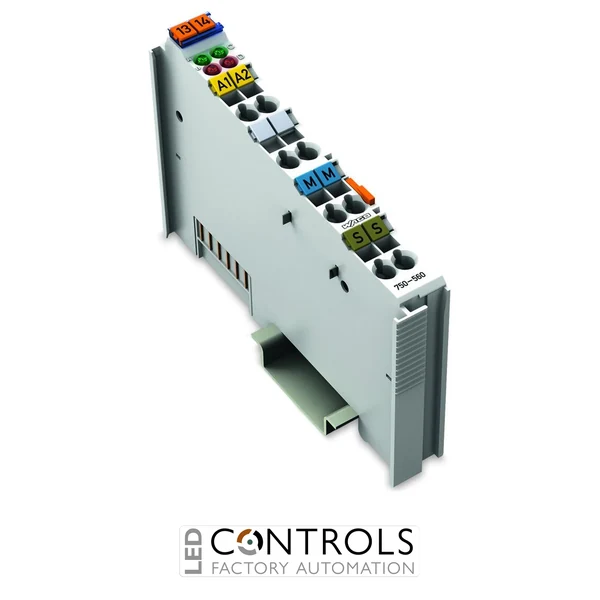

The WAGO 750-560 is a reliable 8-channel relay output module designed for the WAGO I/O System 750 and 753 distributed automation platform. It allows PLCs and fieldbus controllers to switch AC or DC loads through mechanical relay contacts, providing a dependable interface between low-voltage control signals and external electrical circuits.
Each channel provides a potential-free relay contact, enabling safe control of equipment such as contactors, motors, solenoid valves, pumps, alarms and signalling devices. This capability makes the module ideal for industrial automation systems, machine control installations and building management applications requiring reliable switching of electrical loads.
The module features a compact DIN rail housing that integrates easily into distributed I/O stations and control cabinets. WAGO’s proven CAGE CLAMP® spring pressure connection technology ensures fast wiring, secure connections and vibration-resistant performance for long-term reliability in demanding industrial environments.
Key Advantages
- 8 relay output channels for switching multiple field devices.
- Potential-free relay contacts suitable for AC and DC switching.
- Provides galvanic isolation between PLC control electronics and external loads.
- Compact DIN rail module for efficient control cabinet layouts.
- CAGE CLAMP® spring pressure terminals for fast and secure wiring.
- Fully compatible with the WAGO I/O System 750 and 753.
Key Features
- 8-channel relay output module.
- Potential-free relay contacts.
- Mechanical relay switching for AC and DC loads.
- Electrical isolation between control and field circuits.
- DIN rail mounting for industrial control cabinets.
- CAGE CLAMP® spring connection technology.
- Part of the WAGO distributed I/O system architecture.
- Designed for machine automation and building control systems.
Reliable Distributed Automation with WAGO I/O
The WAGO I/O System 750/753 is widely used in distributed control architectures for machine automation, industrial production systems and building management installations. Its modular design allows digital, analogue and communication modules to be combined to create scalable automation solutions.
Relay output modules such as the 750-560 provide a dependable interface for switching higher voltage loads and isolating PLC electronics from field equipment. Mechanical relay contacts ensure safe and reliable operation across industrial automation systems.
Typical Applications
- Industrial automation control systems.
- PLC-controlled relay switching.
- Machine control and manufacturing equipment.
- Switching AC loads and higher voltage circuits.
- Alarm and signalling devices.
- Building automation and facility management systems.
