Why Choose the WAGO 750-597 Analog Output Module?

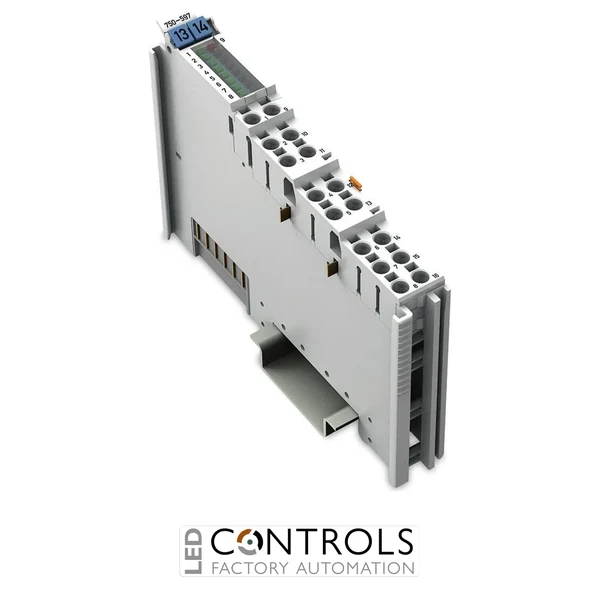

The WAGO 750-597 is a high-performance 8-channel analogue output module designed for integration within the WAGO I/O System 750 and 753 distributed automation platform. It converts digital control signals from PLCs or fieldbus controllers into precise 0–10 V or ±10 V analogue voltage outputs, enabling accurate control of actuators, drives and process instrumentation.
Each of the eight output channels delivers a stable analogue voltage signal suitable for industrial control applications. The module features electrically isolated outputs and a high-resolution conversion process, ensuring accurate signal transmission and reliable operation within modern automation systems. :contentReference
Designed for modular distributed control systems, the 750-597 installs easily on a standard 35 mm DIN rail and connects to other modules through the WAGO system bus. WAGO’s CAGE CLAMP® spring pressure connection technology enables fast wiring, vibration-resistant terminals and dependable performance in demanding industrial environments.
Key Advantages
- 8 analogue output channels for flexible process control.
- Supports 0–10 V and ±10 V analogue voltage signals.
- 12-bit resolution for precise signal conversion.
- Electrical isolation between system electronics and field circuits.
- Seamless integration with the WAGO I/O System 750 and 753.
- CAGE CLAMP® spring terminals for quick, maintenance-free wiring.
Key Features
- 8-channel analogue voltage output module.
- Output signal range: 0–10 V or ±10 V DC.
- 12-bit output resolution for accurate analogue control.
- Typical conversion time: approx. 13 ms.
- Status LEDs for operational diagnostics.
- 2-wire actuator connection for each channel.
- DIN rail mounting for industrial control cabinets.
- Part of the modular WAGO distributed I/O architecture.
Precision Voltage Control in Industrial Automation
Voltage-based analogue signals such as 0–10 V are widely used to control variable speed drives, actuators and analogue instrumentation. Modules like the WAGO 750-597 allow PLC controllers to generate stable voltage outputs that regulate equipment across industrial production lines and process automation systems.
Combined with WAGO controllers or fieldbus couplers, the module forms part of a scalable distributed automation system that supports machine control, energy management and process monitoring installations.
Typical Applications
- Industrial process automation systems.
- Control of variable speed drives and actuators.
- PLC-based analogue voltage control.
- Instrumentation and process equipment regulation.
- Energy management and building automation.
