Why Choose the WAGO 750-614 Potential Distribution Module?

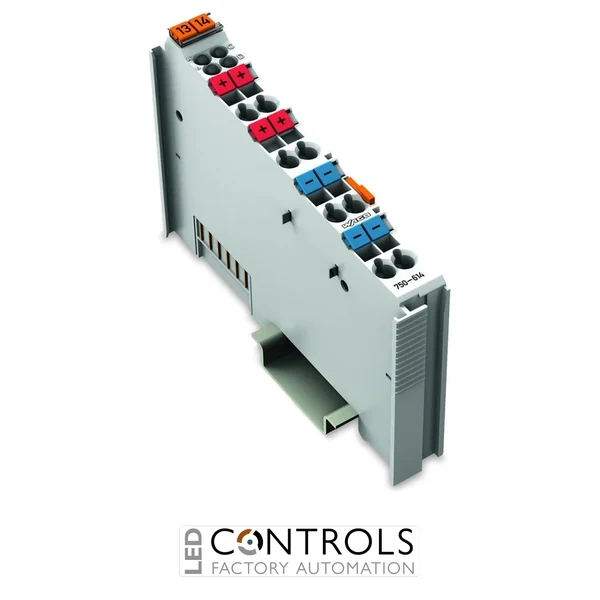

The WAGO 750-614 is a compact potential distribution module designed for the WAGO I/O System 750 and 753. It enables multiple tapping points for field-side supply voltage, allowing engineers to distribute power efficiently to sensors, actuators and automation devices within distributed control systems.
Part of the WAGO automation product range, the module simplifies wiring by eliminating the need for additional DIN rail terminal blocks. By integrating power distribution directly within the modular I/O assembly, it reduces panel space requirements and improves installation efficiency.
The module supports AC/DC voltages up to 230 V and distributes power through integrated power jumper contacts. With multiple CAGE CLAMP terminals, it provides flexible field wiring connections while maintaining reliable electrical continuity across the I/O system. :contentReference
Key Advantages
- Provides multiple tapping points for field supply voltage.
- Supports AC/DC voltages up to 230 V.
- Eliminates the need for additional DIN rail terminal blocks.
- Compact design saves valuable control cabinet space.
- Reliable wiring using WAGO CAGE CLAMP spring terminals.
- Fully compatible with WAGO I/O System 750 and 753.
Key Features
- Potential distribution module for WAGO I/O systems.
- Voltage range: 0 to 230 V AC/DC.
- Power jumper contact capacity: up to 10 A.
- 8 field supply terminals for multiple wiring connections.
- CAGE CLAMP spring terminals for secure wiring.
- DIN-35 rail mounting within modular automation nodes.
- Compact 12 mm module width for high-density installations.
Industrial Automation Power Distribution
Distributed I/O systems often require multiple connection points for field-side power supplies used by sensors, actuators and output modules. Potential distribution modules provide an efficient way to distribute voltage within the automation node without installing additional terminal blocks.
The WAGO 750-614 enables engineers to connect multiple devices to a single supply source while maintaining a clean and organised control cabinet layout. Its integrated jumper contacts distribute power across the I/O assembly while providing additional wiring points for field devices. :contentReference
Typical Applications
- Distributed PLC and fieldbus I/O systems.
- Industrial machine control panels.
- Factory automation and manufacturing equipment.
- Sensor and actuator power distribution.
- Control cabinets requiring compact power distribution solutions.
