WAGO 750-630/000-004 SSI transmitter interface module for connecting 24-bit SSI encoders to WAGO I/O System 750 and 753 automation platforms.
£310.10

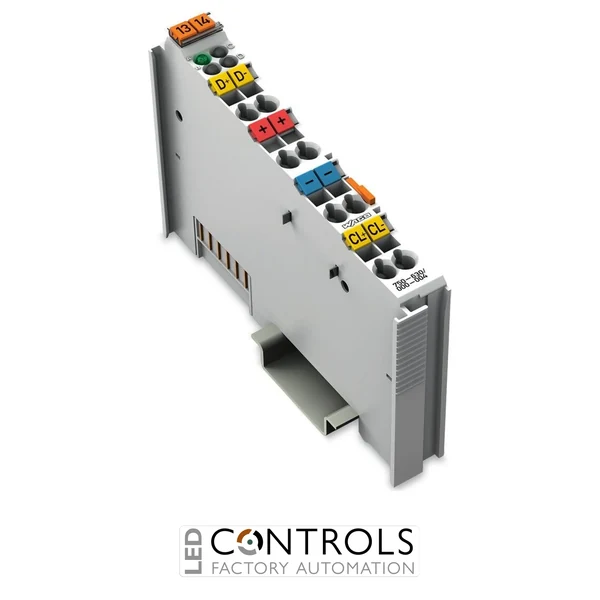

The WAGO 750-630/000-004 is an SSI transmitter interface module designed for the WAGO I/O System 750 and 753. It enables direct connection of SSI (Synchronous Serial Interface) encoders and transmitters to distributed PLC and industrial control systems.
The module generates the clock signal required by the SSI sensor, reads the incoming serial data and transfers the resulting position data directly to the process image of the PLC or industrial PC. This allows high-precision measurement devices such as rotary encoders and linear position sensors to be integrated into modular automation systems. :contentReference
Supporting 24-bit data width and transmission speeds up to 125 kHz, the module is suitable for high-resolution encoder applications. The differential RS-422 signal interface ensures reliable data communication even in electrically noisy industrial environments. :contentReference
Position encoders and absolute transmitters are widely used in automation systems to measure machine position, speed and movement. These sensors provide critical feedback for motion control, robotics and precision manufacturing processes.
The WAGO 750-630/000-004 allows SSI-based sensors to be integrated directly into modular distributed I/O systems. The module generates the necessary clock signal, receives the serial data from the encoder and transfers the measured values into the PLC process image for real-time control and monitoring. :contentReference
| Voltage | 24 V |
|---|---|
| IP Rating | IP20 |
| Series | WAGO I/O System 750 / 753 |
| Module type | SSI transmitter interface |
| Signal interface | Differential RS-422 |
| Data width | 24 bits |
| Transmission speed | up to 125 kHz |
| Code format | Gray code |
| Sensor supply voltage | 24 V DC via power jumper contacts |
| System supply voltage | 5 V DC via internal data contacts |
| Connection technology | CAGE CLAMP spring terminals |
| Wire cross section | 0.08 to 2.5 mm² (AWG 28–14) |
| Mounting type | DIN-35 rail |
| Module width | 12 mm |
| Operating temperature | 0 °C to +55 °C |
| Ingress protection | IP20 |
| HS Code | 85389099 |
| Country of Manufacture | Germany |
The module connects SSI encoders or transmitters to WAGO distributed I/O systems, allowing position data to be read directly by the PLC.
The module supports sensors with Synchronous Serial Interface (SSI) outputs, such as rotary encoders and linear position transmitters.
The module supports SSI communication speeds of up to 125 kHz.
The interface supports 24-bit encoder data using Gray code transmission.
The module is designed for the WAGO I/O System 750 and 753 modular automation platforms.
WAGO I/O System 750 interface modules are widely used by automation engineers to integrate field sensors, encoders and industrial devices into modern PLC-based control systems.
