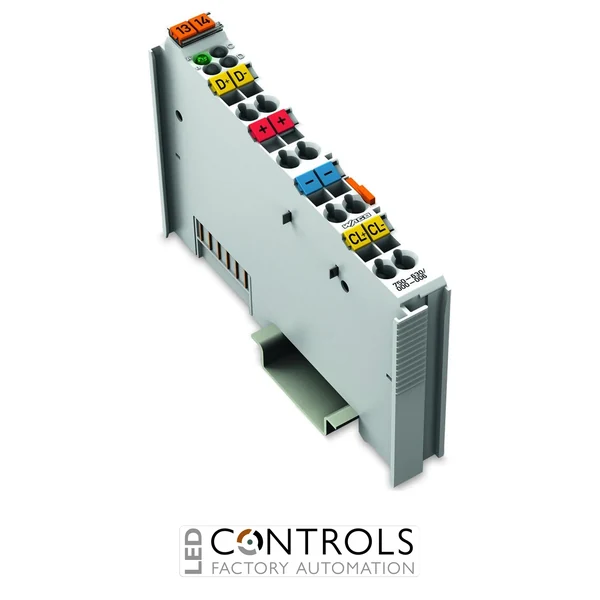

WAGO 750-630/000-006 SSI transmitter interface module with 24-bit data width and 250 kHz communication for integrating SSI encoders into WAGO I/O System 750 and 753 automation platforms.
£310.10
The WAGO 750-630/000-006 is an advanced SSI transmitter interface module designed for the WAGO I/O System 750 and 753. It enables direct connection of Synchronous Serial Interface (SSI) encoders and transmitters to PLC-based automation systems, allowing precise position and measurement data to be transferred to the control system in real time.
The module generates the clock signal required by the SSI device and reads the serial data returned by the sensor. This data is then transferred directly into the process image of the PLC or industrial PC, enabling seamless integration of absolute encoders and linear position sensors within distributed automation architectures. :contentReference
Supporting 24-bit data width and transmission speeds up to 250 kHz, the module delivers fast and reliable encoder data acquisition. Communication uses a differential RS-422 interface, ensuring stable operation even in electrically noisy industrial environments. :contentReference
Absolute encoders and SSI transmitters are widely used in motion control, robotics and precision manufacturing systems to measure position and movement. These sensors provide accurate feedback for machine control, safety systems and automated production processes.
The WAGO 750-630/000-006 enables direct integration of SSI sensors into modular distributed I/O systems. By generating the necessary clock pulses and reading the serial encoder data, the module ensures precise measurement data is transmitted to the control system for monitoring and control. :contentReference
| Voltage | 24 V |
|---|---|
| IP Rating | IP20 |
| Series | WAGO I/O System 750 / 753 |
| Module type | SSI transmitter interface |
| Encoder connection | +D / −D data inputs, +CL / −CL clock outputs |
| Signal interface | Differential RS-422 |
| Data width | 24 bits |
| Transmission rate | up to 250 kHz |
| Code format | Gray code |
| Sensor supply voltage | 24 V DC via power jumper contacts |
| System supply voltage | 5 V DC via data contacts |
| Isolation | 500 V between system and field supply |
| Connection technology | CAGE CLAMP spring terminals |
| Wire cross section | approx. 0.08 to 2.5 mm² (AWG 28–14) |
| Mounting type | DIN-35 rail |
| Module width | 12 mm |
| Operating temperature | 0 °C to +55 °C |
| Ingress protection | IP20 |
| HS Code | 85389099 |
| Country of Manufacture | Germany |
The module connects SSI encoders or transmitters to WAGO distributed I/O systems, enabling position data to be read directly by the PLC.
The module supports sensors with a Synchronous Serial Interface (SSI) output, including absolute rotary encoders and linear position transmitters.
The module supports SSI communication speeds of up to 250 kHz.
The interface uses differential RS-422 signalling to ensure reliable communication in industrial environments.
The module is designed for the WAGO I/O System 750 and 753 distributed automation platforms.
WAGO I/O System 750 interface modules are widely used by automation engineers to integrate encoders, sensors and field devices into modern PLC-based control systems.
