Why Choose the WAGO 750-631/000-004 Incremental Encoder Interface?

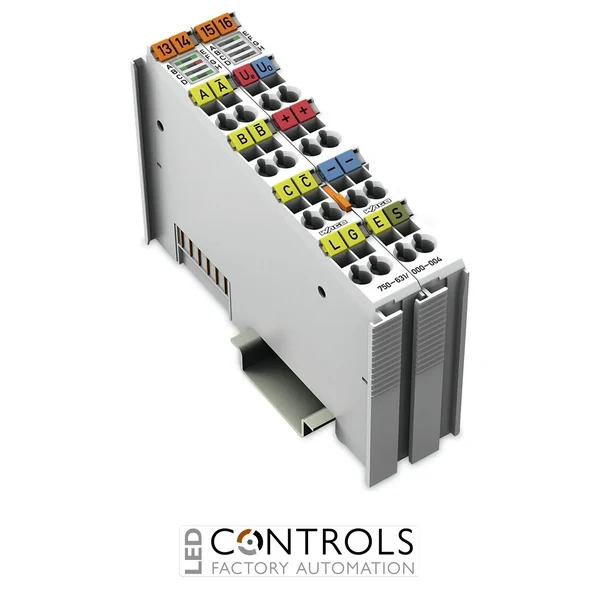

The WAGO 750-631/000-004 is an incremental encoder interface module designed for the WAGO I/O System 750 and 753. It enables direct integration of incremental encoders with RS-422 differential outputs into PLC-based automation systems, allowing precise position and speed measurement within distributed control architectures.
The module reads the encoder signals A/A̅, B/B̅ and C/C̅ and processes them through a 16-bit quadrature counter. This allows accurate tracking of motion, rotation and position changes. The measured count values are transmitted directly via the fieldbus to the PLC, industrial PC or motion controller for real-time monitoring and control. :contentReference
Designed for high-speed motion applications, the module supports encoder input frequencies of up to 1 MHz and provides a 16-bit latch for the zero impulse. This ensures precise capture of reference positions in automation systems such as CNC machinery, robotics and packaging equipment. :contentReference
Key Advantages
- Direct interface for incremental encoders with RS-422 outputs.
- 16-bit quadrature counter for accurate position measurement.
- Supports encoder signals A/B/C with differential inputs.
- 1 MHz maximum input frequency for high-speed applications.
- Reliable data transfer from encoder to PLC via the fieldbus.
- Compact DIN-rail I/O module compatible with WAGO modular systems.
Key Features
- Incremental encoder interface for distributed automation systems.
- RS-422 differential encoder input (A/A̅, B/B̅, C/C̅).
- 16-bit binary counter with quadrature decoding.
- Zero impulse latch for precise reference positioning.
- Gate input for counter lock-out control.
- 5 V encoder supply output for connected sensors.
- CAGE CLAMP spring terminals for vibration-resistant wiring.
High-Speed Motion Feedback for Automation Systems
Incremental encoders are widely used in industrial automation to measure speed, direction and position of moving components. These sensors provide real-time feedback for robotics, CNC systems, conveyor lines and precision manufacturing equipment.
The WAGO 750-631/000-004 allows these encoder signals to be integrated directly into modular distributed I/O systems. By processing quadrature signals and transmitting the counter values to the PLC, the module enables accurate motion control and synchronisation across industrial machinery. :contentReference
Typical Applications
- Motion control and servo systems.
- Industrial robotics and automated machinery.
- CNC machines and positioning systems.
- Conveyor and material handling equipment.
- Packaging and production automation.
