Why Choose the WAGO 750-631/000-011 Incremental Encoder Interface?

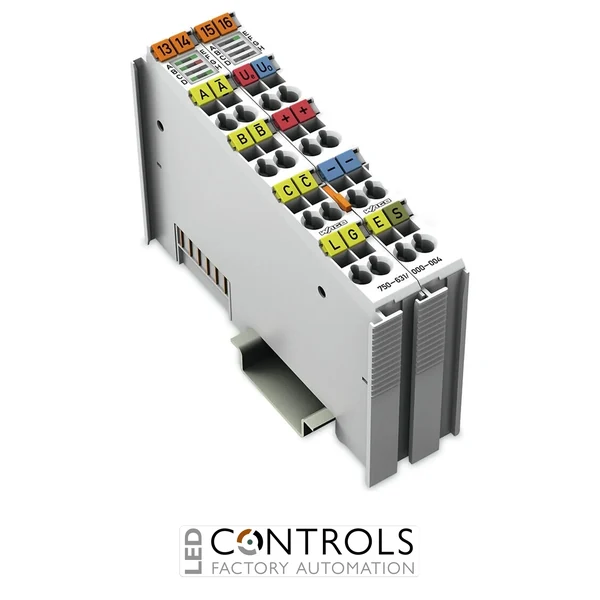

The WAGO 750-631/000-011 is a high-precision incremental encoder interface module designed for the WAGO I/O System 750 and 753. It enables direct connection of incremental encoders to distributed PLC automation systems, allowing accurate measurement of position, speed and direction within industrial motion control applications.
The module reads encoder signals A/A̅, B/B̅ and C/C̅ and processes them using a quadrature decoder and 16-bit counter. The resulting count values are transmitted rapidly via the fieldbus to the PLC, industrial PC or NC controller, enabling real-time motion monitoring and control in high-performance automation systems. :contentReference
Designed for reliable industrial operation, the interface supports encoder frequencies up to 1 MHz and includes a 16-bit latch for the zero impulse. This allows precise reference position detection and synchronisation in demanding applications such as robotics, CNC machinery and automated production equipment. :contentReference
Key Advantages
- Direct interface for incremental encoders in PLC automation systems.
- 16-bit quadrature counter for precise position tracking.
- Supports differential encoder signals A/A̅, B/B̅ and C/C̅.
- 1 MHz maximum encoder input frequency for high-speed motion control.
- Reliable real-time transmission of encoder data to the PLC.
- Fully compatible with WAGO I/O System 750 and 753 modular I/O platforms.
Key Features
- Incremental encoder interface module for distributed automation systems.
- RS-422 differential encoder inputs.
- 16-bit counter depth with quadrature decoding.
- Zero impulse latch for accurate reference positioning.
- Gate input for counter lock-out functionality.
- Integrated encoder power supply derived from the module power contacts.
- CAGE CLAMP spring terminals for vibration-resistant industrial wiring.
High-Speed Motion Feedback for Automation Systems
Incremental encoders are widely used across industrial automation systems to measure machine movement, speed and position. These sensors provide critical feedback for robotics, CNC machines, servo drives and precision manufacturing equipment.
The WAGO 750-631/000-011 integrates encoder signals directly into distributed I/O architectures. By processing quadrature signals and transmitting counter values to the PLC, the module ensures accurate motion feedback for industrial control and monitoring systems. :contentReference
Typical Applications
- Motion control and servo drive systems.
- Industrial robotics and automated machinery.
- CNC machines and positioning systems.
- Conveyor and material handling equipment.
- Packaging and automated production lines.
