Why Choose the WAGO 750-637/040-001 Incremental Encoder Interface?

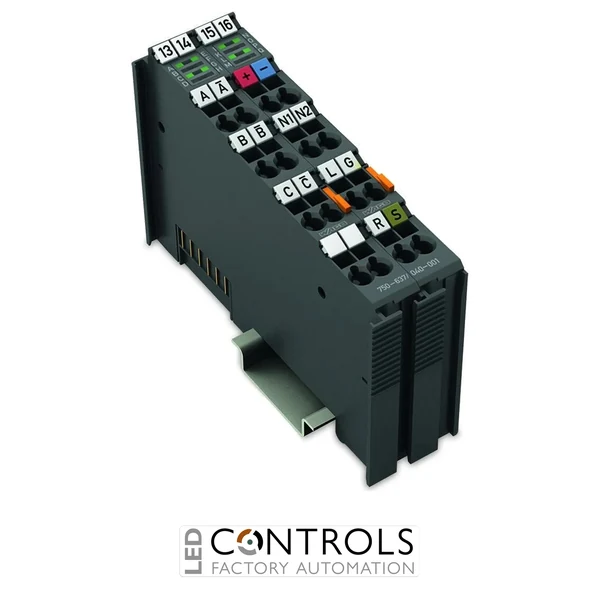

The WAGO 750-637/040-001 is a rugged incremental encoder interface module designed for precise motion feedback in demanding industrial environments. As part of the WAGO I/O System 750 XTR, this module enables PLC and controller systems to read encoder signals and convert them into accurate position and speed data for machine control and automation systems.
The module supports differential encoder signals (e.g. RS-422) and includes a high-resolution 32-bit quadrature counter. This allows controllers to monitor position, latch values and calculate speed directly from encoder pulses, enabling reliable control of moving machinery components. :contentReference
Designed for harsh industrial conditions, the XTR version operates across extended temperature ranges and offers enhanced environmental resilience. This makes it suitable for installations exposed to vibration, temperature extremes and demanding factory conditions.
Key Advantages
- High-precision incremental encoder interface for motion feedback.
- Supports RS-422 differential encoder signals.
- 32-bit counter with quadrature decoding for accurate position tracking.
- Extended temperature range with WAGO 750 XTR rugged design.
- Compatible with WAGO I/O System 750 controllers and fieldbus couplers.
- Reliable CAGE CLAMP® spring connection technology.
Key Features
- Incremental encoder interface module.
- 24 V DC encoder supply.
- Differential encoder inputs (A, /A, B, /B, C, /C).
- 32-bit quadrature counter with 4-fold evaluation.
- Gate, Latch and Reference inputs for counter control.
- Cam outputs N1 and N2 for position-dependent switching.
- High-speed signal processing up to approx. 250 kHz.
- Extended temperature operation for harsh industrial environments.
Encoder Feedback in Industrial Automation
Incremental encoders are widely used in industrial automation systems to measure position, rotational speed and movement of mechanical components. Encoder interface modules such as the WAGO 750-637/040-001 process encoder signals and provide accurate position information to PLC controllers, enabling precise monitoring and motion control.
The integrated quadrature decoder evaluates encoder signals offset by 90 degrees, allowing the controller to determine direction and movement increments. This makes the module suitable for advanced machine control applications requiring reliable position tracking and speed monitoring. :contentReference
Typical Applications
- Position monitoring in automated machinery.
- Encoder feedback for motor drives and motion control systems.
- Conveyor speed monitoring and synchronisation.
- Robotics and automated handling systems.
- Packaging and manufacturing equipment automation.
