Why Choose the WAGO 750-637 Incremental Encoder Interface?

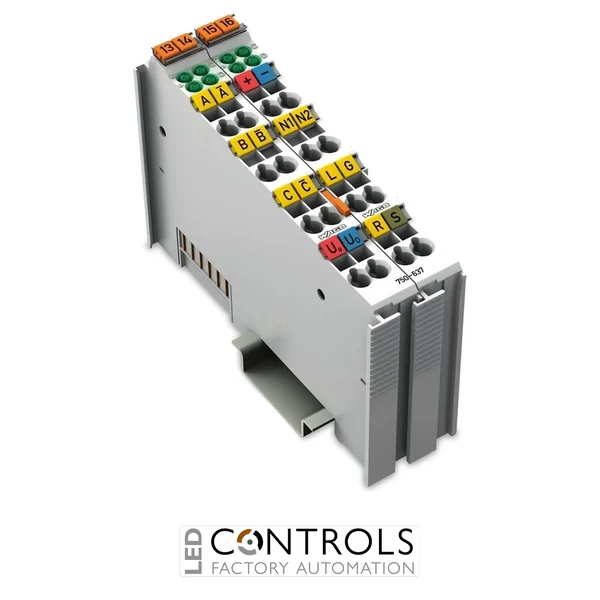

The WAGO 750-637 is a specialised incremental encoder interface module designed for integration within the WAGO I/O System 750. It enables PLC and controller systems to capture precise position and speed data from incremental encoders used in industrial automation and motion control applications.
The module supports standard encoder signal formats including RS-422 differential encoder signals, providing reliable signal processing and accurate position measurement within automated machines and positioning systems. Its integrated 32-bit counter with quadrature decoding allows high-resolution monitoring of encoder pulses for precise motion control and feedback. :contentReference
By connecting incremental encoders directly to the WAGO fieldbus node, the 750-637 allows control systems to monitor rotation, speed and position without requiring separate motion hardware. This makes it an efficient solution for machinery, conveyor systems and positioning mechanisms used across modern industrial automation installations.
Key Advantages
- Direct incremental encoder interface for WAGO I/O System 750.
- Supports RS-422 differential encoder signals for reliable data acquisition.
- Integrated 32-bit counter with quadrature decoding for accurate position tracking.
- Captures encoder speed and pulse frequency for motion monitoring.
- Modular DIN rail installation within WAGO fieldbus I/O nodes.
- Maintenance-free CAGE CLAMP® spring connection technology.
Key Features
- Incremental encoder interface module.
- 32-bit counter resolution.
- Supports RS-422 differential encoder inputs.
- Quadrature decoder for encoder signal processing.
- Latch input for zero impulse detection.
- Additional Gate and Reference inputs for control functions.
- Status LED indicators for diagnostics.
- Designed for integration with the WAGO I/O System 750.
Encoder Feedback for Industrial Motion Systems
Incremental encoders are widely used in industrial machinery to provide feedback on motor rotation, axis position and system speed. Encoder interface modules such as the WAGO 750-637 allow PLC systems to read these signals directly, enabling precise positioning and monitoring of moving equipment.
By processing quadrature encoder signals and maintaining a high-resolution counter value, the module enables control systems to track position and velocity accurately. This capability is essential for applications such as automated conveyors, packaging machines, robotic systems and positioning drives. :contentReference
Typical Applications
- Position feedback for automated machinery.
- Encoder monitoring for motor drives and positioning systems.
- Conveyor speed measurement.
- Industrial robotics and automated handling equipment.
- Packaging, assembly and production machinery.
