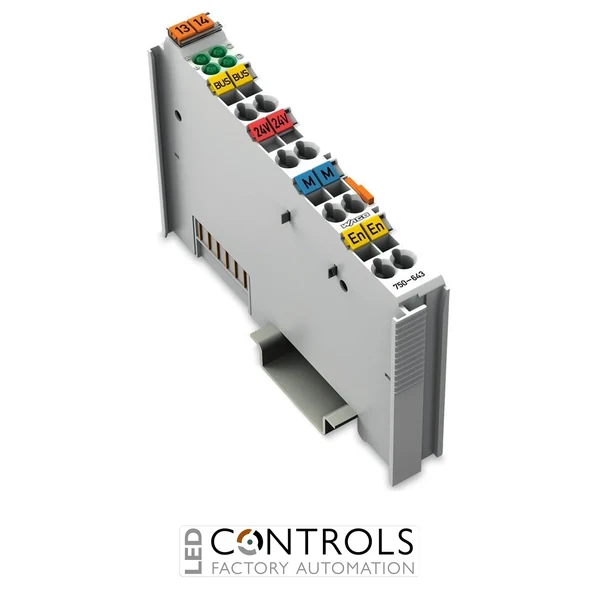

WAGO 750-643 MP-Bus master module for WAGO I/O System 750 enabling integration of Belimo MP-Bus actuators and sensors into PLC automation systems.
£257.12
The WAGO 750-643 is a specialised MP-Bus master communication module designed for integration within the WAGO I/O System 750. It enables PLC and controller systems to connect directly to MP-Bus devices such as HVAC actuators and sensors used in building automation and environmental control systems.
The module acts as the master for the Belimo MP-Bus (Multi-Point Bus), allowing MP-Bus networks to be integrated into higher-level automation systems such as Ethernet-based or fieldbus control platforms. This allows centralised monitoring and control of HVAC components including dampers, valve actuators and variable air volume (VAV) systems. :contentReference
A single MP-Bus line can connect multiple actuators and sensors, significantly reducing wiring complexity while maintaining reliable communication between field devices and the control system.
The MP-Bus protocol is widely used in HVAC and building automation systems to connect actuators, sensors and controllers on a single communication line. Using a master-slave architecture, devices such as damper actuators, valve regulators and ventilation controllers can communicate with a central control system.
The WAGO 750-643 module enables these MP-Bus devices to be integrated directly into distributed PLC architectures, allowing building automation systems to be managed alongside industrial control processes within a single control platform. :contentReference
| Voltage | 24 V |
|---|---|
| IP Rating | IP20 |
| Series | I/O System 750 |
| Module type | MP-Bus master communication module |
| Bus protocol | Belimo MP-Bus (PP/MP specification) |
| Maximum slaves | 8 MP-Bus devices |
| Sensor support | 1 sensor per actuator |
| MP-Bus supply voltage | 24 V DC |
| System supply voltage | 5 V DC via internal system bus |
| Current consumption | approx. 25 mA (MP-Bus) |
| Isolation | approx. 500 V between MP-Bus and system bus |
| Connection technology | WAGO CAGE CLAMP® |
| Mounting | DIN-35 rail |
| Protection rating | IP20 |
| Operating temperature | 0 to 55 °C |
| Module width | approx. 12 mm |
| HS Code | 85389099 |
| Country of Manufacture | Germany |
The module acts as an MP-Bus master that connects Belimo actuators and sensors to a WAGO PLC or automation system.
The module can manage up to 8 MP-Bus slave devices on a single bus network.
Typical devices include damper actuators, valve actuators and VAV controllers used in HVAC systems.
Yes. Each actuator connected via MP-Bus can also provide access to a connected sensor such as temperature or humidity.
The module integrates with WAGO I/O System 750 fieldbus couplers and programmable controllers.
WAGO I/O System 750 modules are widely used in industrial and building automation projects to integrate HVAC devices, sensors and control systems within scalable PLC architectures.
