Why Choose the WAGO 750-650/000-001 RS-232 Serial Interface Module?

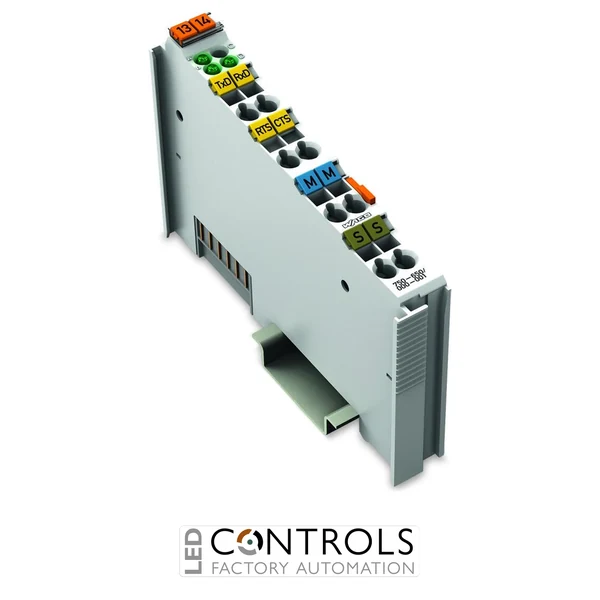

The WAGO 750-650/000-001 is a compact RS-232 serial communication interface module designed for integration within the WAGO I/O System 750. It allows PLCs and automation controllers to exchange data with devices using a standard RS-232 interface such as barcode scanners, printers, measurement equipment and legacy industrial controllers.
The module supports full-duplex serial communication and conforms to established standards including TIA/EIA-F and CCITT V.28. This ensures compatibility with a wide range of serial equipment used in industrial automation, laboratory instrumentation and factory data collection systems.
Installed directly on a DIN rail within a WAGO fieldbus node, the module enables serial devices to be integrated seamlessly into distributed control architectures without requiring external gateways or converters.
Key Advantages
- Reliable RS-232 serial interface for automation systems.
- Allows PLC communication with serial instruments and legacy devices.
- Full-duplex communication for simultaneous transmit and receive.
- Electrical isolation between system and field signals.
- Compact module for WAGO I/O System 750.
- Maintenance-free wiring with CAGE CLAMP® spring terminals.
Key Features
- RS-232 serial communication interface.
- Full-duplex communication channel (TxD / RxD).
- Configurable serial communication parameters.
- Supports baud rates up to approximately 115.2 kBd.
- Input and output buffers for reliable data transfer.
- Integrated LED indicators for communication status.
- Designed for integration with WAGO I/O System 750 controllers.
- Compact DIN rail mounting for modular automation systems.
Serial Communication in Industrial Automation
Despite the growth of Ethernet-based industrial networks, RS-232 communication is still widely used for connecting specialised instruments and legacy industrial equipment. Devices such as barcode scanners, weighing systems, diagnostic tools and laboratory analysers frequently use serial interfaces for reliable data exchange.
The WAGO 750-650/000-001 allows these devices to be integrated directly into PLC automation systems. By transferring serial data through the fieldbus controller, engineers can connect serial equipment to modern control platforms and centralise monitoring within industrial automation networks.
Typical Applications
- Connecting barcode scanners and printers.
- Integrating weighing systems and measurement instruments.
- Communication with legacy RS-232 industrial equipment.
- Factory data acquisition systems.
- Industrial diagnostics and monitoring systems.
