Why Choose the WAGO 750-650/000-010 RS-232 Serial Interface Module?

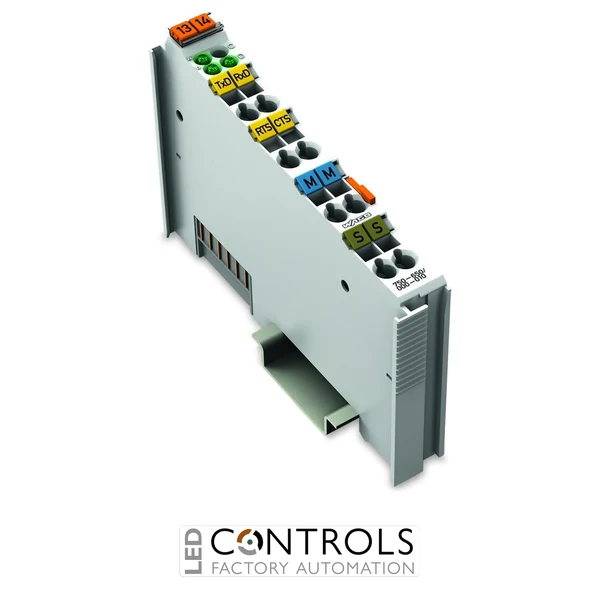

The WAGO 750-650/000-010 is a robust RS-232 serial communication interface module designed for seamless integration within the WAGO I/O System 750. It allows PLC controllers and industrial automation systems to communicate directly with devices that use standard RS-232 interfaces such as barcode scanners, printers, measuring instruments and laboratory equipment.
The module provides reliable full-duplex serial communication, ensuring simultaneous transmission and reception of data between the control system and connected devices. By integrating RS-232 communication directly into a modular WAGO I/O node, engineers can incorporate serial devices into modern fieldbus and Ethernet-based automation architectures without requiring separate communication gateways.
Designed for industrial reliability, the interface provides electrical isolation and stable signal handling, making it suitable for factory automation, production monitoring and data acquisition systems.
Key Advantages
- Reliable RS-232 serial interface for industrial automation.
- Allows PLC communication with serial instruments and legacy devices.
- Full-duplex communication for simultaneous data transmission and reception.
- Electrical isolation between field signals and system bus.
- Compact module for WAGO I/O System 750 nodes.
- Maintenance-free wiring using CAGE CLAMP® spring terminals.
Key Features
- RS-232 serial communication interface.
- Full-duplex TxD/RxD communication channel.
- Supports baud rates up to approximately 115.2 kBd.
- Configurable communication parameters (data bits, parity, stop bits).
- Integrated input and output buffers for reliable data transfer.
- Status LEDs for transmit, receive and module diagnostics.
- Direct integration with WAGO I/O System 750 controllers.
- Compact DIN rail installation within modular automation systems.
Serial Communication in Industrial Automation
Many industrial devices still rely on RS-232 communication for reliable data exchange. Instruments such as barcode scanners, printers, weighing systems and laboratory analysers often use serial interfaces for simple and dependable connectivity.
The WAGO 750-650/000-010 enables these serial devices to be integrated directly into PLC-based automation systems. By transferring serial data through the fieldbus controller, engineers can combine legacy equipment with modern automation architectures and centralised process monitoring.
Typical Applications
- Connecting barcode scanners and industrial printers.
- Integrating weighing systems and measurement instruments.
- Communication with legacy RS-232 equipment.
- Factory data acquisition and monitoring systems.
- Industrial diagnostics and instrumentation integration.
