Why Choose the WAGO 750-652 RS-485 Serial Interface Module?

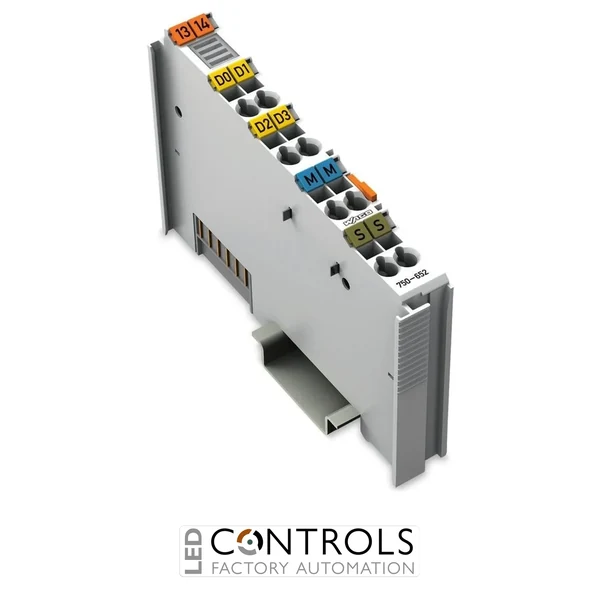

The WAGO 750-652 is a robust RS-485 serial communication interface module designed for integration within the WAGO I/O System 750. It allows PLC controllers and automation systems to communicate with industrial devices using the RS-485 communication standard, commonly used for distributed control networks, instrumentation and field devices.
The module supports reliable serial communication over longer cable distances than RS-232 and enables connection of multiple devices on a single bus. This makes it ideal for integrating industrial equipment such as drives, controllers, energy meters, sensors and other automation devices into PLC-based control systems.
Installed within a WAGO modular I/O node, the interface enables serial field devices to be integrated directly into fieldbus or Ethernet-based automation architectures, simplifying system design and reducing the need for external communication gateways.
Key Advantages
- Integrated RS-485 serial communication interface.
- Supports connection of multiple devices on a single serial bus.
- Reliable communication over long cable distances.
- Electrical isolation between field signals and system bus.
- Compact module for WAGO I/O System 750 installations.
- Maintenance-free wiring using CAGE CLAMP® spring terminals.
Key Features
- RS-485 serial interface module.
- Half-duplex serial communication.
- Supports baud rates up to approximately 115.2 kBd.
- Configurable communication parameters including parity and stop bits.
- Integrated buffers for reliable data transfer.
- Status LEDs for communication diagnostics.
- Direct integration with WAGO I/O System 750 controllers.
- DIN rail mounting for modular automation systems.
RS-485 Communication in Industrial Automation
RS-485 communication is widely used in industrial networks due to its ability to support long cable distances and multiple devices on a single communication bus. It is commonly used for protocols such as Modbus RTU and other serial industrial communication systems.
The WAGO 750-652 allows RS-485 devices to be integrated directly into PLC-based automation systems. By transferring serial data through the WAGO fieldbus controller, engineers can incorporate serial networks into distributed control systems while maintaining reliable communication with field devices.
Typical Applications
- Connecting Modbus RTU devices and field instruments.
- Integration of industrial drives and controllers.
- Communication with energy meters and monitoring equipment.
- Distributed automation networks.
- Industrial process monitoring systems.
