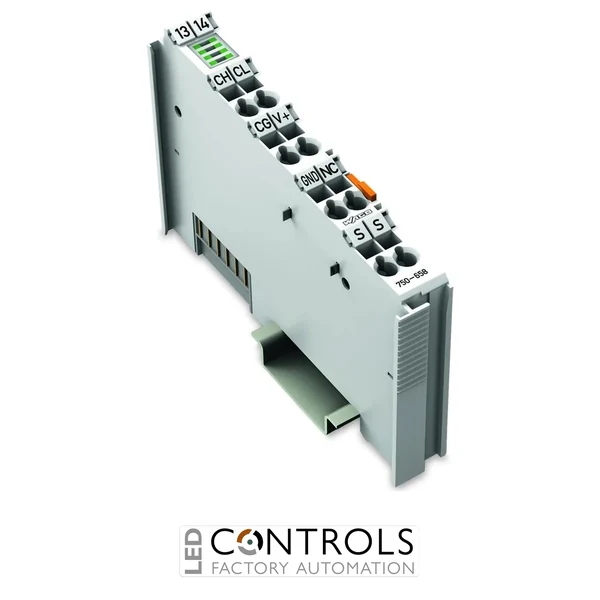

WAGO 750-658 CAN gateway module for WAGO I/O System 750 supporting CAN 2.0A and 2.0B communication with automatic baud rate detection up to 1 Mbit/s.
£356.35
The WAGO 750-658 is a specialised CAN gateway communication module designed for integration within the WAGO I/O System 750. It allows automation systems and PLC controllers to interface with CAN-based networks, enabling reliable communication with distributed devices such as sensors, actuators, drives and motion controllers.
The gateway supports the CAN physical and data link layers according to CAN specification 2.0A (11-bit identifier) and 2.0B (29-bit identifier), making it compatible with a wide range of CAN devices used in industrial automation and machine control applications. :contentReference
With flexible operating modes including sniffer, transparent and mapped operation, the module can analyse CAN networks, transmit and receive telegrams directly or map CAN data into the PLC process image. This versatility makes the gateway suitable for diagnostics, network integration and real-time machine communication. :contentReference
Controller Area Network (CAN) is a robust communication protocol widely used for distributed control systems, machine automation and motion control applications. Its deterministic communication model and strong error detection make it suitable for industrial environments where reliable real-time data exchange is essential.
The WAGO 750-658 gateway enables CAN devices to be integrated directly into PLC automation systems. By bridging CAN networks with WAGO fieldbus controllers, the module allows distributed sensors, actuators and controllers to operate within a unified automation architecture. :contentReference
| IP Rating | IP20 |
|---|---|
| Series | I/O System 750 |
| Module type | CAN Gateway communication module |
| Supported standards | CAN 2.0A (11-bit) and CAN 2.0B (29-bit) |
| Supported baud rates | 10 kbit/s to 1 Mbit/s |
| Operating modes | Sniffer, Transparent, Mapped |
| CAN filters | Six configurable identifier filters |
| Data width | configurable up to 48 bytes |
| System supply voltage | 5 V DC via internal system bus |
| Field supply voltage | 24 V DC |
| Current consumption | approx. 50 mA (system supply) |
| Isolation voltage | approx. 500 V system/field |
| Connection technology | WAGO CAGE CLAMP® spring terminals |
| Mounting | DIN-35 rail |
| Protection rating | IP20 |
| Operating temperature | 0 to 55 °C |
| Module width | approx. 12 mm |
| HS Code | 85389099 |
| Country of Manufacture | Germany |
The module acts as a CAN gateway that allows PLC systems using the WAGO I/O System 750 to communicate with CAN network devices.
The gateway supports CAN 2.0A (11-bit identifiers) and CAN 2.0B (29-bit identifiers).
The module supports CAN communication speeds from 10 kbit/s up to 1 Mbit/s, with automatic bit-rate detection available.
The gateway offers sniffer mode, transparent mode and mapped mode for diagnostics, active communication and process image integration.
The module integrates with WAGO I/O System 750 fieldbus couplers and programmable controllers.
WAGO communication modules are widely used in industrial automation systems to integrate distributed field devices, networks and machine control platforms into reliable PLC-based architectures.
