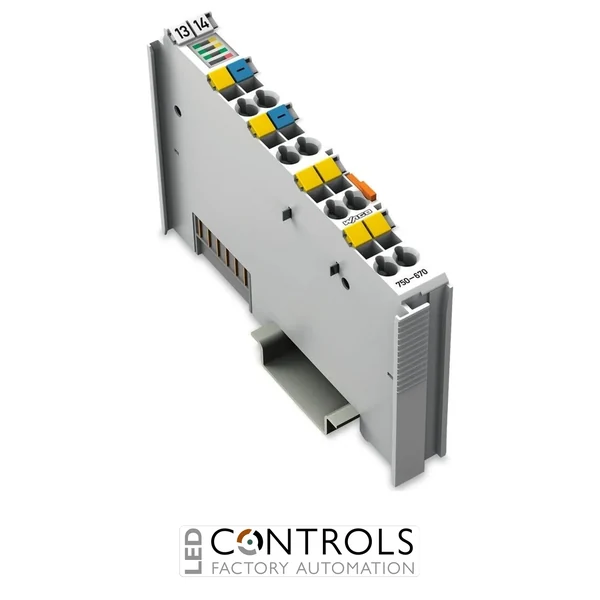

WAGO 750-670 stepper motor controller module for WAGO I/O System 750 providing pulse/direction control with RS-422 interface for precise stepper motor positioning.
£257.12
The WAGO 750-670 is an intelligent stepper motor controller module designed for precise motion control within the WAGO I/O System 750. It allows PLC-based automation systems to control stepper motor drive stages using a pulse/direction interface or incremental encoder input, providing accurate positioning and motion control for industrial machinery.
The controller supports RS-422, 24 V or 20 mA interfaces and generates high-frequency output signals suitable for modern microstepping motor drivers. With integrated motion control functions such as positioning, acceleration ramps and automatic referencing, the module enables reliable and flexible control of stepper motors in automation applications. :contentReference
Designed for compact DIN rail installations, the module integrates directly into the distributed WAGO I/O architecture, allowing stepper motor control to be implemented within modular PLC systems without additional motion controllers.
Stepper motors are widely used in industrial machinery for precise positioning and repeatable motion control. Applications such as packaging equipment, assembly machines, laboratory automation and CNC positioning systems rely on accurate stepper motor control to maintain consistent product quality.
The WAGO 750-670 provides integrated motion control capabilities within distributed automation systems. By generating precise step and direction signals and handling positioning logic internally, the module enables PLC controllers to manage stepper motors efficiently without requiring dedicated external motion controllers. :contentReference
| IP Rating | IP20 |
|---|---|
| Series | I/O System 750 |
| Module type | Stepper motor controller |
| Number of digital inputs | 2 |
| Number of outputs | 1 channel (differential outputs A1/A2 and B1/B2) |
| Output interface | RS-422 / TTL / optocoupler compatible |
| Output current | approx. 30 mA (short-circuit protected) |
| Output frequency range | approx. 0.0002 Hz to 500 kHz |
| Pulse duty cycle | 50 % (stepper mode) |
| Resolution | 23-bit step resolution with sign bit |
| System supply voltage | 5 V DC via internal system bus |
| Field supply voltage | 24 V DC |
| Connection technology | WAGO CAGE CLAMP® terminals |
| Mounting | DIN-35 rail |
| Module width | approx. 12 mm |
| Protection rating | IP20 |
| Operating temperature | 0 to 55 °C |
| HS Code | 85389099 |
| Country of Manufacture | Germany |
The module is an intelligent stepper motor controller used to control stepper drive stages using pulse and direction signals within WAGO I/O System 750 automation systems.
The controller supports interfaces such as RS-422, TTL and optocoupler-based stepper drivers.
The module can generate step signals up to approximately 500 kHz, allowing high-resolution microstepping control.
The module includes two digital inputs that can be configured for functions such as start/stop commands, limit switches or reference sensors.
The controller integrates with WAGO I/O System 750 fieldbus couplers and programmable controllers for distributed motion control applications.
WAGO motion control modules are widely used in industrial automation systems to provide precise motor control, reliable positioning and flexible integration with PLC-based control architectures.
