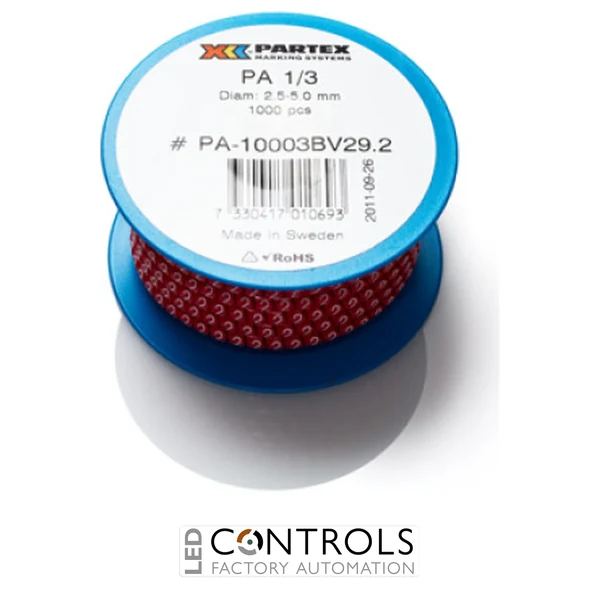

Why Choose the Partex PA1-RCC Colour-Coded Slide-On Chevron Cable Marker?
The Partex PA1-RCC is a colour-coded slide-on chevron cable marker designed for clear, organised identification of electrical wires and cables in industrial control panels, electrical installations and equipment wiring. Part of the Partex PA1 cable marking range, this size C marker is suitable for cables with an outside diameter of 2.5–5.0 mm.
The PA1-RCC uses a practical slide-on identification system that allows individual markers to be positioned on compatible cables during installation. Its chevron-style profile supports the arrangement of adjacent markers into identification sequences, helping electricians and maintenance engineers recognise conductor references and trace wiring throughout electrical systems.
Featuring a colour-coded identification format, the Partex PA1-RCC provides an alternative to conventional single-colour cable markers. Colour coding can help distinguish identification characters and simplify visual recognition in densely wired installations. Supplied in a convenient reel format, the PA1-RCC is suitable for repetitive marking tasks, control panel production and professional electrical maintenance.
Key Advantages
- Colour-coded identification helps improve visual recognition of cable and conductor references.
- Size C configuration accommodates cables with outside diameters of 2.5–5.0 mm.
- Slide-on installation provides a convenient method of identifying compatible electrical conductors.
- Chevron-style marker design supports the arrangement of individual markers into identification sequences.
- Suitable for electrical control panels, industrial machinery and automation equipment.
- Helps improve cable organisation and simplify circuit tracing during maintenance.
- Compact identification format is useful in installations with closely arranged conductors.
- Individual markers can be combined to create cable numbers and equipment references.
- Reel supply format supports efficient dispensing during repetitive wiring operations.
- Suitable for professional panel builders, electrical installers and maintenance engineers.
Key Features
- Partex PA1-RCC slide-on cable marker.
- PA1 chevron cable identification range.
- Size C marker.
- Compatible cable diameter: 2.5–5.0 mm.
- Colour-coded marking system.
- Slide-on design for installation onto compatible wires and cables.
- Chevron-style profile for assembling conductor identification references.
- Suitable for cable numbers, circuit identification and wiring references.
- Designed for use in electrical panels and industrial wiring assemblies.
- Compact identification format for organised conductor marking.
- Supplied on a reel for convenient storage and dispensing.
Colour-Coded Cable Identification for Electrical Control Systems
The Partex PA1-RCC chevron cable marker provides a straightforward solution for identifying conductors within electrical installations. Its slide-on configuration allows markers to be fitted onto compatible cables during assembly, helping create consistent identification throughout control panels, machinery and industrial automation systems. The colour-coded format provides an additional visual reference when distinguishing individual characters and cable identification sequences.
Designed for 2.5–5.0 mm cable outside diameters, the PA1-RCC should be selected according to the overall insulated diameter of the conductor rather than its nominal copper cross-sectional area. Markers are generally installed before cable termination where the finished connector would prevent them from sliding onto the wire. Correct marker selection and positioning help maintain clear identification during installation, inspection and subsequent maintenance.
Typical Applications
- Industrial electrical control panels and switchgear assemblies.
- PLC and industrial automation system wiring.
- Electrical cabinet and distribution equipment identification.
- Industrial machinery and equipment wiring.
- Control and instrumentation conductor marking.
- OEM electrical equipment manufacturing.
- Electrical maintenance and fault-finding operations.
- Terminal wiring and conductor numbering systems.
- Wiring harness production and assembly.
- Colour-coded cable identification in industrial installations.
