Why Choose the Partex PAZE20-CBW Halogen-Free Slide-On Chevron Cable Marker?

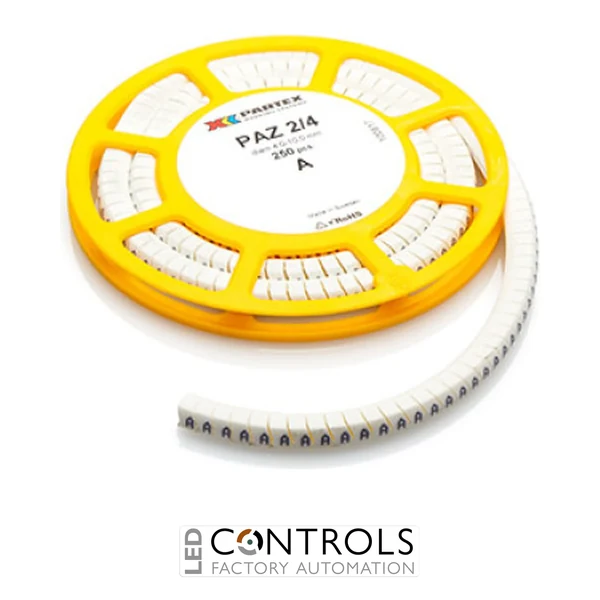

The Partex PAZE20-CBW is a halogen-free slide-on chevron cable marker designed for clear and organised identification of electrical cables and conductors in industrial control panels, electrical installations and automation systems. Part of the Partex PAZE20 cable marking range, this size D marker is suitable for cables with outside diameters of 4.0–10.0 mm and features black characters on a white background for high-contrast identification.
The PAZE20 slide-on marking system provides a convenient method of identifying electrical conductors without adhesive labels or on-site printing equipment. Its chevron-style design allows individual markers to be positioned together to form cable identification sequences, supporting consistent conductor numbering and easier recognition of wiring references during installation, inspection and maintenance.
A key characteristic of the PAZE20-CBW is its halogen-free construction, making it a useful option for projects where halogen-free cable identification materials are specified. Supplied in a disc format, the marker is designed for practical handling and installation in professional electrical marking applications. Its combination of slide-on installation, black-on-white identification and compatibility with 4.0–10.0 mm cable diameters makes it suitable for a range of industrial electrical systems.
Key Advantages
- Halogen-free cable marker suitable for installations specifying halogen-free identification materials.
- Size D configuration designed for cables measuring 4.0–10.0 mm in outside diameter.
- Black-on-white identification provides clear visual contrast for conductor references.
- Slide-on chevron design allows individual markers to be combined into identification sequences.
- Direct slide-on installation avoids the need for adhesive cable labels.
- Supports organised wiring, cable tracing and maintenance in industrial electrical systems.
- Disc packaging format provides a convenient method of supplying and handling cable markers.
Key Features
- Partex PAZE20 cable identification series.
- PAZE20-CBW manufacturer part number.
- Halogen-free slide-on cable marker.
- Chevron-style marker profile.
- Size D marker configuration.
- Suitable cable diameter: 4.0–10.0 mm.
- Black identification characters.
- White marker background.
- High-contrast marking for convenient cable identification.
- Slide-on installation onto compatible insulated conductors.
- Individual markers can be arranged together to create conductor identification codes.
- Disc supply format.
Halogen-Free Cable Identification for Industrial Control and Automation Systems
Reliable cable identification is an important part of electrical installation, equipment maintenance and fault diagnosis. Clearly marked conductors help electricians and maintenance engineers trace wiring connections, compare installations against electrical drawings and identify circuits within control panels, switchgear and industrial machinery. The Partex PAZE20-CBW provides a practical slide-on identification solution for these applications while meeting the requirement for a halogen-free marker material.
The marker's chevron-style profile enables individual characters to be combined into identification sequences, while its black-on-white appearance supports clear reading of cable references. The 4.0–10.0 mm cable diameter range allows use with compatible insulated conductors in industrial electrical installations. For correct fitting, the marker should be selected according to the actual outside diameter of the insulated cable. Where a project specifies particular fire-performance or smoke-emission standards, those requirements should be checked separately against the manufacturer's technical documentation.
Typical Applications
- Industrial electrical control panel wiring and conductor identification.
- PLC and industrial automation system installations.
- Electrical distribution boards and switchgear assemblies.
- Machinery and production equipment cable marking.
- Motor control equipment and industrial electrical systems.
- Projects specifying halogen-free cable identification materials.
- Electrical maintenance, cable tracing and fault finding.
- OEM equipment manufacturing and professional control panel assembly.
