Why Choose the ILME CRS16 Metal Cable Clamp?

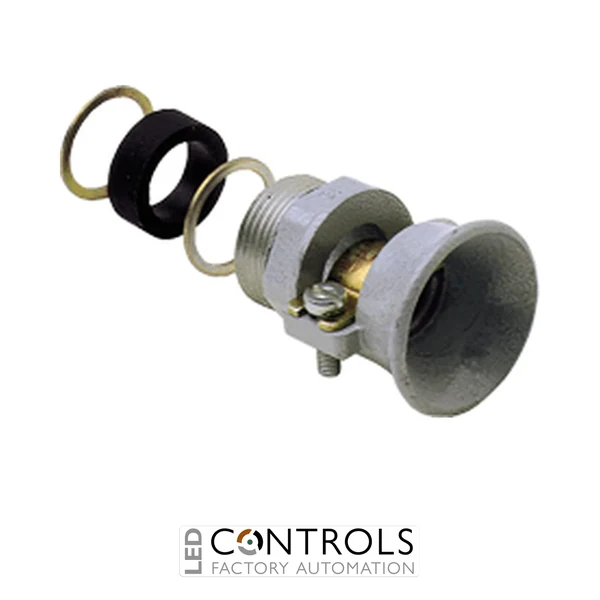

The ILME CRS16 is a robust aluminium cable clamp with gasket and washers designed for cable entry and strain-relief applications on compatible industrial connector enclosures. Featuring a PG16 threaded entry and designed for a 14 mm cable diameter, it provides secure mechanical retention for cables entering ILME heavy-duty connector assemblies.
The CRS16 combines an aluminium clamp body with zinc-plated steel washers and a rubber gasket. This purpose-designed arrangement secures the incoming cable while the gasket contributes to environmental sealing, making the clamp suitable for industrial machinery, automation equipment and control installations.
When correctly installed, the CRS16 provides an IP65 degree of protection and is specified for an operating temperature range of -40 to +125 °C. Its durable metallic construction and dedicated 14 mm cable accommodation make it a practical accessory for compatible ILME connector hoods and housings with PG16 cable entries.
Key Advantages
- Robust aluminium cable clamp for industrial connector applications.
- PG16 threaded entry for compatible ILME enclosures.
- Designed specifically for a 14 mm cable diameter.
- Supplied with gasket and washers for a complete clamping arrangement.
- Provides IP65 protection when correctly installed.
- Wide -40 to +125 °C operating temperature range for demanding industrial environments.
Key Features
- ILME CRS series cable clamp.
- PG16 cable entry.
- Suitable for 14 mm diameter cable.
- Aluminium main body.
- Zinc-plated steel washers.
- Rubber gasket.
- IP65 degree of protection.
- Operating temperature range from -40 to +125 °C.
- Designed to provide secure cable retention and strain relief.
- Suitable for compatible ILME industrial connector hoods and housings.
Secure Cable Retention for Industrial Connector Enclosures
Industrial connector cable clamps help protect conductor terminations from mechanical forces transmitted through the incoming cable. By firmly retaining the cable at the enclosure entry, the clamp provides strain relief and helps prevent pulling, movement and vibration from being transferred directly to the electrical connections inside the connector.
The ILME CRS16 is purpose-designed for PG16 entries and 14 mm diameter cables. Its aluminium body, rubber gasket and zinc-plated steel washers provide a robust clamping and sealing arrangement, while the IP65 rating makes it suitable for compatible industrial connector assemblies requiring protection against dust and water jets.
Typical Applications
- ILME heavy-duty multipole connector assemblies.
- Industrial connector hoods and housings with PG16 entries.
- Machine building and automation equipment.
- Electrical control and production machinery.
- Motor, actuator and equipment cable connections.
- Industrial installations requiring cable strain relief and IP65 protection.
