Why Choose the Rittal DK 5302.044 Depth-Variable Cable Clamp Rail?

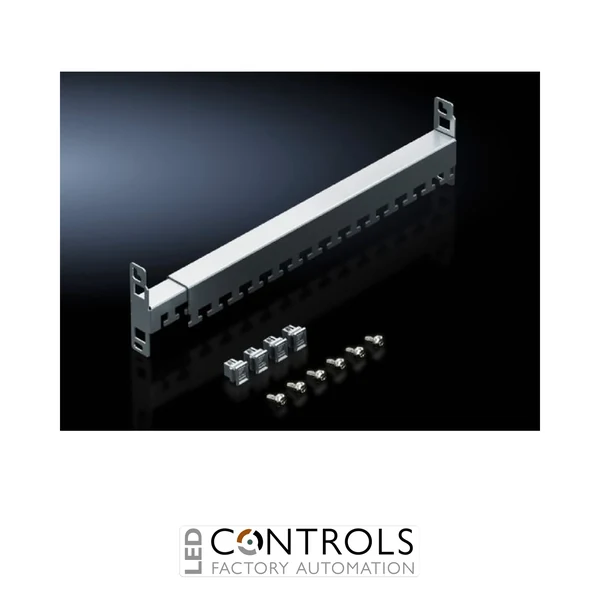

The Rittal DK 5302.044 is a depth-variable cable clamp rail for VX IT and TE enclosures, designed for organised cable routing and effective strain relief within network and IT infrastructure cabinets. Its adjustable design allows the rail length to be adapted to the available mounting distance between the two 482.6 mm (19-inch) mounting levels.
Designed specifically for professional enclosure cable management, the DK 5302.044 provides a secure support point for routed cables and helps prevent cable weight or movement from placing unnecessary strain on connections. Cables can be secured directly to the rail using suitable cable ties or hook-and-loop fasteners, providing installation flexibility for different cable bundles and configurations.
Manufactured from durable sheet steel with a zinc-plated surface finish, the rail is suitable for long-term installation inside Rittal VX IT and TE enclosure systems. Its variable mounting arrangement provides a 325–575 mm mounting dimension, while the current Rittal specification identifies a corresponding distance between mounting levels of 350–550 mm depending on the enclosure configuration.
Key Advantages
- Depth-variable cable clamp rail for Rittal VX IT and TE enclosures.
- Provides organised cable routing and effective strain relief for installed cables.
- Variable design adapts to different mounting distances between 482.6 mm (19-inch) mounting levels.
- Cables can be secured using cable ties or hook-and-loop fasteners.
- Durable zinc-plated sheet steel construction for dependable enclosure installation.
- Can be positioned at the rear mounting level or within the enclosure depth between mounting levels.
Key Features
- Rittal DK cable management accessory.
- Compatible with Rittal VX IT and TE enclosure systems.
- 325–575 mm variable mounting dimension.
- Current specified distance between levels of 350–550 mm.
- Designed around 482.6 mm (19-inch) mounting levels.
- Sheet steel construction.
- Zinc-plated surface finish.
- Supports cable attachment with cable ties or hook-and-loop fasteners.
- Additional screw fastening provides secure installation.
- Supplied with assembly parts for installation.
Reliable Cable Management and Strain Relief
Effective cable management is essential within network, server and telecommunications enclosures, where large numbers of power and data cables must be routed without placing excessive mechanical stress on connectors. The Rittal DK 5302.044 provides a dedicated support point for securing cable bundles and relieving strain while helping maintain an organised enclosure layout.
The depth-variable design makes the rail particularly flexible when configuring VX IT and TE installations. It can be mounted horizontally at the rear directly onto a 482.6 mm (19-inch) mounting level or positioned within the enclosure depth between two mounting levels, allowing installers to select a cable routing position suited to the equipment and available enclosure space.
Typical Applications
- Rittal VX IT network and server enclosures.
- Rittal TE enclosure systems.
- Data centre and telecommunications cabinets.
- Structured network cable management.
- Power and data cable strain relief.
- Rear and depth-based cable routing between 19-inch mounting levels.
