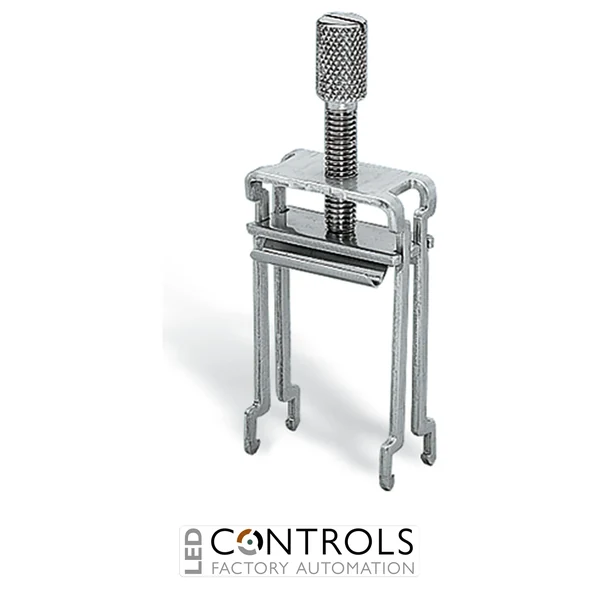

790-124 Wago Shield clamping saddle;27 mm wide;diameter of compatible conductor;silver-colored

790-124 Wago Shield clamping saddle;27 mm wide;diameter of compatible conductor;silver-colored

WAGO 790-124 shield clamping saddle with 27 mm width for cable shield diameters from 6 mm to 24 mm. Designed for WAGO 790 Series shield connection systems.

SKU: 790-124Alt SKU: 790124MPN: 790-124
Price
List Price £7.31 ex VAT
Your Price (ex VAT)
£7.31
In stock. Ships today if ordered before 2pm
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £7.31
Trade pricing is personalised to your account

20 in stock (can be backordered)

£7.31

Why Choose the WAGO 790-124 Shield Clamping Saddle?

The WAGO 790-124 is a heavy-duty shield clamping saddle designed for professional EMC cable shield grounding in industrial control panels and automation systems. Featuring a 27 mm wide clamping saddle, it securely contacts screened cables with diameters from 6 mm to 24 mm, ensuring an effective low-impedance connection that reduces electromagnetic interference (EMI) and improves signal integrity.

Designed for use with the WAGO 790 Series shield connection system, the 790-124 provides fast installation and dependable shield termination for larger screened cables used in machinery, PLC cabinets, drives and process control systems. The robust metal construction delivers long-term durability in demanding industrial environments.

Manufactured to WAGO's renowned engineering standards, the 790-124 is trusted by panel builders, OEMs and automation engineers for applications requiring reliable EMC performance and professional cable shield grounding.

Key Advantages

  • Reliable EMC grounding for large screened cables.
  • Suitable for cable shield diameters from 6 mm to 24 mm.
  • Designed for the WAGO 790 Series shield connection system.
  • Quick installation for efficient panel assembly.
  • Improves signal integrity by reducing electromagnetic interference.
  • Durable construction for demanding industrial environments.

Key Features

  • Manufacturer: WAGO
  • Part number: 790-124
  • Product type: Shield clamping saddle
  • Clamping width: 27 mm
  • Compatible cable shield diameter: 6–24 mm
  • Designed for DIN rail shield grounding systems.
  • Suitable for industrial automation and control panels.
  • Recommended tightening torque: 0.5 Nm.

Reliable EMC Shielding for Large Industrial Cables

The WAGO 790-124 provides a dependable electrical connection between screened cable shields and grounded DIN rail systems, helping minimise electromagnetic noise and maintain reliable communication, control and instrumentation signals in industrial applications.

Its extra-wide 27 mm clamping saddle is designed for larger cable diameters, making it well suited to heavy-duty automation systems, electrical switchboards, machinery and process control installations where effective EMC protection is essential.

Typical Applications

  • Industrial automation systems.
  • PLC control cabinets.
  • Machine building.
  • Process control systems.
  • EMC cable shield grounding.
  • Electrical switchboards and instrumentation panels.

Technical Specifications

Series 790
Product type Shield clamping saddle
Width 27 mm
Compatible shield diameter 6–24 mm
Mounting WAGO 790 Series shield connection system
Application EMC cable shield grounding
Recommended tightening torque 0.5 Nm
GTIN 4017332611763
Weight Approx. 23 g
HS Code 85369010
Country of Manufacture Germany

Frequently Asked Questions

What is the WAGO 790-124 used for?

It is used to securely terminate and ground screened cable shields, helping reduce electromagnetic interference in industrial electrical systems.

What cable diameters does it support?

The shield clamping saddle is suitable for cable shield diameters between 6 mm and 24 mm.

Is it compatible with DIN rail installations?

Yes. It is designed for use with the WAGO 790 Series shield connection system mounted on DIN rails.

What tightening torque is recommended?

WAGO recommends a tightening torque of 0.5 Nm for secure installation.

Where is the WAGO 790-124 typically installed?

It is commonly installed in industrial automation panels, PLC systems, machine control cabinets and process instrumentation requiring effective EMC shielding.

Trusted for Industrial EMC Protection

WAGO 790 Series shield clamping accessories are trusted by control panel builders, OEMs and automation engineers worldwide for delivering dependable cable shield grounding and reliable electromagnetic compatibility in demanding industrial environments.
