Why Choose the Rittal SZ4183.000 Support Bracket?
The Rittal SZ4183.000 is a reliable support bracket for fastening PS mounting rails and punched rails designed for flexible internal configuration of Rittal enclosure systems. As part of the Rittal SZ accessories range, it provides secure mechanical support for 23 x 23 mm mounting rails and 23 x 73 mm mounting chassis in industrial control cabinets.
This support bracket allows mounting rails to be installed in multiple positions within compatible Rittal enclosures, helping create adaptable layouts for electrical components, wiring accessories and automation equipment. Its durable die-cast zinc construction ensures dependable mechanical performance in industrial applications.

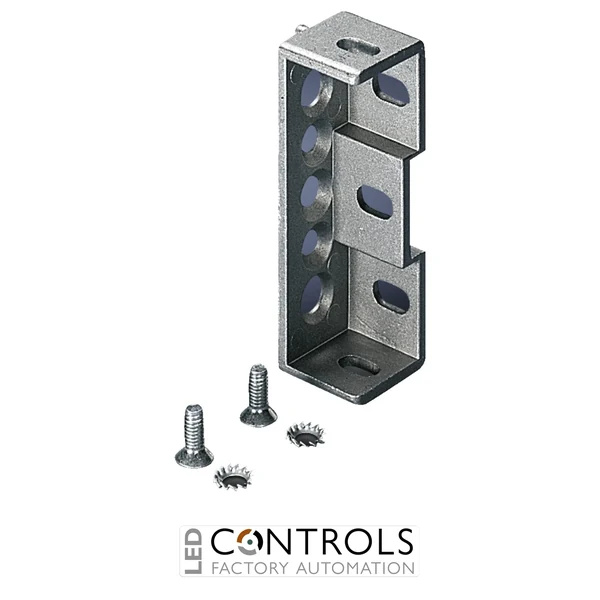

The SZ4183.000 is supplied as a complete mounting set including one support bracket, two countersunk screws and two serrated lock washers, providing a practical solution for professional enclosure assembly.
Key Advantages
- Designed for fastening PS mounting rails 23 x 23 mm and punched sections 23 x 73 mm.
- Compatible with Rittal TS, VX and VX SE enclosure systems.
- Strong die-cast zinc construction for secure component mounting.
- Supports flexible internal enclosure configuration.
- Complete mounting set supplied with screws and lock washers.
- Suitable for industrial control cabinets and automation installations.
Key Features
- Rittal SZ system accessory.
- Support bracket for PS mounting rail 23 x 23 mm.
- Material: Die-cast zinc.
- Suitable for mounting chassis 23 x 73 mm without mounting flange.
- Supplied with 2 countersunk screws and 2 serrated lock washers.
- Installation on TS, VX SE enclosure sections and compatible adaptor rails.
- Suitable for rectangular system punching 12.5 x 10.5 mm.
Reliable Enclosure Mounting Solutions
Rittal support brackets provide engineers with flexible methods for installing internal mounting rails and chassis within industrial enclosures. The SZ4183.000 enables secure positioning of PS mounting rails, helping optimise cabinet layouts and improve component organisation.
Designed for use with Rittal modular enclosure platforms, this accessory supports efficient panel building by creating reliable mounting points for electrical and automation components.
Typical Applications
- Industrial control cabinets.
- Electrical enclosure internal mounting systems.
- Automation and switchgear assemblies.
- Rittal TS, VX and VX SE enclosure configurations.
- Mounting of punched rails and internal accessories.
- Machine building and industrial electrical installations.
