Why Choose the Rittal TS 8800.370 Mounting Bracket?

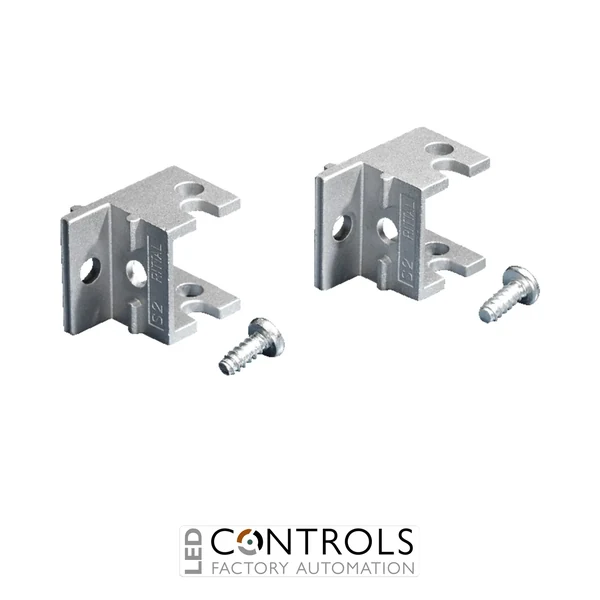

The Rittal TS 8800.370 is a dedicated mounting bracket for fastening 23 × 23 mm punched mounting rails directly to the vertical sections of compatible Rittal industrial enclosures. It provides flexible mounting options for panel builders who need to support external surfaces or create an additional internal mounting level within an enclosure.
Manufactured from robust die-cast zinc, the TS 8800.370 provides a secure mechanical interface between the enclosure section and the 23 × 23 mm mounting rail. The brackets can be positioned on the vertical enclosure section either flush with the outer edge of the enclosure or aligned with the enclosure clearance width, depending on the required installation arrangement.
Designed for compatible Rittal TS and VX SE enclosures, the TS 8800.370 is supplied as a complete pack containing 24 mounting brackets and 24 carbon steel screws measuring 5.5 × 13 mm. This makes it a practical solution for industrial control cabinet construction, internal framework expansion and applications requiring additional support or mounting levels.
Key Advantages
- Provides flexible fastening for 23 × 23 mm punched mounting rails.
- Allows additional internal mounting levels to be created inside compatible enclosures.
- Can be used to support external enclosure surfaces.
- Offers two useful mounting positions on compatible vertical enclosure sections.
- Robust die-cast zinc construction for dependable industrial use.
- Supplied with 24 matching 5.5 × 13 mm screws for installation.
Key Features
- Rittal TS mounting bracket for interior installation.
- Designed for 23 × 23 mm punched mounting rails.
- Suitable for direct installation on compatible vertical enclosure sections.
- Die-cast zinc construction.
- Can be mounted flush with the enclosure's outer edge.
- Can be positioned in alignment with the enclosure clearance width.
- Suitable for creating an additional internal mounting level.
- Suitable for supporting external enclosure surfaces.
- Compatible with TS and VX SE enclosure systems.
- Supplied as a pack of 24 brackets with 24 screws.
Flexible Mounting Rail Installation
The Rittal TS 8800.370 gives panel builders greater freedom when positioning 23 × 23 mm punched rails within an industrial enclosure. Mounting rails can be used to support enclosure surfaces or to establish an additional internal level for equipment and accessory installation, helping make effective use of the available cabinet space.
Installation on the vertical enclosure section provides multiple configuration possibilities. Depending on the required arrangement, the mounting bracket can position the rail flush with the outer edge of the enclosure or in alignment with the enclosure clearance width, providing a versatile foundation for customised enclosure construction.
Typical Applications
- Fastening 23 × 23 mm punched mounting rails.
- Creating additional internal mounting levels.
- Supporting external enclosure surfaces.
- Industrial control cabinet construction.
- Automation and machine control enclosure installations.
- Rittal TS and VX SE enclosure system expansion and modification.
