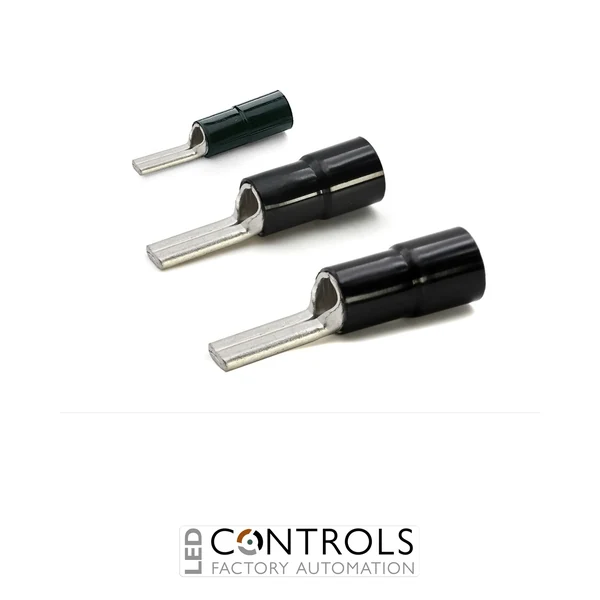

Cembre ANE3-P14 pre-insulated copper pin terminal for 16 mm² flexible stranded copper conductors with 18 mm pin length and PA6.6 insulated sleeve.
£0.78
The Cembre ANE3-P14 (2415860) is a premium pre-insulated copper pin terminal designed to provide secure, low-resistance electrical terminations for flexible stranded copper conductors. Manufactured by Cembre, this industrial-grade terminal is ideal for control equipment, switchgear and terminal blocks that utilise screw clamp or pressure plate connections.
Manufactured from high-purity electrolytic copper with an electrolytically tin-plated finish, the ANE-P series delivers excellent electrical conductivity together with outstanding corrosion resistance. The integrated PA6.6 polyamide insulated sleeve incorporates a funnel-shaped entry that simplifies conductor insertion while protecting wire strands during crimping, ensuring fast installation and consistently reliable electrical terminations.
Designed for 16 mm² flexible stranded copper conductors with an 18 mm pin length, the Cembre 2415860 is ideally suited to industrial control panels, PLC cabinets, machinery, OEM equipment and electrical distribution systems requiring dependable pin-type conductor terminations.
The Cembre ANE-P range is engineered to provide dependable, low-resistance electrical connections for pressure clamp and screw terminal equipment. The electrolytically tin-plated copper construction delivers excellent conductivity while resisting oxidation and corrosion throughout the service life of the installation.
Its integrated PA6.6 insulated sleeve eliminates the need for secondary insulation after crimping, while the funnel-shaped entry allows rapid conductor insertion and protects wire strands during installation, helping produce consistent, professional-quality electrical terminations.
| Series | ANE-P |
|---|---|
| Manufacturer Part Number | 2415860 |
| Product type | Pre-insulated copper pin terminal |
| Conductor size | 16 mm² |
| Conductor type | Flexible stranded copper conductor |
| Pin length | 18 mm |
| Pin width | 5.5 mm |
| Internal barrel diameter | 9.2 mm |
| Overall length | 41.1 mm |
| Material | Annealed electrolytic tin-plated copper |
| Insulation | Polyamide PA6.6 |
| Maximum voltage | 1 kV |
| Operating temperature | -20°C to +115°C (130°C surge) |
| HS Code | 85369010 |
| Country of Manufacture | Italy |
It is designed to terminate 16 mm² flexible stranded copper conductors into pressure clamp and screw terminal connections.
The ANE3-P14 is designed for 16 mm² flexible stranded copper conductors.
It is manufactured from annealed electrolytic tin-plated copper with an integrated PA6.6 polyamide insulated sleeve.
The terminal features an 18 mm pin length suitable for a wide range of industrial terminal blocks and control equipment.
It is commonly installed in industrial control panels, PLC cabinets, switchgear, machinery and OEM automation equipment.
Cembre insulated pin terminals are trusted worldwide by electrical contractors, panel builders and OEM manufacturers for delivering reliable, durable and standards-compliant electrical terminations across demanding industrial applications.
