Why Choose the Partex PXL185-12 Copper Tube Ring Terminal?

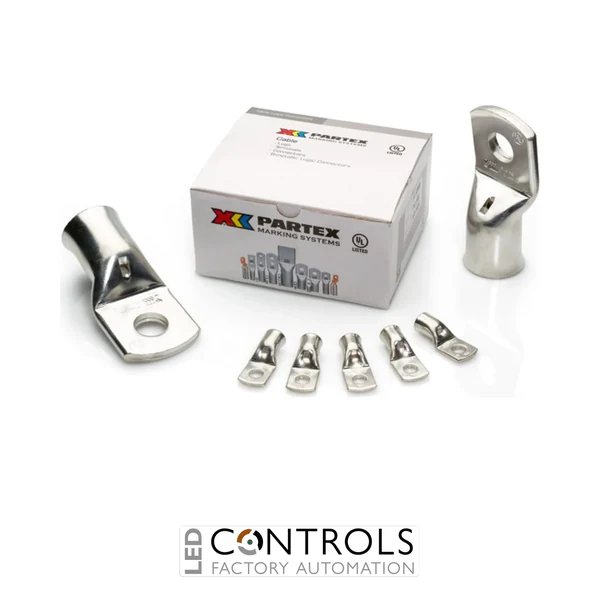

The Partex PXL185-12 is a heavy-duty copper tube ring terminal designed to provide secure electrical connections for large copper conductors in industrial power distribution, switchgear and electrical installations. Part of the Partex PXL copper tube ring terminal range, this cable lug accommodates a 185 mm² copper conductor and features an M12 stud connection for reliable bolted termination.
Manufactured from electrically conductive copper, the PXL185-12 provides a robust connection between large electrical cables and compatible bolted terminals. Its tubular barrel is designed for compression crimping, allowing a secure mechanical and electrical connection to be formed using suitable crimping tools and dies. The closed-ring connection palm provides a stable fixing point for compatible M12 terminal studs, busbars and electrical equipment.
Supplied in a convenient pack of 10 terminals, the PXL185-12 is suitable for professional electrical installers, switchboard manufacturers, panel builders and industrial maintenance engineers. Its 185 mm² conductor capacity and M12 fixing arrangement make it a practical solution for large-conductor cable terminations in industrial and commercial power distribution systems.
Key Advantages
- Heavy-duty copper tube construction provides a durable electrical connection for large conductors.
- 185 mm² conductor capacity accommodates compatible large-section copper cables.
- M12 stud connection enables secure bolted termination to compatible electrical equipment.
- Conductive copper material supports efficient current transfer when correctly installed.
- Tubular crimp barrel enables strong mechanical conductor retention using appropriate compression tooling.
- Closed-ring terminal design helps prevent accidental disengagement from the fixing stud.
- Suitable for switchgear, busbars, electrical distribution assemblies and industrial power connections.
- Provides a practical termination method for large copper conductors in electrical installations.
- Supplied in a convenient pack of 10 for professional installation and maintenance.
Key Features
- Partex PXL copper tube ring terminal series.
- PXL185-12 model for large-conductor electrical termination.
- 185 mm² nominal conductor cross-section.
- M12 stud fixing size.
- Copper tubular construction for electrical conductivity and mechanical durability.
- Closed-ring connection palm for secure bolted attachment.
- Compression crimp barrel designed for permanent cable termination.
- Suitable for compatible stranded copper conductors.
- Designed for use with appropriate heavy-duty cable lug crimping tools and dies.
- Suitable for industrial electrical distribution and switchgear installations.
- Designed for connections where a large cable cross-section must terminate onto an M12 fixing point.
- 10 terminals per pack.
Technical Specifications
- Manufacturer: Partex
- Product series: PXL Copper Tube Ring Terminals
- Manufacturer part number: PXL185-12
- Product type: Copper tube ring terminal / compression cable lug
- Terminal configuration: Closed-ring cable lug
- Nominal conductor cross-section: 185 mm²
- Stud size: M12
- Nominal stud diameter: 12 mm
- Terminal material: Copper
- Conductor compatibility: Compatible copper conductors
- Termination method: Compression crimping
- Electrical connection type: Bolted ring terminal
- Mounting method: Crimped cable connection with M12 stud or bolt fixing
- Typical installation: Industrial electrical equipment, switchgear and power distribution assemblies
- Pack quantity: 10 pieces
Secure Large-Conductor Crimp Terminations for Power Distribution
Large copper conductors require appropriately sized terminals to achieve dependable mechanical retention and electrical continuity. The Partex PXL185-12 features a tubular copper barrel designed to receive a compatible 185 mm² conductor, allowing the cable to be permanently terminated through compression crimping. This makes the terminal suitable for applications where large power cables must be connected to electrical distribution equipment or industrial switchgear.
The M12 ring connection allows the terminated conductor to be secured to compatible bolted electrical connection points. Correct cable preparation, crimping die selection, compression technique and tightening of the bolted connection are essential for reliable performance. The current-carrying capability of the completed connection depends on the cable, terminal, installation method and connected equipment, rather than the conductor size alone.
Typical Applications
- Industrial power distribution panels and switchboards.
- Low-voltage switchgear and electrical distribution assemblies.
- Busbar connections with compatible M12 fixing points.
- Industrial machinery and large electrical equipment.
- Commercial and industrial electrical installations.
- Power distribution cable terminations.
- Electrical equipment manufacturing and panel assembly.
- Industrial plant maintenance and replacement cable connections.
- Large copper conductor connections requiring a secure crimped and bolted termination.
