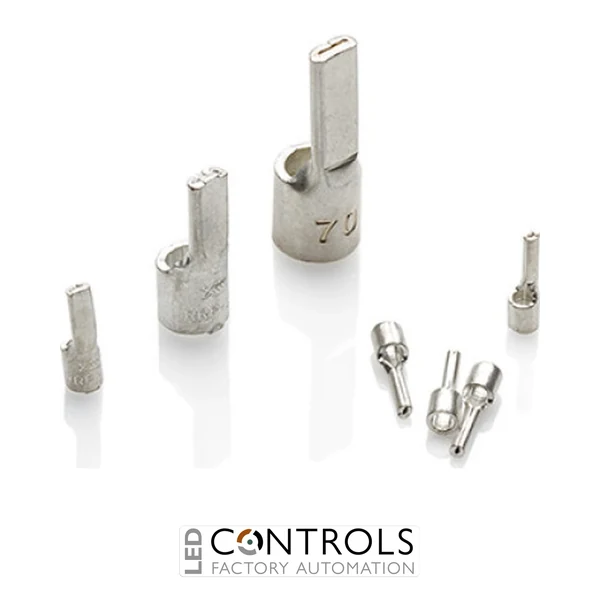

Why Choose the Partex PXP50 Copper Flat Pin Connector?
The Partex PXP50 Copper Flat Pin Connector is a heavy-duty electrical cable termination designed for connecting 50 mm² copper conductors to compatible electrical terminals. Featuring a flat pin connection profile rather than a traditional ring lug, the PXP50 provides a practical solution for electrical equipment with suitable clamp, screw or terminal block connections.
Manufactured from copper, the Partex PXP50 combines a tubular crimp barrel with a flat pin contact section. The barrel is designed to accommodate a correctly prepared 50 mm² copper conductor, while the flat pin allows the completed cable termination to be inserted into compatible electrical connection points. When correctly crimped and installed, this arrangement provides mechanical conductor retention and an effective electrical connection.
Supplied in a convenient pack of 30 connectors, the Partex PXP50 is suitable for electrical contractors, industrial maintenance engineers, panel builders and electrical equipment manufacturers. Its combination of 50 mm² cable compatibility, copper construction and flat pin configuration makes it a useful choice for professional electrical installations where a large conductor must be connected to a compatible terminal without using a ring-style mounting hole.
Key Advantages
- Designed for secure crimp termination of 50 mm² copper conductors.
- Flat pin connection profile for compatible electrical terminal blocks and clamping connections.
- Copper construction provides an effective electrical conduction path.
- Tubular crimp barrel supports secure mechanical retention of correctly prepared conductors.
- Offers an alternative to ring terminals where a flat pin connection is required.
- Crimp termination provides a permanent conductor-to-connector joint without soldering.
- Suitable for industrial electrical panels, switchgear and power distribution equipment with compatible terminals.
- Supports consistent cable termination when installed using the correct crimping tools and dies.
- Pack of 30 connectors provides a practical quantity for electrical installation, panel assembly and maintenance work.
Key Features
- Partex PXP copper flat pin connector range.
- PXP50 manufacturer part number.
- 50 mm² nominal conductor cross-section.
- Flat pin terminal configuration.
- Copper construction for conductive electrical connections.
- Tubular barrel designed for crimp termination.
- Flat contact section for insertion into compatible clamping terminals.
- Uninsulated connector construction.
- Designed for use with suitable crimping equipment and dies.
- Suitable for professional industrial and commercial electrical installations.
- 30 copper flat pin connectors per pack.
Technical Specifications
- Manufacturer: Partex
- Series: PXP Copper Flat Pin Connectors
- Manufacturer part number: PXP50
- Product type: Copper flat pin connector
- Terminal configuration: Flat pin
- Nominal conductor cross-section: 50 mm²
- Terminal material: Copper
- Conductor compatibility: Suitable copper electrical conductors
- Termination method: Crimping
- Connection type: Flat pin insertion into a compatible clamping terminal
- Barrel configuration: Tubular crimp barrel
- Connector insulation: Uninsulated
- Stud mounting hole: Not applicable – flat pin design
- Pack quantity: 30 pieces
- Primary application: Copper cable termination for compatible electrical terminal connections
Reliable Copper Flat Pin Connections for Electrical Distribution Equipment
Copper flat pin connectors are used where an electrical cable must be terminated into equipment designed to accept a flat contact profile. Unlike ring terminals, which are secured around a threaded stud or bolt, flat pin connectors are inserted into a compatible clamping connection. This makes them useful for selected terminal blocks, switchgear connections and electrical equipment terminals where the manufacturer specifies a suitable flat pin termination.
The Partex PXP50 is intended for 50 mm² copper conductors. The conductor is stripped to the appropriate length and inserted into the connector barrel before being compressed using compatible crimping equipment. Correct crimping establishes the conductor-to-connector joint, while the flat pin section provides the interface with the equipment terminal.
Before installation, it is important to confirm that the receiving terminal is suitable for the connector's flat pin dimensions, material and electrical duty. The terminal must be designed to accept and securely clamp the pin without damaging or distorting it. The finished connection should be tightened according to the equipment manufacturer's instructions, and the assembly should be checked for appropriate conductor support, insulation and electrical protection.
For 50 mm² power cable terminations, the correct crimping method is essential. Installers should use a suitable crimping tool and die combination, confirm conductor compatibility and inspect the finished crimp. The permissible current and operating temperature of the complete connection depend on the conductor, connector, receiving terminal and installation conditions rather than the nominal cable size alone.
Typical Applications
- Industrial electrical control and distribution panels.
- Compatible switchgear and power distribution terminals.
- Electrical terminal blocks designed to accept flat pin connections.
- Industrial machinery and equipment power connections.
- Commercial electrical distribution equipment.
- OEM electrical panel and equipment assembly.
- Industrial plant electrical maintenance and repairs.
- Power cable termination in compatible clamping connections.
- Electrical equipment refurbishment and replacement terminations.
- Professional electrical installation and panel-building projects.
