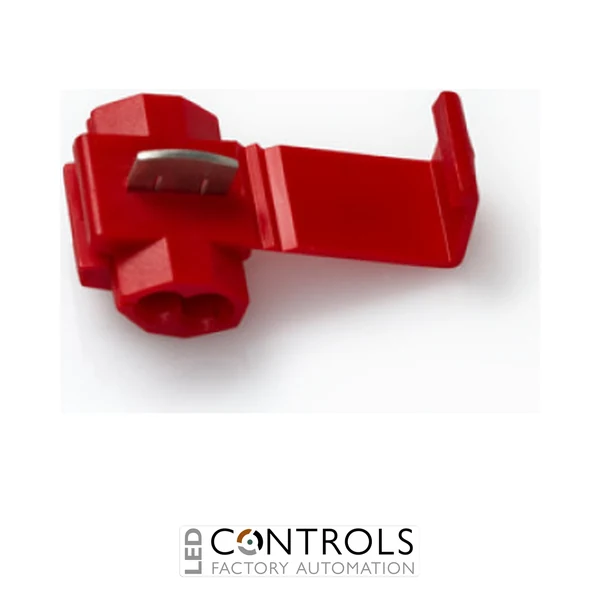

Why Choose the Partex QS1 Quick Splice Connector?
The Partex QS1 is a practical and convenient quick splice electrical connector designed for joining or tapping into electrical wires with conductor cross-sectional areas of 0.5–1.5 mm². Manufactured by Partex, this connector provides an efficient solution for electrical wiring, maintenance and installation applications where quick and straightforward conductor connections are required.
The quick splice design allows installers to create electrical connections using a suitable mechanical connection method without the need for soldering. This makes the QS1 particularly useful for wiring modifications, electrical repairs and installation work where accessibility and installation efficiency are important. Its compact format makes it a convenient accessory for use in compatible electrical wiring assemblies.
Designed for 0.5–1.5 mm² conductors and supplied in a convenient pack of 50 connectors, the Partex QS1 is suitable for electricians, electrical maintenance engineers, equipment installers and industrial technicians. The connectors provide a practical solution for making suitable wire connections in electrical equipment, control systems and general wiring applications.
Key Advantages
- Quick splice connector designed for convenient electrical wire connections.
- 0.5–1.5 mm² conductor compatibility for a range of small-section electrical wires.
- Quick connection design helps reduce installation time compared with soldered connections.
- Suitable for joining or tapping compatible electrical conductors.
- Compact design for use in suitable electrical wiring assemblies.
- Pack of 50 connectors provides a convenient quantity for installation, repair and maintenance work.
Key Features
- Partex QS1 quick splice connector.
- 0.5–1.5 mm² supported conductor cross-sectional area.
- Quick splice connection design for compatible electrical wires.
- Mechanical connection method without soldering.
- Suitable for electrical wire joining and branch connection applications.
- Compact connector format for electrical installation and maintenance.
- Designed for use with appropriately sized conductors and suitable installation tools.
- Supplied in packs of 50 pieces.
Technical Specifications
- Manufacturer: Partex
- Series: QS Quick Splice Connectors
- Model: QS1
- Product type: Quick splice electrical connector
- Connector style: Quick splice
- Minimum conductor size: 0.5 mm²
- Maximum conductor size: 1.5 mm²
- Conductor size range: 0.5–1.5 mm²
- Connection method: Mechanical quick splice
- Application: Electrical wire joining and branch connections
- Pack quantity: 50 pieces
Convenient Electrical Wire Connections
Quick splice connectors such as the Partex QS1 are designed to simplify electrical wire connection tasks. They provide a practical alternative to traditional soldered joints in suitable applications, allowing compatible conductors to be connected using a mechanical splice mechanism. This can help reduce installation time during electrical assembly, wiring modifications and routine maintenance.
The QS1 is particularly useful where small-section conductors need to be joined or tapped into an existing wiring arrangement. Its 0.5–1.5 mm² conductor range makes it suitable for a variety of compatible wiring tasks. Installers should verify the conductor material, construction, insulation dimensions, electrical ratings and connection requirements before use, and ensure that the connector is installed according to the manufacturer's instructions.
Typical Applications
- Electrical wiring installation and modification.
- Industrial control equipment and compatible wiring assemblies.
- Electrical maintenance and repair work.
- Joining compatible small-section electrical conductors.
- Branch connections in suitable electrical circuits.
- OEM electrical equipment assembly and general wiring projects.
