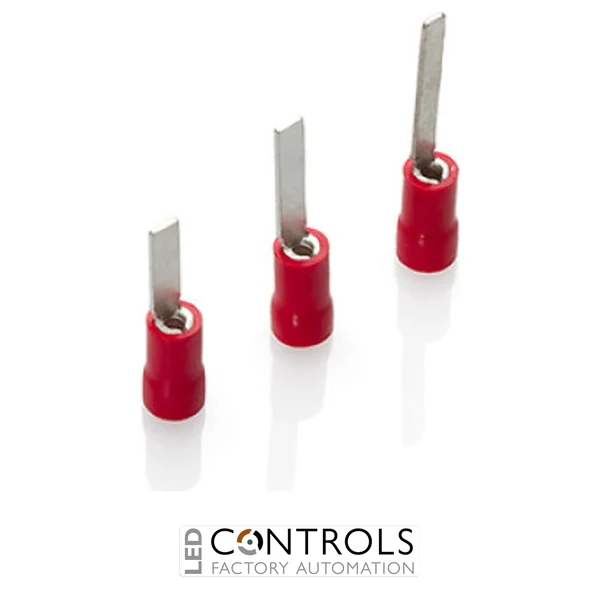

Why Choose the Partex RHBL3.0 Red Hooked Blade Terminal?
The Partex RHBL3.0 is a practical and reliable red insulated hooked blade terminal designed for terminating stranded electrical conductors in control panels, electrical equipment and industrial wiring installations. Featuring a 3.0 mm wide hooked blade, this terminal provides a convenient crimp connection for applications requiring a hooked blade contact profile.
The hooked blade design offers a useful alternative to straight blade terminals where the terminal shape is suited to the connection arrangement. Its red insulated sleeve provides visual identification and helps protect the conductor entry area, while the crimp termination enables a secure electrical connection when installed using the appropriate tooling.
Supplied in a pack of 100 terminals, the Partex RHBL3.0 is suitable for electrical installers, panel builders, maintenance engineers and equipment manufacturers requiring consistent, easy-to-identify insulated crimp terminals for routine wiring and assembly work.
Key Advantages
- 3.0 mm hooked blade terminal for compatible electrical connections.
- Red insulated sleeve for convenient terminal identification.
- Hooked blade profile provides an alternative to conventional straight blade terminations.
- Crimp connection supports dependable conductor termination when correctly installed.
- Suitable for electrical control panels, equipment wiring and maintenance applications.
- Pack of 100 supports efficient stock management and repeated installation work.
Key Features
- Partex insulated crimp terminal range.
- Hooked blade terminal design.
- 3.0 mm blade width.
- Red insulation colour.
- Crimp-style conductor connection.
- Insulated conductor entry section.
- Designed for use with suitable crimping tools.
- 100 terminals per pack.
Technical Specifications
- Manufacturer: Partex
- Part number: RHBL3.0
- Product type: Insulated hooked blade crimp terminal
- Terminal profile: Hooked blade
- Blade width: 3.0 mm
- Insulation colour: Red
- Termination method: Crimp
- Connection type: Hooked blade contact
- Pack quantity: 100 pieces
- Application: Electrical conductor termination
Reliable Electrical Connections for Control and Wiring Systems
Insulated blade terminals provide a convenient method of terminating conductors for compatible electrical connection points. The Partex RHBL3.0 uses a hooked blade configuration that can be useful where the shape of the contact assists with positioning at a suitable terminal connection. Correct crimping helps establish electrical continuity and mechanical retention between the conductor and terminal.
The red insulated sleeve supports straightforward identification during assembly and maintenance. For reliable installation, the terminal should be matched to the appropriate conductor size, compatible connection point and correctly sized crimping die. Connections should be made in accordance with the equipment manufacturer's requirements.
Typical Applications
- Industrial electrical control panel wiring.
- Electrical equipment assembly and maintenance.
- Compatible terminal block and connection point terminations.
- Machinery and automation control wiring.
- Electrical distribution and auxiliary control circuits.
- OEM equipment manufacturing and electrical installation work.
