Why Choose the Partex RP10 Red Insulated Pin Terminal?

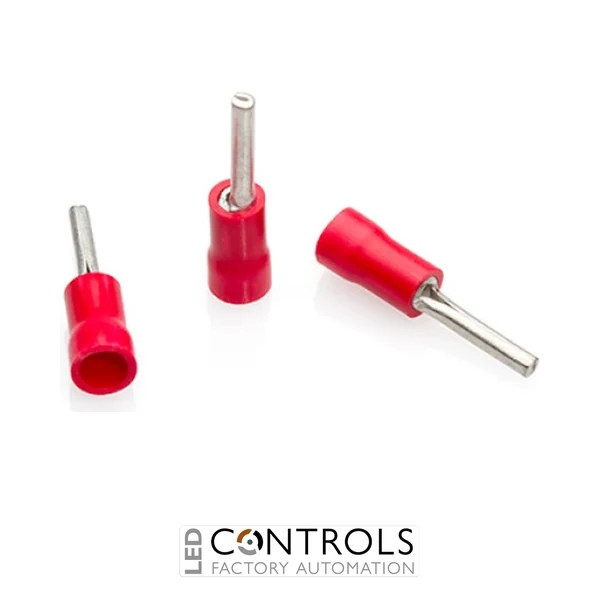

The Partex RP10 is a reliable red insulated pin crimp terminal designed for secure electrical conductor termination in control panels, terminal blocks and industrial wiring applications. Featuring a 12 mm pin length, this terminal provides a convenient method of connecting stranded electrical conductors to compatible screw-clamp and terminal block connections.
As part of the Partex insulated electrical terminal range, the RP10 combines a conductive metal pin with protective red insulation and a crimp-style conductor connection. Its straight pin configuration helps provide a neat, compact termination, particularly where stranded conductors need to be connected to electrical terminals designed to accept pin contacts.
The red insulated design provides convenient visual identification during wiring installation and maintenance. Supplied in a practical pack of 100 terminals, the Partex RP10 is suitable for electrical contractors, control panel builders, equipment manufacturers and industrial maintenance engineers requiring consistent cable termination solutions.
Key Advantages
- 12 mm pin length suitable for compatible electrical terminal connections.
- Red insulated construction supports easy identification during wiring installation.
- Crimp termination provides a secure mechanical connection when installed correctly.
- Straight pin design enables neat conductor termination in compatible terminal blocks.
- Helps prepare stranded conductors for connection to suitable screw-clamp terminals.
- Compact design supports efficient wiring in electrical control panels and equipment.
- Suitable for electrical installation, automation equipment and industrial maintenance.
- Supplied in a convenient pack of 100 terminals.
Key Features
- Partex RP10 insulated pin terminal.
- 12 mm nominal pin length.
- Red insulation colour.
- Straight pin contact configuration.
- Crimp-style conductor termination.
- Designed for use with appropriately sized stranded electrical conductors.
- Suitable for compatible screw-clamp and terminal block connections.
- Compact terminal format for electrical panel wiring.
- Installation using a suitable insulated terminal crimping tool.
- Pack quantity: 100 pieces.
Technical Specifications
- Manufacturer: Partex
- Product range: Insulated Pin Terminals
- Model: RP10
- Product type: Insulated pin crimp terminal
- Pin length: 12 mm
- Terminal configuration: Straight pin
- Insulation colour: Red
- Conductor termination: Crimp
- Connection type: Pin terminal for compatible terminal blocks and clamping connections
- Installation method: Crimp conductor termination
- Pack quantity: 100
- Application: Electrical wiring and conductor termination
Reliable Pin Terminations for Electrical Control Panels
Insulated pin terminals provide a practical solution for terminating stranded electrical conductors in compatible terminal blocks and electrical connectors. The Partex RP10 features a 12 mm straight pin designed to be inserted into a suitable terminal connection, allowing the conductor to be secured through the terminal's clamping mechanism.
For reliable installation, the conductor should be stripped to the appropriate length and crimped using a compatible crimping tool and die. The completed pin terminal should then be inserted into a terminal block or connector designed to accept its dimensions. Correct conductor sizing, crimping technique and terminal compatibility are essential for maintaining secure electrical connections.
Typical Applications
- Industrial electrical control panel wiring.
- Compatible screw-clamp terminal block connections.
- Electrical switchgear and distribution equipment wiring.
- Industrial machinery and automation systems.
- Electrical equipment manufacturing and assembly.
- Stranded conductor termination in control circuits.
- Maintenance and replacement of electrical cable terminations.
- OEM wiring harnesses and electrical panel assemblies.
