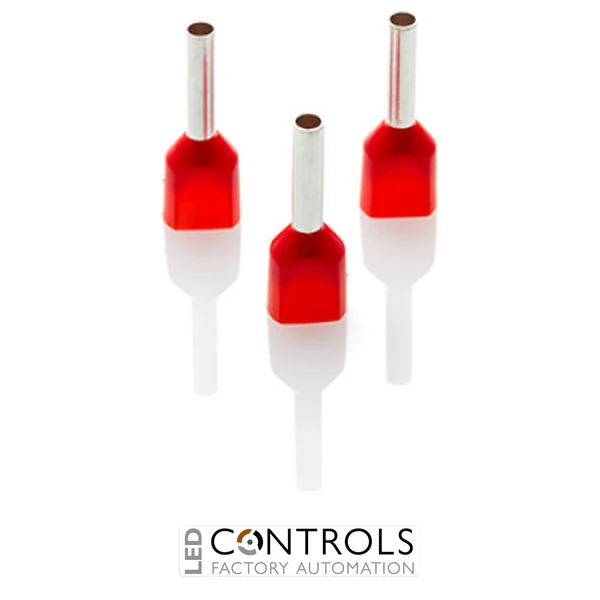

Why Choose the Partex TCEF110F-C Twin Insulated Cord End Ferrule?
The Partex TCEF110F-C is a twin insulated cord end ferrule designed to provide secure and organised terminations for two flexible electrical conductors within a single connection point. Featuring a 1 mm² conductor size, a 10 mm metal barrel length and a red insulated collar, this ferrule is ideal for professional electrical wiring, control panel assembly and industrial automation applications.
As part of the Partex range of electrical cable termination accessories, the TCEF110F-C helps improve the quality and consistency of connections made with stranded copper conductors. Its twin-entry construction allows two compatible wires to be inserted into one ferrule, helping maintain neat wiring arrangements and reducing the risk of loose conductor strands during installation.
Supplied in a convenient pack of 100 ferrules, the Partex TCEF110F-C is suitable for electrical contractors, control panel manufacturers and maintenance engineers requiring consistent cable terminations. The insulated collar supports conductor insertion and identification, while the crimpable metal barrel provides a compact termination when installed using a suitable ferrule crimping tool.
Key Advantages
- Twin-entry cord end ferrule designed for terminating two flexible conductors together.
- 1 mm² conductor size suitable for compatible stranded electrical wiring.
- 10 mm metal barrel length for compact terminal connections.
- Red insulated collar for convenient identification and conductor insertion.
- Helps prevent loose wire strands and supports consistent electrical terminations.
- Pack of 100 ferrules suitable for professional electrical installation and panel-building work.
Key Features
- Partex TCEF110F-C twin insulated cord end ferrule.
- 1 mm² nominal conductor cross-section per conductor.
- 10 mm crimp barrel length.
- Red insulated twin-entry collar.
- Designed to accommodate two compatible flexible conductors in one ferrule.
- Crimp termination for stranded copper electrical wires.
- Helps maintain neat and organised terminal connections.
- Suitable for installation using an appropriate twin ferrule crimping tool.
- 100 ferrules per pack.
Technical Specifications
- Manufacturer: Partex
- Model: TCEF110F-C
- Product type: Twin insulated cord end ferrule
- Ferrule configuration: Twin-entry
- Nominal conductor size: 2 × 1 mm²
- Barrel length: 10 mm
- Insulation colour: Red
- Termination method: Crimping
- Compatible conductor type: Flexible stranded copper wire
- Pack quantity: 100 ferrules
- Application: Electrical conductor termination and terminal block connections
Reliable Twin-Wire Termination for Electrical Control Panels
Twin insulated cord end ferrules are used to terminate two stranded electrical conductors together before insertion into a compatible terminal connection. The crimped metal barrel consolidates the conductor strands, helping create a consistent termination and reducing the likelihood of individual strands becoming displaced during wiring and maintenance.
The Partex TCEF110F-C combines a 10 mm barrel with a red insulated twin-entry collar to support efficient wiring of compatible 1 mm² conductors. It is particularly useful in industrial control panels, automation systems and electrical equipment where two wires must share an approved terminal connection. Correct crimping and terminal compatibility should always be verified before installation.
Typical Applications
- Industrial electrical control panel wiring.
- PLC and automation control system connections.
- Electrical terminal block conductor termination.
- Machinery control and instrumentation wiring.
- OEM electrical equipment manufacturing.
- Electrical maintenance, repairs and wiring upgrades.
