Why Choose the Partex TCEF110G-C Twin Insulated Cord End Ferrule?

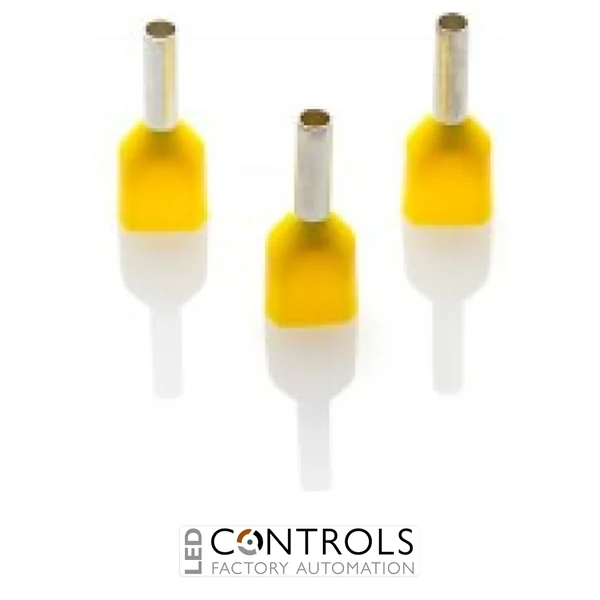

The Partex TCEF110G-C is a professional twin insulated cord end ferrule designed for terminating two flexible stranded copper conductors within a single electrical connection. Suitable for 2 × 0.75 mm² conductors, this yellow insulated twin ferrule features a 10 mm metal barrel length and is supplied in a convenient pack of 100.
As part of the Partex insulated cord end ferrule range, the TCEF110G-C provides a practical solution for electrical panel builders, automation engineers and maintenance technicians requiring consistent conductor preparation and termination. Its twin-entry design allows two appropriately sized flexible conductors to be inserted into one ferrule before crimping, helping maintain neat and organised wiring connections.
The yellow insulating collar assists with ferrule identification and conductor insertion, while the metal barrel is designed to consolidate stranded conductor ends when crimped using a compatible ferrule crimping tool. With a 10 mm barrel length, the TCEF110G-C is suitable for compatible terminal connections in electrical control panels, industrial machinery and automation equipment.
Key Advantages
- Professional twin insulated cord end ferrule for two 0.75 mm² conductors.
- Twin-entry design allows two flexible conductors to be terminated together.
- 10 mm metal barrel length for compatible electrical terminal connections.
- Yellow insulating collar supports identification and conductor insertion.
- Helps consolidate individual wire strands into a neatly crimped termination.
- Reduces the risk of loose or splayed conductor strands during terminal installation.
- Supports consistent conductor preparation in electrical control panels.
- Suitable for compatible screw-clamp and spring-clamp terminal connections.
- Designed for installation using an appropriate twin ferrule crimping tool.
- Supplied in a convenient pack of 100 ferrules.
- Useful for industrial automation, machinery wiring and electrical equipment assembly.
- Helps improve wiring organisation and simplify installation and maintenance.
Key Features
- Partex twin insulated cord end ferrule range.
- TCEF110G-C manufacturer part number.
- Twin conductor entry for two flexible stranded wires.
- Conductor size: 2 × 0.75 mm².
- Metal barrel length: 10 mm.
- Insulation colour: Yellow.
- Insulated entry collar for guiding conductors into the ferrule.
- Crimpable metal barrel for consolidating stranded copper conductors.
- Designed for use with compatible twin cord end ferrule crimping dies.
- Suitable for correctly sized electrical terminal connections.
- Provides a practical alternative to preparing two separate conductor ends where a shared termination is permitted.
- Pack quantity: 100 pieces.
Technical Specifications
- Manufacturer: Partex
- Product range: Twin Insulated Cord End Ferrules
- Model: TCEF110G-C
- Product type: Twin insulated bootlace ferrule
- Ferrule configuration: Twin conductor entry
- Number of conductors: 2
- Nominal conductor cross-section: 2 × 0.75 mm²
- Nominal cross-section per conductor: 0.75 mm²
- Metal barrel length: 10 mm
- Insulation colour: Yellow
- Conductor type: Flexible stranded copper conductors
- Termination method: Mechanical crimping
- Crimping equipment: Compatible twin ferrule crimping tool
- Packaging: Pack of 100
- Pack quantity: 100 ferrules
- Primary function: Termination of two flexible conductors within one ferrule
- Typical applications: Control panels, terminal blocks, automation equipment and machinery wiring
Reliable Twin-Conductor Terminations for Electrical Control Systems
Correct preparation of flexible stranded conductors is essential for achieving consistent electrical terminations. The Partex TCEF110G-C twin insulated cord end ferrule is designed to accommodate two 0.75 mm² flexible copper conductors in a single crimped connection, helping installers produce neat and repeatable wiring terminations.
The twin-entry insulating collar guides both conductors into the metal barrel before crimping. Once correctly compressed using an appropriate crimping tool, the barrel consolidates the conductor strands into a compact termination suitable for insertion into a compatible electrical terminal. This helps prevent stray wire strands and supports more orderly wiring arrangements.
Twin ferrules are particularly useful in electrical control panels and automation systems where two conductors must share a terminal connection, such as certain control circuit distribution and interconnection arrangements. However, the receiving terminal must be specifically suitable for the resulting ferrule dimensions and conductor configuration. The use of a twin ferrule does not automatically make every terminal suitable for two conductors.
The 10 mm barrel length should be matched to the terminal's conductor insertion depth, while the yellow insulating collar provides a readily distinguishable identification feature. For reliable results, conductors should be stripped to the appropriate length, fully inserted and crimped using tooling suitable for the ferrule size and twin-conductor arrangement.
Supplied in a pack of 100, the TCEF110G-C provides a convenient solution for panel builders, electrical contractors and industrial maintenance teams carrying out repeated conductor termination tasks.
Typical Applications
- Electrical control panel wiring and assembly.
- Termination of two 0.75 mm² flexible conductors.
- Industrial automation and PLC control circuits.
- Compatible terminal block connections.
- Machinery control and auxiliary wiring.
- Electrical equipment manufacturing.
- Control circuit distribution and interconnections.
- Instrumentation and signal wiring where suitable.
- OEM machine building and panel production.
- Electrical installation, servicing and refurbishment.
- Professional crimped wire termination applications.
