Why Choose the Partex TCEF1512G-C Twin Insulated Cord End Ferrule?

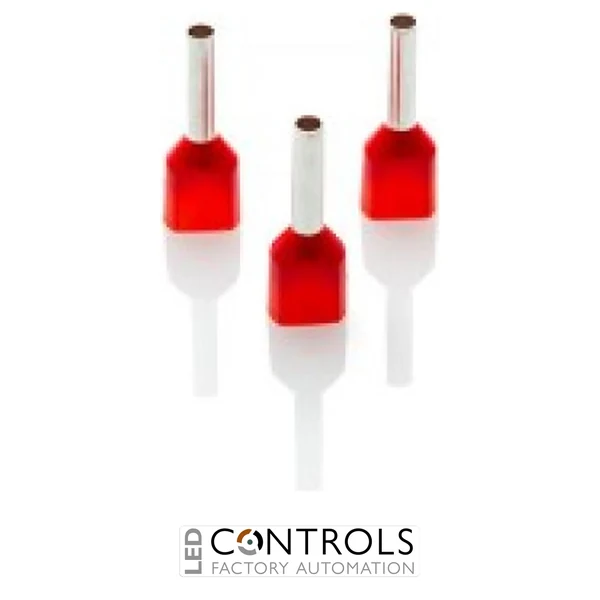

The Partex TCEF1512G-C is a twin insulated cord end ferrule designed for terminating two flexible stranded conductors together in a suitable electrical terminal. Featuring a 1.5 mm² conductor size, 12 mm barrel length and red insulated collar, this ferrule provides a practical solution for preparing reliable, organised electrical connections.
Twin cord end ferrules are particularly useful when two conductors need to be connected to a single terminal position. The Partex TCEF1512G-C uses a metal crimp barrel to contain the conductor strands, while its insulated collar helps guide the wires into the ferrule and provides a neat finish at the termination point.
Supplied in a pack of 100 ferrules, the TCEF1512G-C is suitable for electrical panel builders, industrial maintenance engineers, automation specialists and machine manufacturers. Its twin-wire configuration supports efficient wiring assembly, especially in control panels and electrical equipment where multiple conductors share an appropriately rated terminal connection.
Key Advantages
- Twin-wire design allows two suitable stranded conductors to be terminated together.
- 1.5 mm² conductor size for compatible twin-conductor applications.
- 12 mm metal barrel for crimp termination of prepared conductors.
- Red insulated collar provides a neat, identifiable termination finish.
- Helps contain individual wire strands during terminal insertion.
- Supports consistent electrical connections when correctly crimped.
- Useful for control panel wiring and industrial automation installations.
- Helps simplify wiring arrangements where two conductors share one terminal.
- Suitable for use with an appropriate twin-ferrule crimping tool.
- Pack of 100 supports repeated installation and maintenance work.
Key Features
- Partex TCEF1512G-C product reference.
- Twin insulated cord end ferrule.
- Designed for terminating two flexible stranded conductors.
- Nominal conductor size: 1.5 mm².
- Barrel length: 12 mm.
- Insulation colour: Red.
- Metal crimp barrel for conductor strand containment.
- Insulated entry collar for twin-wire insertion.
- Designed for crimp installation using suitable tooling.
- Suitable for compatible terminal blocks and electrical connections.
- Pack quantity: 100 ferrules.
Technical Specifications
- Manufacturer: Partex
- Product reference: TCEF1512G-C
- Product type: Twin insulated cord end ferrule
- Product category: Insulated Cord End Ferrules
- Ferrule configuration: Twin conductor
- Nominal conductor size: 1.5 mm²
- Barrel length: 12 mm
- Insulation colour: Red
- Termination method: Crimping
- Conductor type: Flexible stranded copper conductors
- Pack quantity: 100
- Primary function: Twin-wire conductor termination
- Application: Electrical control panels, terminal blocks and industrial wiring
Professional Twin-Wire Crimp Termination for Electrical Control Panels
Flexible stranded conductors require careful preparation to achieve secure and consistent terminal connections. The Partex TCEF1512G-C twin insulated cord end ferrule provides a dedicated crimp termination for two compatible 1.5 mm² conductors, helping prevent loose strands from spreading during insertion into a suitable terminal. The 12 mm barrel provides the conductor termination section, while the red insulated collar supports neat wire entry.
For installation, both conductors should be stripped to the appropriate length, fully inserted into the ferrule and crimped using a tool and die suitable for the twin-ferrule configuration. The completed termination should then be inserted into a terminal specifically approved for the combined conductor arrangement. Users should confirm the terminal's conductor capacity, ferrule compatibility and required tightening method before making the connection.
Typical Applications
- Electrical control panel wiring and assembly.
- Twin-conductor termination in compatible terminal blocks.
- Industrial automation and PLC control wiring.
- Machine building and OEM electrical equipment.
- Motor control and electrical distribution assemblies.
- Electrical cabinet wiring and refurbishment.
- Industrial maintenance and equipment repairs.
- Flexible stranded conductor preparation.
- Electrical installations requiring two conductors at one suitable terminal.
- Professional crimp termination and wiring assembly workshops.
