Why Choose the Partex TCEF1614G-C Twin Insulated Cord End Ferrule?

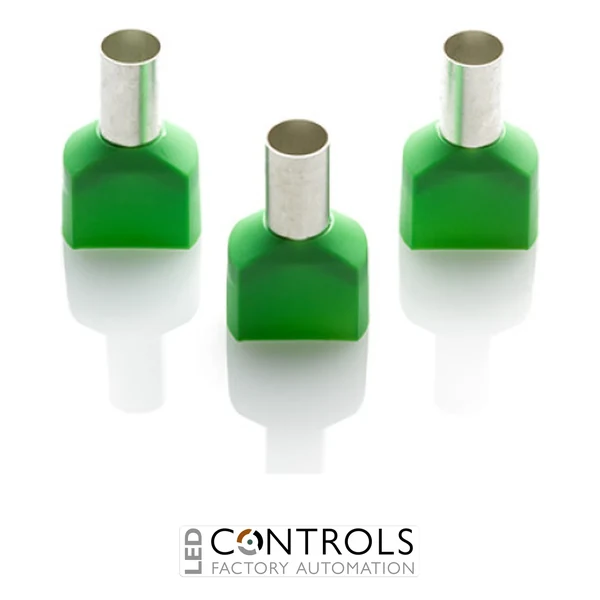

The Partex TCEF1614G-C is a professional green twin insulated cord end ferrule designed for terminating two flexible stranded copper conductors within a single electrical connection. Suitable for 2 × 16 mm² conductors, this twin bootlace ferrule features a 14 mm metal barrel length and is supplied in a convenient pack of 100 for electrical panel building, machinery wiring and industrial equipment assembly.
As part of the Partex twin insulated cord end ferrule range, the TCEF1614G-C provides a practical method of preparing larger flexible conductors for connection to compatible electrical terminals. Its twin-entry design accommodates two appropriately sized conductors within a single crimp barrel, helping consolidate the individual copper strands and create a neat, organised termination.
The green insulating collar helps guide conductors into the ferrule during assembly, while the 14 mm barrel provides a defined crimping and insertion length. Designed for use with suitable ferrule crimping equipment, the TCEF1614G-C supports consistent conductor preparation in electrical distribution assemblies, industrial control systems and machinery installations where the receiving terminal permits twin-conductor connections.
Key Advantages
- Twin conductor termination: Designed to accommodate two flexible copper conductors, each with a nominal cross-section of 16 mm².
- 14 mm metal barrel: Provides a defined termination length for compatible electrical terminals.
- Green insulated collar: Supports conductor insertion and identification during wiring assembly.
- Single crimped termination: Allows two appropriately sized conductors to be prepared together where the receiving terminal permits this configuration.
- Organised conductor preparation: Helps consolidate flexible wire strands and reduce the risk of stray strands during installation.
- Professional wiring finish: Supports consistent and tidy electrical connections in control panels and equipment assemblies.
- Suitable for larger conductors: Accommodates twin 16 mm² flexible conductor arrangements.
- Crimp-tool compatibility: Designed for installation using suitable twin ferrule crimping equipment.
- Convenient packaging: Supplied in a pack of 100 for repeated installation and maintenance tasks.
- Industrial versatility: Suitable for compatible power distribution, control equipment and machinery wiring applications.
Key Features
- Partex twin insulated cord end ferrule range.
- TCEF1614G-C manufacturer part number.
- Twin-entry construction for two flexible stranded conductors.
- Nominal conductor size: 2 × 16 mm².
- Metal barrel length: 14 mm.
- Insulation colour: Green.
- Insulated entry collar for guiding both conductors into the ferrule.
- Crimpable metal barrel for consolidating stranded copper conductors.
- Designed for use with compatible twin cord end ferrule crimping dies.
- Suitable for appropriately sized electrical terminal connections.
- Supports shared conductor termination where approved by the terminal manufacturer.
- Pack quantity: 100 pieces.
- Suitable for industrial electrical installation, assembly and maintenance.
Technical Specifications
- Manufacturer: Partex
- Product range: Twin Insulated Cord End Ferrules
- Model: TCEF1614G-C
- Product type: Twin insulated bootlace ferrule
- Ferrule configuration: Twin conductor entry
- Number of conductors: 2
- Nominal conductor cross-section: 2 × 16 mm²
- Nominal cross-section per conductor: 16 mm²
- Combined nominal conductor cross-section: 32 mm²
- Metal barrel length: 14 mm
- Insulation colour: Green
- Conductor type: Flexible stranded copper conductors
- Termination method: Mechanical crimping
- Required tooling: Compatible twin cord end ferrule crimping tool
- Pack quantity: 100 ferrules
- Primary function: Termination of two flexible conductors within one ferrule
- Typical applications: Electrical distribution equipment, industrial control panels, machinery wiring and compatible terminal connections
Reliable Twin-Conductor Terminations for Industrial Electrical Equipment
Correct preparation of larger flexible conductors is important for achieving consistent and maintainable electrical connections. The Partex TCEF1614G-C twin insulated cord end ferrule provides a practical solution for terminating two 16 mm² stranded copper conductors within a single crimped metal barrel, helping installers produce neat conductor ends for compatible electrical terminals.
The twin-entry insulating collar guides both conductors into the ferrule before crimping. Once the conductors have been stripped to the appropriate length and fully inserted, a compatible crimping tool compresses the metal barrel around the copper strands. Correct crimping helps keep the strands together and supports consistent positioning within the receiving terminal.
With a 14 mm barrel length, the TCEF1614G-C is intended for terminals with suitable insertion depth and connection geometry. The ferrule's overall crimped dimensions must also be compatible with the terminal opening and clamping mechanism. Because two 16 mm² conductors are being terminated together, the installer must verify that the receiving terminal is specifically approved for the resulting twin-ferrule arrangement.
The green insulated collar provides a recognisable identification feature during assembly, although ferrule collar colour should not be used as a substitute for conductor identification required by applicable wiring standards. The ferrule should be installed using the correct conductor preparation procedure, suitable crimping equipment and the terminal manufacturer's specified connection requirements.
Supplied in a pack of 100, the TCEF1614G-C is a practical choice for electrical panel builders, machinery manufacturers and maintenance engineers carrying out repeated twin-conductor termination work.
Typical Applications
- Industrial electrical control panel assembly.
- Termination of two 16 mm² flexible copper conductors.
- Electrical distribution equipment wiring.
- Compatible power and control terminal connections.
- Industrial machinery electrical assemblies.
- OEM electrical equipment manufacturing.
- Electrical cabinet and enclosure wiring.
- Machinery auxiliary power connections where suitable.
- Industrial electrical installation and refurbishment.
- Professional conductor preparation and crimping.
- Maintenance and replacement of compatible twin-ferrule terminations.
