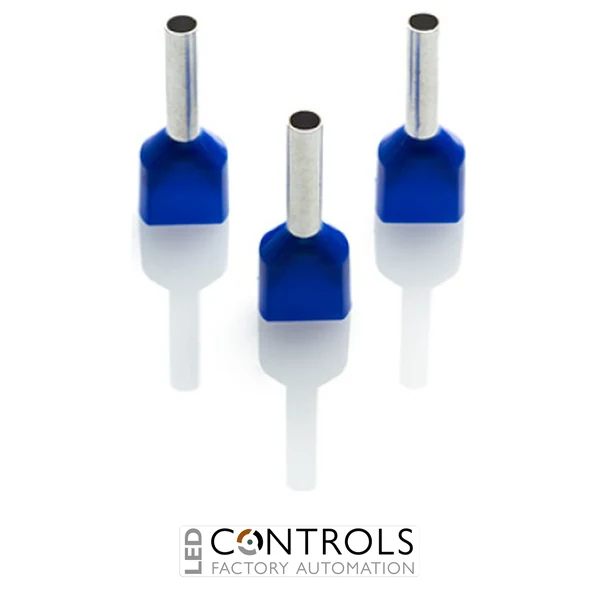

Why Choose the Partex TCEF2513F-C Twin Insulated Cord End Ferrule?
The Partex TCEF2513F-C is a high-quality twin insulated cord end ferrule (bootlace ferrule) designed to provide secure, professional terminations for two stranded copper conductors within a single electrical terminal. Manufactured for reliable electrical connections in industrial control panels, switchgear and automation equipment, this ferrule combines a conductive metal barrel with a colour-coded insulating sleeve for efficient cable identification and termination.
As part of the Partex TCEF twin cord end ferrule range, the TCEF2513F-C is designed to accommodate two 2.5 mm² conductors in one crimped connection. Its tin-plated copper barrel helps provide dependable electrical contact while protecting individual wire strands from damage or separation during installation. The insulated twin-entry collar guides both conductors into the ferrule, helping installers achieve neat, consistent and secure wiring connections.
Featuring a 13 mm barrel length, blue French-standard colour coding and an overall length of 21.5 mm, this long twin bootlace ferrule is particularly suitable for electrical panel building and industrial wiring applications. Supplied in a convenient pack of 100, the Partex TCEF2513F-C is an excellent choice for electricians, control panel manufacturers and maintenance engineers requiring professional cable termination accessories.
Key Advantages
- Designed for terminating two 2.5 mm² stranded conductors within a single terminal connection.
- 13 mm long crimp barrel provides an extended termination sleeve for suitable terminal applications.
- Blue insulated twin-entry collar follows the French colour identification system.
- Tin-plated high-conductivity copper construction supports reliable electrical connections.
- Helps prevent loose or separated wire strands when terminating flexible cables.
- Insulated collar provides convenient conductor entry and a neat, professional wiring finish.
- Suitable for industrial control panels, terminal blocks and electrical distribution equipment.
- Supplied in a practical pack of 100 ferrules for installation and maintenance work.
Key Features
- Partex TCEF twin insulated cord end ferrule series.
- 2 × 2.5 mm² conductor capacity for twin-wire termination.
- 13 mm metal barrel length.
- 21.5 mm overall length.
- Blue French-standard insulated sleeve.
- High-conductivity tin-plated copper terminal barrel.
- Insulated twin-entry design for accommodating two flexible conductors.
- Crimp termination suitable for use with an appropriately sized ferrule crimping tool.
- Designed for stranded copper conductors in electrical installations.
- 100 pieces per pack.
Technical Specifications
- Manufacturer: Partex
- Series: TCEF Twin Cord End Ferrules
- Model: TCEF2513F-C
- Product type: Twin insulated cord end ferrule / bootlace ferrule
- Ferrule configuration: Twin entry
- Conductor capacity: 2 × 2.5 mm²
- Number of conductors: 2
- Barrel length: 13 mm
- Overall length: 21.5 mm
- Barrel internal diameter: 2.8 mm
- Barrel external diameter: 3.2 mm
- Insulating collar dimensions: 4.2 × 7.8 mm
- Metal barrel wall thickness: 0.20 mm
- Insulation wall thickness: 0.30 mm
- Terminal material: High-conductivity tin-plated copper
- Insulation material: Polyamide 6.6
- Insulation colour: Blue
- Colour coding: French standard
- Termination method: Crimp connection
- Compatible conductor type: Flexible stranded copper wire
- Pack quantity: 100 pieces
Reliable Twin-Wire Termination for Electrical Installations
Twin insulated cord end ferrules are designed to terminate two flexible stranded conductors together before insertion into a compatible electrical terminal. By enclosing the stripped wire strands inside a common metal sleeve, the Partex TCEF2513F-C helps maintain conductor integrity and provides a consistent contact surface when correctly crimped and installed. This is particularly beneficial in industrial control systems where multiple conductors may need to share a terminal connection.
The 13 mm long copper barrel provides an extended crimping and contact section, while the blue insulated collar helps guide the conductors into the ferrule and supports organised panel wiring. For installation, both conductors should be stripped to the appropriate length, inserted fully into the ferrule and crimped using a suitable twin-ferrule crimping tool. The completed termination should only be fitted into terminals approved to accept two conductors of the relevant size.
Typical Applications
- Industrial electrical control panel wiring and assembly.
- PLC control cabinets and automation equipment.
- Terminal block connections requiring two stranded conductors.
- Electrical switchgear and distribution panel installations.
- Motor control centres and industrial machinery wiring.
- Building management and HVAC control systems.
- OEM machine building and electrical equipment manufacturing.
- Electrical maintenance, refurbishment and panel modifications.
