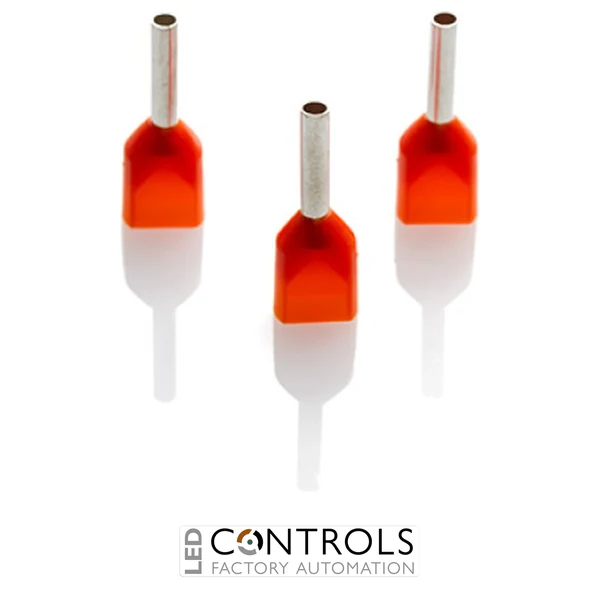

Why Choose the Partex TCEF508G-K Twin Insulated Cord End Ferrule?
The Partex TCEF508G-K is a professional twin insulated cord end ferrule designed for terminating two flexible electrical conductors within a single crimp connection. Part of the Partex cord end ferrule range, this orange insulated twin ferrule provides a practical solution for preparing stranded copper conductors for secure termination in electrical control panels, industrial machinery and automation systems.
Designed to accommodate two 0.5 mm² flexible conductors, the TCEF508G-K features an 8 mm metal barrel and an orange insulating collar. The twin-entry collar helps guide both conductors into the ferrule, while the metal sleeve allows the conductor strands to be consolidated through crimping with a suitable ferrule crimping tool.
Supplied in a convenient pack of 1,000 ferrules, the Partex TCEF508G-K is ideal for professional electrical installations requiring repeated conductor terminations. Its twin-entry configuration is particularly useful for connecting two conductors to a single compatible terminal, helping create organised and consistent wiring arrangements in industrial electrical equipment.
Key Advantages
- Professional twin insulated cord end ferrule for two flexible electrical conductors.
- 2 × 0.5 mm² conductor capacity for twin-wire terminations.
- 8 mm metal barrel length for compatible terminal connections.
- Orange insulating collar supports conductor insertion and identification.
- Twin-entry design allows two conductors to be crimped within one ferrule.
- Helps prevent individual conductor strands from spreading during termination.
- Supports consistent electrical connections when correctly crimped and installed.
- Pack of 1,000 ferrules suitable for high-volume panel building and electrical assembly.
Key Features
- Partex twin insulated cord end ferrule range.
- Manufacturer part number TCEF508G-K.
- Two-conductor ferrule configuration.
- 0.5 mm² nominal conductor cross-section per conductor.
- 8 mm crimp barrel length.
- Orange insulated entry collar.
- Metal crimp sleeve for consolidating flexible conductor strands.
- Designed for use with suitable ferrule crimping tools.
- Suitable for compatible terminal blocks and electrical connection devices.
- Supports professional wiring in electrical control panels and automation equipment.
- 1,000 ferrules per pack.
Technical Specifications
- Manufacturer: Partex
- Series: TCEF Twin Insulated Cord End Ferrules
- Model: TCEF508G-K
- Product type: Twin insulated cord end ferrule
- Nominal conductor cross-section: 2 × 0.5 mm²
- Conductor capacity: 2 flexible conductors
- Metal barrel length: 8 mm
- Insulation colour: Orange
- Connection method: Crimp termination
- Ferrule configuration: Twin entry
- Conductor type: Flexible stranded electrical conductors
- Pack quantity: 1,000 ferrules
- Product category: Insulated electrical wire ferrules
- Primary application: Twin-conductor termination in compatible electrical terminals
Reliable Conductor Termination for Industrial Control Systems
Insulated cord end ferrules are widely used in electrical installations to prepare flexible stranded conductors for termination in terminal blocks, control devices and electrical equipment. Crimping a ferrule onto the conductor ends consolidates the individual wire strands, helping provide a consistent termination surface and reducing the risk of loose strands during installation.
The Partex TCEF508G-K is specifically designed for applications requiring two 0.5 mm² conductors to be terminated together. Its twin-entry insulating collar accommodates both conductors, while the 8 mm crimp barrel provides a compact termination suitable for appropriately sized electrical terminals. The ferrule must be crimped using a compatible tool, and the receiving terminal must be approved for the combined conductor arrangement.
Typical Applications
- Industrial electrical control panel wiring.
- PLC input and output circuit connections.
- Machine building and OEM electrical assemblies.
- Electrical terminal block connections.
- Control cabinet wiring and conductor preparation.
- Industrial automation and instrumentation circuits.
- Electrical distribution and auxiliary control wiring.
- High-volume electrical panel manufacturing and maintenance.
