Why Choose the Partex UBFS32 M3 Flanged Spade Terminal?

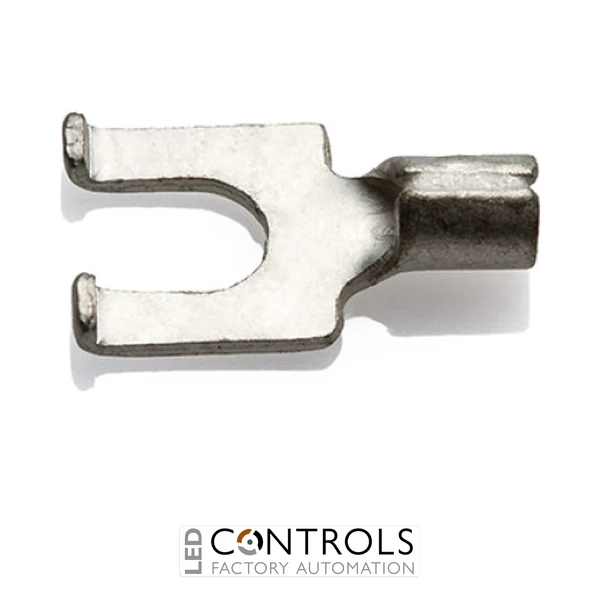

The Partex UBFS32 is a practical M3 flanged spade terminal (fork terminal) designed for terminating electrical conductors at compatible screw and stud connections. Featuring a fork-shaped connection with flanged construction, this terminal provides a convenient solution for electrical wiring, control panel assembly and industrial equipment maintenance.
As part of the Partex range of electrical cable termination accessories, the UBFS32 offers an efficient method of connecting prepared conductors to suitable M3 terminal screws. Its open-ended fork design allows the terminal to be positioned beneath a compatible screw head without completely removing the screw, helping simplify installation and maintenance where the connection arrangement permits.
Supplied in a convenient pack of 100 terminals, the Partex UBFS32 is suitable for electrical contractors, panel builders and equipment manufacturers requiring consistent cable termination components. The M3 fork connection and flanged design make it a useful accessory for electrical assemblies where organised and accessible screw-terminal connections are required.
Key Advantages
- M3 flanged spade terminal designed for compatible screw and stud connections.
- Fork-shaped terminal design allows convenient positioning beneath suitable terminal screws.
- Flanged construction provides a defined fork-terminal connection profile.
- Supports organised conductor termination in electrical equipment and control panels.
- Suitable for electrical installation, equipment assembly and maintenance applications.
- Pack of 100 terminals provides a convenient quantity for professional wiring projects.
Key Features
- Partex UBFS32 spade terminal.
- M3 nominal connection size.
- Flanged fork terminal configuration.
- Open-ended spade design for compatible screw-terminal connections.
- Designed for electrical conductor termination.
- Suitable for use in electrical control panels and equipment wiring assemblies.
- Supports efficient installation and replacement of suitable screw-terminal connections.
- Compatible with appropriately sized electrical conductors and termination equipment.
- 100 spade terminals per pack.
Technical Specifications
- Manufacturer: Partex
- Model: UBFS32
- Product type: Spade terminal / fork terminal
- Terminal configuration: Flanged fork
- Connection size: M3
- Connection type: Screw / stud terminal
- Termination application: Electrical conductor connection
- Pack quantity: 100 terminals
- Typical installation: Electrical control panels and equipment wiring assemblies
- Product category: Electrical cable terminals and connectors
Convenient Fork Terminal Connections for Electrical Wiring
Spade terminals, also known as fork terminals, are commonly used to connect electrical conductors to screw-type terminal points. Their open-ended design allows the fork to be positioned around a compatible screw or stud, providing a practical alternative to closed-ring terminals where installation access and terminal design permit.
The Partex UBFS32 features an M3 flanged fork configuration intended for suitable screw-terminal connections. It can be used in electrical control panels, machinery wiring and equipment assemblies where conductor connections need to be organised and accessible for installation or maintenance.
For dependable results, the terminal must be matched to the conductor size, connection hardware and electrical operating requirements. The conductor termination should be completed using the appropriate installation method and tooling, and the finished connection should be secured according to the equipment manufacturer's specifications.
Typical Applications
- Industrial electrical control panel wiring.
- Electrical equipment screw-terminal connections.
- Machinery and automation equipment wiring.
- Electrical distribution and control assemblies.
- OEM electrical equipment manufacturing.
- Electrical maintenance, repairs and component replacement.
- General-purpose conductor termination at compatible M3 connections.
