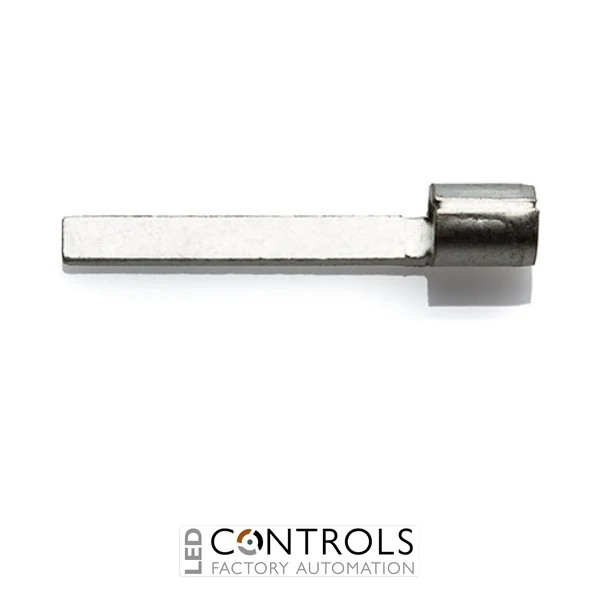

Why Choose the Partex UBPB63 Uninsulated Piggyback Terminals?
The Partex UBPB63 is a professional uninsulated piggyback electrical terminal designed for use with compatible 6.3 mm × 0.8 mm flat blade connections. Featuring a piggyback configuration, this terminal provides a practical way to connect a conductor while retaining an additional male blade connection point for a compatible female terminal. It is suitable for electrical panel assembly, machinery wiring and equipment maintenance applications.
Unlike a conventional female spade terminal, the Partex UBPB63 piggyback terminal combines a female receptacle connection with an additional male blade contact. This arrangement allows a compatible second connection to be made at the same terminal position, making it useful where electrical connections need to be extended or shared within a properly designed circuit.
Supplied in a convenient pack of 100 terminals, the UBPB63 is a practical choice for electrical engineers, control panel builders, OEM manufacturers and industrial maintenance professionals. Its 6.3 mm × 0.8 mm connection size corresponds to a commonly used flat blade terminal format, while its uninsulated construction is suitable for installations where appropriate electrical protection is provided separately.
Key Advantages
- Professional uninsulated piggyback terminals for electrical wiring and connection applications.
- 6.3 mm × 0.8 mm flat blade connection size for compatible electrical terminals.
- Piggyback design provides an additional male blade connection point.
- Combines female receptacle and male blade connection functions in one terminal.
- Supports practical connection arrangements where an additional terminal connection is required.
- Suitable for electrical equipment, control panels and machinery wiring.
- Pack of 100 terminals convenient for repetitive assembly and maintenance work.
- Useful for electrical contractors, panel builders, OEM manufacturers and maintenance engineers.
Key Features
- Partex UBPB63 uninsulated piggyback terminal.
- 6.3 mm nominal blade width.
- 0.8 mm nominal blade thickness.
- Piggyback connection arrangement for an additional compatible female terminal.
- Uninsulated construction without an integral insulating sleeve.
- Designed for use with compatible flat blade electrical connections.
- Suitable for professional conductor termination and equipment wiring.
- Supports compact electrical connection arrangements in suitable installations.
- Practical for electrical equipment assembly, servicing and replacement connections.
- 100 piggyback terminals per pack.
Technical Specifications
- Manufacturer: Partex
- Model: UBPB63
- Product type: Uninsulated piggyback terminal
- Terminal style: Piggyback / flat blade quick-disconnect
- Nominal blade width: 6.3 mm
- Nominal blade thickness: 0.8 mm
- Connection size: 6.3 mm × 0.8 mm
- Insulation: Uninsulated
- Connection configuration: Female receptacle with additional male blade
- Connection type: Push-on flat blade connection
- Pack quantity: 100 terminals
- Primary function: Conductor termination with provision for an additional compatible connection
- Typical applications: Electrical equipment, machinery wiring, control panels and maintenance
- Manufacturer part number: UBPB63
Flexible Piggyback Connections for Electrical Wiring
Piggyback terminals provide a convenient method of making an additional electrical connection at a compatible flat blade terminal point. Their combined female receptacle and male blade arrangement allows one terminal to connect to an existing blade while presenting another connection point for a suitable female receptacle. This can help simplify wiring layouts where the electrical design permits shared connections.
The Partex UBPB63 uses the widely recognised 6.3 mm × 0.8 mm flat blade format, making it suitable for use with matching terminal components. Its uninsulated construction allows installation within appropriately protected electrical assemblies. The terminal should be selected according to the conductor size, electrical load and mechanical requirements of the intended application.
For equipment manufacturers, electrical contractors and maintenance engineers, the 100-piece pack provides a practical supply for routine assembly and repair work. When using piggyback connections, it is important to confirm that the original terminal, added connection and associated wiring are all suitably rated for the resulting circuit load. Any exposed conductive parts must also receive appropriate protection against accidental contact and short circuits.
Typical Applications
- Electrical equipment wiring and assembly.
- Industrial machinery electrical connections.
- Control panel and electrical cabinet wiring.
- Compatible flat blade terminal connections.
- OEM equipment manufacturing and assembly.
- Electrical equipment servicing and maintenance.
- Machinery refurbishment and replacement connections.
- Low-voltage electrical control circuits where suitably rated.
- Applications requiring an additional compatible flat blade connection.
- Professional electrical wiring using 6.3 mm × 0.8 mm piggyback terminals.
