Why Choose the Partex UCEF1510 Uninsulated Cord End Ferrule?

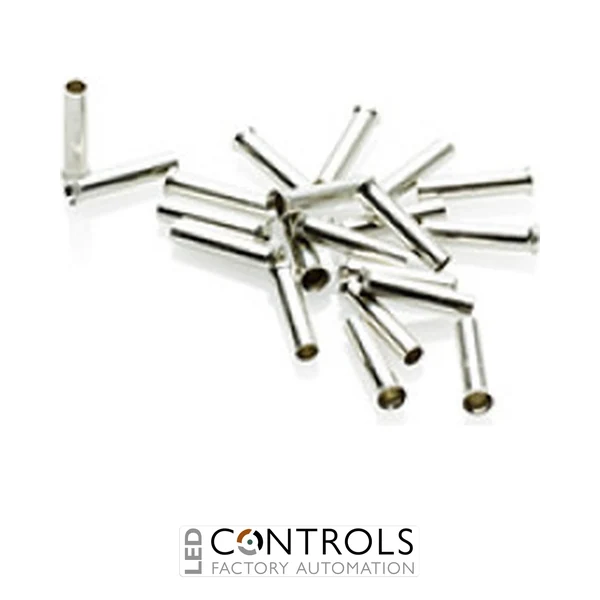

The Partex UCEF1510 is a professional uninsulated cord end ferrule designed for terminating flexible stranded copper conductors with a nominal cross-sectional area of 1.5 mm². Featuring a 10 mm metal barrel length, this ferrule provides a practical solution for preparing conductor ends for secure insertion into compatible electrical terminals in control panels, automation systems and industrial machinery.
As part of the Partex UCEF uninsulated cord end ferrule range, the UCEF1510 helps consolidate individual wire strands into a uniform termination. When correctly crimped using suitable tooling, its tubular metal barrel helps prevent loose conductor strands and supports consistent wire insertion into compatible terminal connections.
The uninsulated design provides a compact termination without an integral plastic collar, making the UCEF1510 suitable for applications where insulation is provided separately by the receiving terminal or electrical assembly. Its 1.5 mm² conductor capacity and 10 mm barrel make it a practical choice for electrical contractors, control panel builders, automation engineers and industrial maintenance professionals.
Key Advantages
- Professional uninsulated cord end ferrule for flexible stranded copper conductors.
- Designed for a 1.5 mm² nominal conductor cross-section.
- 10 mm metal barrel length for compatible electrical terminal connections.
- Helps consolidate individual conductor strands into a uniform crimped termination.
- Uninsulated construction provides a compact profile without a plastic entry collar.
- Helps reduce the risk of loose strands during conductor insertion.
- Supports neat, consistent conductor preparation in electrical control panels.
- Suitable for use with appropriately sized cord end ferrule crimping tools.
- Practical for electrical installation, panel manufacturing and industrial maintenance.
Key Features
- Partex UCEF uninsulated cord end ferrule series.
- UCEF1510 manufacturer part number.
- 1.5 mm² nominal conductor capacity.
- 10 mm metal crimp barrel length.
- Uninsulated tubular construction without an integral insulating sleeve.
- Designed for terminating a single flexible stranded conductor.
- Metal barrel helps contain individual wire strands after crimping.
- Suitable for professional crimp termination using compatible tooling.
- Supports organised wiring and consistent conductor preparation.
- Useful for control panel assembly, industrial automation and equipment maintenance.
Technical Specifications
- Manufacturer: Partex
- Series: UCEF Uninsulated Cord End Ferrules
- Model: UCEF1510
- Product type: Uninsulated cord end ferrule
- Nominal conductor cross-section: 1.5 mm²
- Metal barrel length: 10 mm
- Insulation: Uninsulated
- Ferrule configuration: Single-conductor tubular ferrule
- Termination method: Crimping
- Suitable conductor type: Flexible stranded copper conductor
- Primary function: Conductor strand consolidation and terminal preparation
- Typical applications: Electrical control panels, automation systems and industrial machinery
- Manufacturer part number: UCEF1510
Professional Conductor Termination for Reliable Electrical Connections
Flexible stranded conductors are widely used in electrical control panels, automation equipment and machinery because they are convenient to route and install. However, individual conductor strands can separate during termination if they are not prepared correctly. Uninsulated cord end ferrules provide a practical method of containing these strands within a crimped metal sleeve, helping create a consistent conductor end for suitable electrical connections.
The Partex UCEF1510 is designed for 1.5 mm² flexible stranded copper conductors and features a 10 mm barrel length. This combination is useful for wiring applications where a compatible terminal accepts a ferrule of this conductor size and insertion length. Its collarless design also offers a compact termination profile for installations where a plastic insulating sleeve is not required.
For best results, the conductor should be stripped to the appropriate length, fully inserted into the ferrule and crimped using a suitable tool and die. The completed termination should be inspected before installation. Engineers should also verify that the receiving terminal is approved for ferrule use and that the ferrule dimensions, conductor size and electrical protection arrangements are suitable for the application.
Typical Applications
- Electrical control panel conductor termination.
- Industrial automation and PLC cabinet wiring.
- Machine building and OEM electrical assemblies.
- Industrial machinery and equipment connections.
- Electrical distribution and control equipment.
- Motor control and auxiliary wiring circuits.
- Termination of 1.5 mm² flexible stranded copper conductors.
- Compatible screw-clamp and other approved terminal connections.
- Electrical equipment servicing and maintenance.
- Professional wire preparation requiring a 10 mm uninsulated ferrule barrel.
