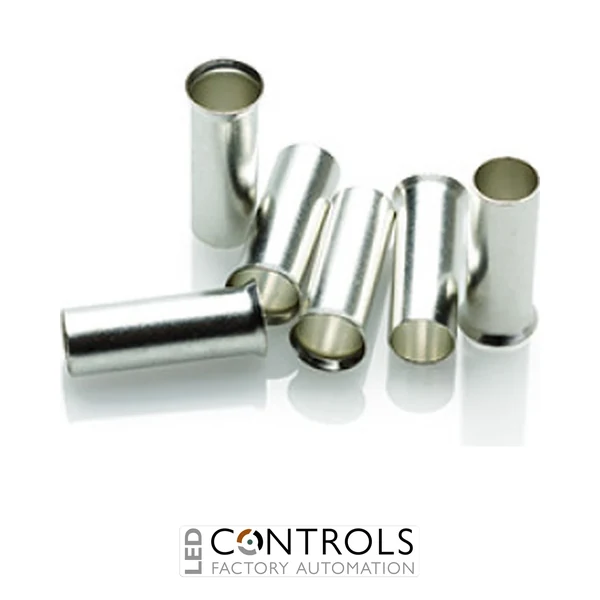

Why Choose the Partex UCEF1618 Uninsulated Cord End Ferrule?
The Partex UCEF1618 is a professional uninsulated cord end ferrule (bootlace ferrule) designed to provide secure and reliable terminations for flexible stranded copper conductors. Featuring a 16 mm² conductor capacity and an 18 mm metal barrel length, this ferrule is suitable for electrical control panels, industrial machinery and power distribution equipment where dependable cable connections are essential.
As part of the Partex UCEF uninsulated cord end ferrule series, the UCEF1618 provides a practical method of preparing stranded conductors for connection into compatible electrical terminals. Its conductive metal sleeve encloses the individual wire strands, helping prevent strand separation and providing a consistent contact surface when correctly crimped. The uninsulated design makes it suitable for installations where a separate insulating collar is not required or where insulation is provided by the terminal assembly.
With its 16 mm² conductor capacity and 18 mm long crimp barrel, the Partex UCEF1618 is particularly useful for terminating larger flexible copper conductors in industrial electrical installations. Its compact tubular construction supports neat, organised wiring and straightforward insertion into compatible terminal blocks, electrical connectors and control equipment.
Key Advantages
- Professional uninsulated bootlace ferrule for secure stranded copper conductor termination.
- 16 mm² conductor capacity suitable for larger flexible electrical cables.
- 18 mm metal barrel length provides an extended termination sleeve for compatible terminals.
- Conductive metal construction supports reliable electrical contact.
- Helps prevent individual conductor strands from spreading or becoming damaged during termination.
- Uninsulated tubular design provides a compact connection without an additional plastic collar.
- Suitable for industrial control panels, electrical distribution systems and machinery wiring.
- Supports consistent, professional cable preparation and electrical installation practices.
Key Features
- Partex UCEF uninsulated cord end ferrule series.
- 16 mm² nominal conductor cross-sectional area.
- 18 mm metal barrel length.
- Single-entry tubular ferrule for one stranded copper conductor.
- Uninsulated design without a plastic identification collar.
- Conductive metal sleeve designed for crimp termination.
- Suitable for use with an appropriately sized ferrule crimping tool.
- Helps maintain conductor strand integrity during installation.
- Designed for compatible terminal blocks and electrical connection equipment.
- Suitable for industrial electrical installation, panel assembly and maintenance.
Technical Specifications
- Manufacturer: Partex
- Series: UCEF Uninsulated Cord End Ferrules
- Model: UCEF1618
- Product type: Uninsulated cord end ferrule / bootlace ferrule
- Conductor cross-sectional area: 16 mm²
- Barrel length: 18 mm
- Ferrule configuration: Single entry
- Number of conductors: 1
- Terminal construction: Conductive metal sleeve
- Insulation: Uninsulated
- Termination method: Crimp connection
- Compatible conductor type: Flexible stranded copper conductor
- Typical application: Electrical cable termination
Reliable Uninsulated Cable Termination for Industrial Electrical Systems
Uninsulated cord end ferrules are designed to prepare flexible stranded conductors for insertion into compatible electrical terminals. The Partex UCEF1618 encloses the stripped end of a 16 mm² copper conductor within a conductive metal sleeve, helping maintain strand alignment and reducing the risk of loose strands during connection. When correctly crimped, the ferrule provides a consistent termination surface for suitable terminal blocks and electrical connectors.
The 18 mm barrel length provides an extended metal sleeve for conductor insertion and crimping. For correct installation, the cable insulation should be stripped to the appropriate length without damaging the conductor strands. The conductor should then be inserted fully into the ferrule and crimped using a suitable tool and die designed for 16 mm² ferrules. The completed termination should be inspected before insertion into an approved electrical terminal. As the UCEF1618 is uninsulated, appropriate electrical insulation and protection must be provided wherever required by the installation.
Typical Applications
- Industrial electrical control panel wiring and assembly.
- Power distribution equipment and electrical cabinets.
- Motor control centres and industrial machinery connections.
- Terminal block connections for flexible copper conductors.
- PLC cabinets and industrial automation systems.
- Electrical switchgear and control equipment.
- OEM electrical equipment manufacturing and assembly.
- Electrical maintenance, refurbishment and cable replacement.
