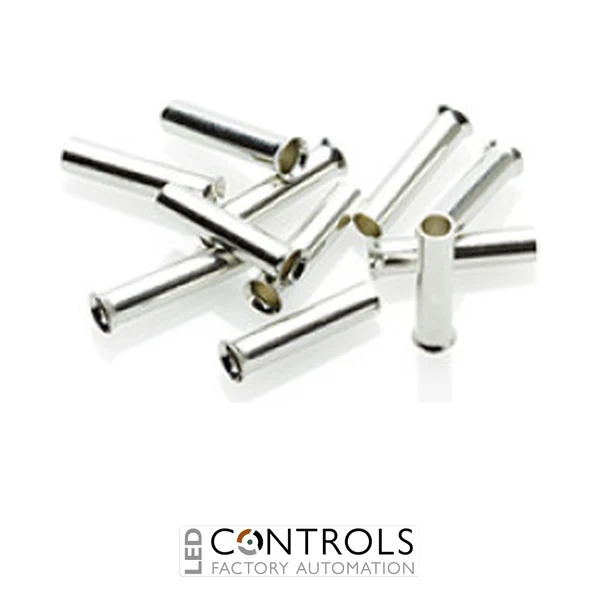

Why Choose the Partex UCEF2512 Uninsulated Cord End Ferrule?
The Partex UCEF2512 is a professional uninsulated cord end ferrule (bootlace ferrule) designed to provide secure, consistent electrical terminations for flexible stranded copper conductors. Featuring a 2.5 mm² conductor capacity and a 12 mm metal barrel length, this ferrule is suitable for industrial control panels, electrical distribution equipment and automation installations where dependable cable connections are essential.
As part of the Partex UCEF uninsulated cord end ferrule series, the UCEF2512 provides a practical method of preparing stranded copper conductors for connection into compatible electrical terminals. Its tubular metal sleeve encloses individual conductor strands, helping prevent loose strands and providing a consistent termination surface when correctly crimped. The absence of a plastic insulating collar allows a compact termination profile, making it useful where installation space is limited.
With its 2.5 mm² conductor capacity and 12 mm long crimp barrel, the Partex UCEF2512 is well suited to electrical panel building, machinery wiring and general industrial cable termination. Its uninsulated construction provides a straightforward solution for preparing flexible conductors for secure insertion into compatible screw, spring-clamp and other approved terminal connections.
Key Advantages
- Professional uninsulated bootlace ferrule for reliable stranded copper conductor termination.
- 2.5 mm² conductor capacity suitable for common industrial control and electrical wiring applications.
- 12 mm metal barrel length provides an extended termination sleeve for compatible terminals.
- Conductive metal construction supports consistent electrical contact.
- Helps prevent individual wire strands from spreading or becoming damaged during installation.
- Compact uninsulated design eliminates the additional bulk of a plastic insulating collar.
- Suitable for industrial control panels, terminal blocks and electrical automation equipment.
- Supports neat, organised and professional cable preparation and termination.
Key Features
- Partex UCEF uninsulated cord end ferrule series.
- 2.5 mm² nominal conductor cross-sectional area.
- 12 mm metal barrel length.
- Single-entry tubular ferrule for one stranded copper conductor.
- Uninsulated construction without a plastic identification collar.
- Conductive metal sleeve designed for secure crimp termination.
- Suitable for use with an appropriately sized ferrule crimping tool.
- Helps maintain conductor strand alignment during installation.
- Designed for compatible electrical terminal blocks and connectors.
- Suitable for industrial electrical installation, panel assembly and maintenance.
Technical Specifications
- Manufacturer: Partex
- Series: UCEF Uninsulated Cord End Ferrules
- Model: UCEF2512
- Product type: Uninsulated cord end ferrule / bootlace ferrule
- Conductor cross-sectional area: 2.5 mm²
- Barrel length: 12 mm
- Ferrule configuration: Single entry
- Number of conductors: 1
- Terminal construction: Conductive metal sleeve
- Insulation: Uninsulated
- Termination method: Crimp connection
- Compatible conductor type: Flexible stranded copper conductor
- Typical application: Electrical cable termination
Reliable Uninsulated Cable Termination for Industrial Electrical Systems
Uninsulated cord end ferrules provide a dependable method of preparing flexible stranded conductors for connection into compatible electrical terminals. The Partex UCEF2512 encloses the stripped end of a 2.5 mm² copper conductor within a tubular metal sleeve, helping maintain conductor strand integrity and reducing the risk of loose strands during installation. When correctly crimped, the ferrule provides a uniform termination profile for suitable terminal blocks and electrical connectors.
The 12 mm barrel length provides an extended sleeve for conductor insertion and crimping. For correct installation, the conductor insulation should be stripped to the appropriate length without damaging the individual wire strands. The conductor should then be inserted fully into the ferrule and crimped using a suitable tool and die designed for 2.5 mm² cord end ferrules. The completed termination should be inspected before installation into a compatible electrical terminal. As the UCEF2512 is uninsulated, appropriate electrical insulation and protection must be provided wherever required by the installation.
Typical Applications
- Industrial electrical control panel wiring and assembly.
- PLC cabinets and industrial automation systems.
- Electrical terminal block connections.
- Motor control centres and machinery wiring.
- Electrical switchgear and distribution equipment.
- Building management and HVAC control systems.
- OEM electrical equipment manufacturing and assembly.
- Electrical maintenance, refurbishment and cable replacement.
