Why Choose the Partex UCEF412 Uninsulated Cord End Ferrule?

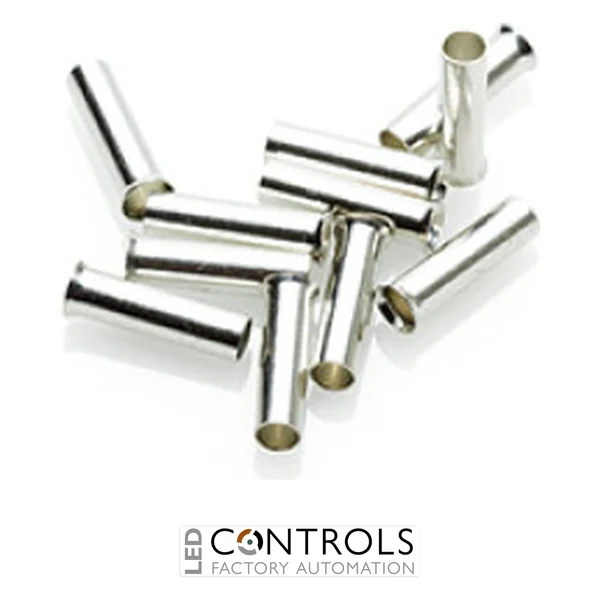

The Partex UCEF412 is a professional uninsulated cord end ferrule designed for terminating flexible stranded copper conductors with a nominal cross-sectional area of 4 mm². Featuring a 12 mm metal barrel length, this bootlace ferrule provides a practical solution for preparing conductor ends before insertion into compatible electrical terminals, helping achieve neat, consistent and professionally finished wiring connections.
Part of the Partex UCEF uninsulated cord end ferrule range, the UCEF412 is designed to consolidate individual copper strands into a compact crimped termination. Its collar-free construction makes it suitable for applications where an uninsulated ferrule is preferred or specified, including electrical control panels, industrial machinery and power distribution equipment.
The combination of a 4 mm² conductor capacity and 12 mm barrel length makes the UCEF412 a practical choice for electrical installers, panel builders and maintenance engineers. When installed using a suitable ferrule crimping tool, it helps prevent stray conductor strands, supports consistent conductor preparation and facilitates insertion into appropriately sized electrical terminals.
Key Advantages
- 4 mm² conductor compatibility: Designed for flexible stranded copper conductors with a nominal cross-section of 4 mm².
- 12 mm metal barrel: Provides a defined termination length for compatible terminal connections.
- Uninsulated construction: Suitable for installations requiring a ferrule without a plastic insulating collar.
- Neat conductor preparation: Helps consolidate individual copper strands into a compact crimped termination.
- Reduced stray strands: Correct crimping helps prevent loose strands from spreading during terminal installation.
- Compact collar-free design: Useful where terminal entry geometry or installation requirements favour uninsulated ferrules.
- Consistent crimping results: Supports repeatable conductor preparation when used with suitable tools.
- Professional wiring finish: Helps maintain organised electrical control panel and machinery wiring.
- Versatile terminal applications: Suitable for appropriately rated screw-clamp and spring-clamp terminals where ferrules are permitted.
- Simple installation: Designed for mechanical crimping using compatible cord end ferrule equipment.
- Industrial suitability: Practical for electrical distribution, automation, machinery assembly and maintenance work.
Key Features
- Partex UCEF uninsulated cord end ferrule range.
- UCEF412 manufacturer part number.
- Uninsulated bootlace ferrule construction.
- Nominal conductor cross-section: 4 mm².
- Metal barrel length: 12 mm.
- Single-conductor termination configuration.
- Crimpable metal barrel for consolidating flexible copper strands.
- Collar-free design without additional plastic insulation.
- Designed for flexible stranded copper conductors.
- Compatible with suitable ferrule crimping dies and tools.
- Supports neat conductor insertion into appropriately sized electrical terminals.
- Suitable for professional electrical installation, equipment assembly and maintenance.
Technical Specifications
- Manufacturer: Partex
- Product range: UCEF Uninsulated Cord End Ferrules
- Model: UCEF412
- Product type: Uninsulated cord end ferrule
- Alternative description: Uninsulated bootlace ferrule
- Ferrule configuration: Single conductor
- Number of conductors: 1
- Nominal conductor cross-section: 4 mm²
- Metal barrel length: 12 mm
- Insulation: Uninsulated, without plastic collar
- Conductor type: Flexible stranded copper
- Termination method: Mechanical crimping
- Required tooling: Compatible cord end ferrule crimping tool
- Primary function: Flexible conductor end termination
- Typical applications: Electrical control panels, terminal blocks, industrial machinery and power distribution wiring
Reliable Uninsulated Conductor Terminations for Industrial Electrical Installations
Correct preparation of flexible stranded conductors is important for achieving consistent electrical connections. The Partex UCEF412 uninsulated cord end ferrule provides a practical method of preparing 4 mm² copper conductors for connection to compatible electrical terminals. Its crimpable metal barrel helps consolidate individual conductor strands, creating a compact termination that can be inserted into an appropriately sized terminal opening.
Unlike insulated cord end ferrules, the UCEF412 does not incorporate a plastic entry collar. This uninsulated design can be useful where installation space is restricted or where the terminal manufacturer specifies a collar-free ferrule. However, the ferrule itself does not provide additional electrical insulation, so the completed installation must maintain the required clearances, insulation and protection against accidental contact.
During installation, the conductor should be stripped to a length appropriate for the 12 mm barrel and the receiving terminal's requirements. The exposed copper strands are inserted fully into the ferrule before the barrel is compressed using a compatible crimping tool. A correctly formed crimp helps retain the strands and produces a consistent conductor end for terminal insertion.
The receiving terminal must be suitable for a 4 mm² conductor fitted with an uninsulated ferrule of the resulting crimped dimensions. Installers should follow the terminal manufacturer's instructions regarding ferrule suitability, insertion depth, conductor preparation and tightening torque where applicable. The ferrule does not increase the current-carrying capacity of the conductor or the electrical rating of the terminal.
The Partex UCEF412 is particularly useful for electrical panel builders, machinery manufacturers and industrial maintenance engineers requiring repeatable conductor preparation across control equipment, terminal assemblies and electrical distribution installations.
Typical Applications
- Termination of 4 mm² flexible stranded copper conductors.
- Industrial electrical control panel wiring.
- Compatible screw-clamp terminal block connections.
- Compatible spring-clamp terminal connections.
- Electrical distribution and control equipment wiring.
- Industrial automation and machinery connections.
- Motor control and auxiliary circuit wiring where suitable.
- Electrical cabinet and enclosure assembly.
- OEM electrical equipment manufacturing.
- Industrial machinery maintenance and refurbishment.
- Professional conductor preparation and crimping.
- Commercial and industrial electrical installations.
