Why Choose the Partex UCEF50025 Uninsulated Cord End Ferrule?

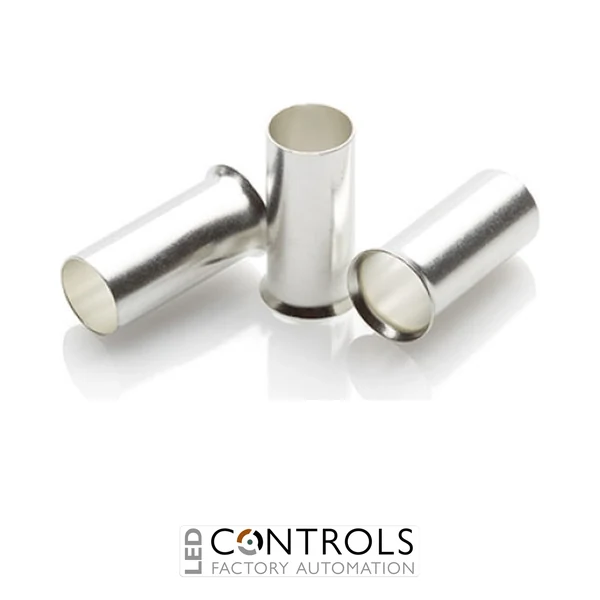

The Partex UCEF50025 is a professional uninsulated cord end ferrule designed for terminating flexible stranded copper conductors in industrial electrical installations. Featuring a 50 mm² nominal conductor cross-section and a 25 mm metal barrel length, this ferrule provides a practical solution for preparing larger electrical conductors before connection to compatible terminal blocks, switchgear and electrical distribution equipment.
As part of the Partex range of electrical cable termination accessories, the UCEF50025 helps consolidate individual conductor strands into a compact, organised termination. Its uninsulated construction eliminates the plastic entry collar found on insulated ferrules, making it suitable for applications where the receiving terminal provides the necessary electrical insulation and protection.
The Partex UCEF50025 50 mm² cord end ferrule is particularly useful in electrical distribution assemblies, industrial control panels, motor control equipment and machinery wiring. Its 25 mm crimp barrel provides an extended metal sleeve for conductor preparation, supporting consistent and secure crimped terminations when installed using appropriate tooling.
Key Advantages
- 50 mm² nominal conductor size for compatible flexible stranded copper cables.
- 25 mm metal barrel length for applications requiring an extended ferrule sleeve.
- Uninsulated construction suitable for electrical terminals where an insulating collar is unnecessary.
- Helps consolidate individual copper strands and reduce stray strands at electrical connections.
- Supports consistent conductor preparation when correctly crimped using suitable equipment.
- Suitable for industrial power distribution, electrical control panels and machinery wiring.
- Collarless design provides a practical termination option for compatible terminal arrangements.
Key Features
- Partex UCEF50025 uninsulated cord end ferrule.
- 50 mm² nominal conductor cross-section.
- 25 mm metal crimp barrel.
- Single-conductor ferrule configuration.
- Uninsulated construction without a plastic entry collar.
- Designed for flexible stranded copper conductor termination.
- Suitable for crimping with appropriately sized ferrule crimping equipment.
- Supports organised conductor connections in electrical distribution and industrial equipment.
- Suitable for compatible terminal blocks and other approved electrical terminal connections.
Technical Specifications
- Manufacturer: Partex
- Model: UCEF50025
- Product type: Uninsulated cord end ferrule
- Ferrule configuration: Single conductor
- Nominal conductor cross-section: 50 mm²
- Barrel length: 25 mm
- Insulation: Uninsulated
- Compatible conductor type: Flexible stranded copper wire
- Termination method: Crimping
- Application: Electrical conductor preparation and terminal connections
- Product category: Cord end ferrules
Reliable 50 mm² Conductor Termination for Industrial Power and Control Systems
Uninsulated cord end ferrules are designed to prepare flexible stranded electrical conductors for installation in compatible terminal connections. By enclosing individual copper strands within a crimped metal sleeve, they help maintain an organised conductor end and reduce the likelihood of loose strands interfering with neighbouring connections.
The Partex UCEF50025 combines a 50 mm² conductor size with a 25 mm barrel length, making it suitable for electrical installations where these dimensions match the conductor and receiving terminal. Its uninsulated construction is particularly useful in applications where the terminal assembly provides the required insulation and a plastic ferrule collar is not needed.
For dependable installation, the conductor should be stripped to the appropriate length and inserted fully into the ferrule before crimping. A compatible crimping tool and die must be selected for the 50 mm² ferrule. The completed termination should be inspected for correct crimping and installed only in terminals approved for the conductor size, ferrule dimensions and electrical operating conditions.
Typical Applications
- Industrial electrical distribution and switchgear assemblies.
- Electrical control panel power wiring.
- Motor control centres and industrial drive equipment.
- Industrial machinery and electrical equipment connections.
- Compatible high-capacity terminal block connections.
- OEM electrical equipment manufacturing.
- Electrical enclosure assembly and conductor preparation.
- Industrial electrical maintenance, repair and refurbishment.
