Why Choose the Partex UCEF510 Uninsulated Cord End Ferrule?

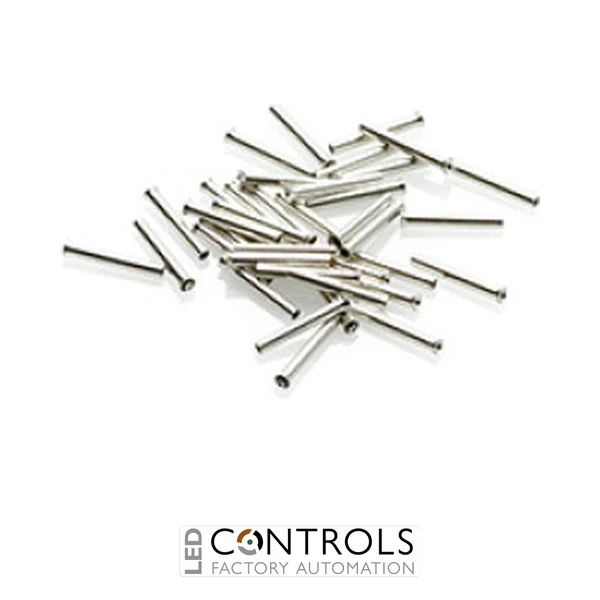

The Partex UCEF510 is a professional uninsulated cord end ferrule designed for terminating flexible stranded copper conductors in electrical installations. Featuring a 0.5 mm² nominal conductor size and a 10 mm metal barrel length, this ferrule provides a practical solution for preparing conductors before connection to compatible terminal blocks and electrical equipment.
As part of the Partex range of electrical cable termination accessories, the UCEF510 helps consolidate individual wire strands into a compact, organised termination. Its uninsulated construction makes it suitable for applications where an insulated collar is not required and where the terminal arrangement provides the necessary electrical insulation and protection.
The 10 mm crimp barrel supports consistent conductor preparation in industrial control panels, automation equipment and instrumentation wiring. Designed for use with an appropriately sized crimping tool, the Partex UCEF510 helps electricians, panel builders and maintenance technicians achieve neat, repeatable cable terminations.
Key Advantages
- 0.5 mm² conductor compatibility for suitable flexible stranded copper wires.
- 10 mm barrel length for compact electrical conductor termination.
- Uninsulated design suitable for applications that do not require an insulated ferrule collar.
- Helps consolidate individual conductor strands and reduce stray strands at terminal connections.
- Supports consistent crimped connections when installed with compatible tooling.
- Suitable for industrial control panels, automation systems and electrical equipment wiring.
- Compact construction supports organised wiring in space-constrained electrical assemblies.
Key Features
- Partex UCEF510 uninsulated cord end ferrule.
- 0.5 mm² nominal conductor size.
- 10 mm metal crimp barrel.
- Single-conductor ferrule configuration.
- Uninsulated construction without a plastic entry collar.
- Designed for flexible stranded copper conductors.
- Crimp termination using a suitably sized ferrule crimping tool.
- Suitable for compatible terminal block and equipment connections.
- Useful for professional electrical installation, panel assembly and maintenance work.
Technical Specifications
- Manufacturer: Partex
- Model: UCEF510
- Product type: Uninsulated cord end ferrule
- Ferrule configuration: Single conductor
- Nominal conductor cross-section: 0.5 mm²
- Barrel length: 10 mm
- Insulation: Uninsulated
- Conductor type: Flexible stranded copper wire
- Termination method: Crimping
- Application: Conductor preparation and electrical terminal connections
- Product category: Cord end ferrules
Reliable Conductor Termination for Electrical Control and Automation Systems
Uninsulated cord end ferrules are commonly used to prepare flexible stranded electrical conductors for connection to compatible screw-clamp and other approved terminal arrangements. By consolidating individual copper strands into a crimped metal sleeve, a correctly installed ferrule helps maintain an organised conductor end and reduces the likelihood of loose strands during termination.
The Partex UCEF510 is designed for a 0.5 mm² flexible conductor and features a 10 mm barrel. Its uninsulated construction can be useful in compact electrical assemblies where a plastic collar would be unnecessary or unsuitable for the available terminal space.
For dependable installation, the conductor should be stripped to the appropriate length, inserted fully into the ferrule and crimped using a tool and die suitable for the ferrule size. The completed termination must be compatible with the receiving terminal, and the installation must provide the necessary insulation, electrical clearances and mechanical protection.
Typical Applications
- Industrial electrical control panel wiring.
- PLC and automation system conductor termination.
- Instrumentation and signal wiring.
- Electrical terminal block connections.
- Industrial machinery and equipment assembly.
- OEM electrical equipment manufacturing.
- Compact electrical enclosures and control assemblies.
- Electrical installation, maintenance and repair work.
